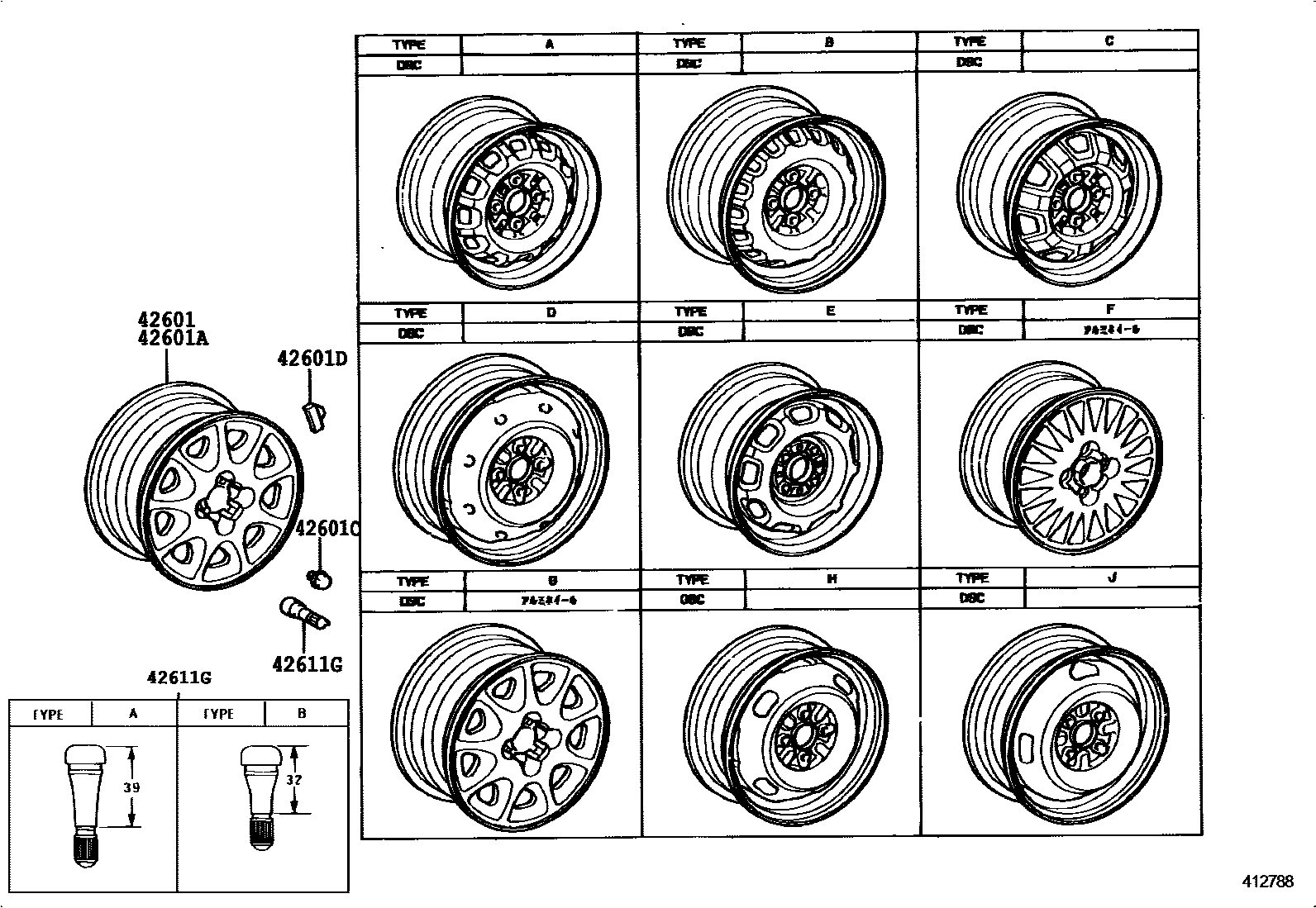

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-12760-01iAE91,EE90..TX198708-198805

sub42611-12760

main42611-12760-01iAE91,EE90..XE198705-198808

sub42611-12760

main42611-12760-01iAE91,EE90..XE198708-198808

sub42611-12760

main42611-12760-01iAE91,EE90..XE198708-198808

sub42611-12760

main42611-12760-01iAE91,EE90..FXD,FXL198805-198808

sub42611-12760

main42611-12760-01iAE91,EE90..FXD,FXL198805-198808

sub42611-12760

main42611-12760-01iCE90..DX;AE91,EE90..DX,TX198705-198708

sub42611-12760

main42611-12760-01iAE91,EE90..FXD,FXL198705-198805

sub42611-12760

main42611-12760-01iAE91,CE90,EE90..DX198708-198805

sub42611-12760

main42611-12760-03iAE91,CE90,EE90..(3FC,4F,5F)..DX198808-198905

sub42611-12760

main42611-12760-03iAE91,CE90,EE90..(3FC,4F,5F)..DX198808-198905

sub42611-12760

main42611-12760-03iAE91,CE90,EE90..(3FC,4F,5F)..DX198808-198905

sub42611-12760

main42611-12760-03iAE91,EE90..XE198808-198905

sub42611-12760

main42611-12760-03iAE91,CE90,EE90..(3FC,4F,5F)..DX198905-199205

sub42611-12760

main42611-12760-03iAE91..FXL198905-199205

sub42611-12760

main42611-12760-03iAE91..FXL198905-199205

sub42611-12760

main42611-12760-03iEE97..DX,GL;CE97..5F..DX198808-199004

sub42611-12760

main42611-12760-03iAE91,EE90..TX198905-199004

sub42611-12760

main42611-12760-03iAE91,EE90..TX199004-199205

sub42611-12760

main42611-12820-03iAE91..LT;AE91..(FXG,G)..CBR198705-199109

sub42611-12820

main42611-12820-03iAE91..FXG,G198705-198808

sub42611-12820

main42611-12840iAE92198705-198811

main42611-12840-03iAE92..GT198811-198905

sub42611-12840

main42611-12840-03iAE92..FXGT198811-198905

sub42611-12840

main42611-12850iAE91,95,CE90,95..(FXG,FXV,FXZI,G,LT,SE)..(CBR,DSL,EFI)198705-199205

main42611-12850iAE91..SE..EFI199005-199106

main42611-12880iAE91..SE..EFI199005-199106

main42611-12880iAE91,92..FXGT,FXZI,GT198705-199205

main42611-13050iEE96,98198708-198712

main42611-13050-03iEE96,98..DX,GL198712-198908

sub42611-13050

main42611-13050-03iEE96..STD198712-199109

sub42611-13050

main42611-13050-03iEE96..STD198908-199109

sub42611-13050

main42611-13070iCE96198708-198712

main42611-13070-03iCE96..STD198908-199109

sub42611-13070

main42611-13070-03iCE96..STD198908-199109

sub42611-13070

main42611-13070-03iEE96..DX..02S198708

sub42611-13070

main42611-13070-03iCE96..DX,GL198712-198908

sub42611-13070

main42611-13070-03iCE96..DX,GL198712-198908

sub42611-13070

main42611-1A060-01iAE92..GT198905-199108

sub42611-1A060

main42611-1A060-01iAE91..5D..EFIS198905-199205

sub42611-1A060

main42611-1A060-01iAE91..5D..EFIS198905-199108

sub42611-1A060

main42611-1A060-01iAE91..SE..EFI199004-199108

sub42611-1A060

main42611-1A060-01iAE91..SE198905-199004

sub42611-1A060

main42611-1A080iAE92..FXGT198901

main42611-1A090iAE95..SE,XE198905-198908

main42611-20300iAE91,95,CE90..FXZI,G,SE198705-198805

main42611-20300-03iAE91..FXG..EFI;AE91,95,CE90,95,EE90..(FXV,FXZI,G,SE,XE)..(CBR,DSL,EFI)198805-199205

sub42611-20300

main42611-20410-03iCE90,97..4FC..(DX,GL,L,TX);AE95,CE90,95,97..5F..(GL,L,TX)198705-199109

sub42611-20410

42601AWHEEL, DISC (FOR SPARE)

main42611-12760-01iEE97;CE97..DX198708-198808

sub42611-12760

main42611-12760-03iEE97..L198808-199109

sub42611-12760

main42611-12760-03iEE97..L198808-199109

sub42611-12760

main42611-12850iAE95,CE95..SE198710-199106

main42611-13050iEE96,98198708-198712

main42611-13050-03iEE96..STD198908-199109

sub42611-13050

main42611-13050-03iEE96..STD198712-199109

sub42611-13050

main42611-13050-03iEE96..STD198712-198908

sub42611-13050

main42611-13070iCE96198708-198712

main42611-13070-03iCE96..STD198712-198908

sub42611-13070

main42611-13070-03iCE96..STD198712-198908

sub42611-13070

main42611-13070-03iCE96..STD198908-199109

sub42611-13070

main42611-13070-03iCE96..STD198908-199109

sub42611-13070

main42611-16200iAE91,92,CE90,EE90198705-199205

main42611-17040iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199205

sub42611-1A330

main42611-1A010iAE95,CE95198710-199106

main42611-20300iAE95..SE198710-198805

main42611-20300-03iAE95,CE95..SE,XE198805-199106

sub42611-20300

main42611-20410-03iAE95,CE95,97..(L,TX)..(DSL,EFI)198708-199109

sub42611-20410

main42611-20410-03iCE97..5F..GL;CE97..4FC..(DX,GL);AE95..(TX,XE)..CBR198708-199109

sub42611-20410

42601CNUT, HUB (FOR AXLE)

main90942-01007iCE97,EE97..GL;CE90..DX,SE,TX;AE9#,EE90..DX,FXD,FXGT,FXL,FXZI,GT,SE,TX,XE198705-199205

main90942-01007iAE91,95,CE90,95..XE199101-199109

main90942-01021iAE91..3FC..XE198705-199205

main90942-01033iAE95,CE95..SE198705-199205

main90942-01058iAE91,92..FXGT,FXZI,GT198705-199205

main90942-01059iCE97..DX;EE97..DX,L;CE96,EE96,98198708-199109

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iAE9#,CE9#,EE9#198705-199205

main90942-03020iAE9#,CE9#,EE9#198705-199205

main90942-03022iAE9#,CE9#,EE9#198705-199205

main90942-03025iAE9#,CE9#,EE9#198705-199205

main90942-03027iAE9#,CE9#,EE9#198705-199205

main90942-03029iAE9#,CE9#,EE9#198705-199205

main90942-03031iAE9#,CE9#,EE9#198705-199205

main90942-03041iAE9#,CE9#,EE9#198705-199205

main90942-03098iAE9#,CE9#,EE9#198705-199205

main90942-03099iAE9#,CE9#,EE9#198705-199205

main90942-03100iAE9#,CE9#,EE9#198705-199205

main90942-03101iAE9#,CE9#,EE9#198705-199205

main90942-03102iAE9#,CE9#,EE9#198705-199205

main90942-03108iAE9#,CE9#,EE9#198705-199205

main90942-03109iAE9#,CE9#,EE9#198705-199205

main90942-03119iAE91..SE..EFI198705-199205

main90942-03120iAE91..EFIS198705-199205

main90942-03121iAE91..SE..EFI198705-199205

main90942-03122iAE91..SE..EFI198705-199205

main90942-03123iAE92198705-199205

main90942-03124iAE92198705-199205

main90942-03125iAE91..SE..EFI198705-199205

main90942-03126iAE92198705-199205

main90942-03127iAE91..EFIS198705-199205

main90942-03128iAE91..SE..EFI198705-199205

main90942-03129iAE91..SE..EFI198705-199205

main90942-03130iAE91..EFIS198705-199205

main90942-03131iAE92198705-199205

main90942-03132iAE92198705-199205

main90942-03133iAE91..SE..EFI198705-199205

main90942-03146iCE90..SE198705-199205

main90942-03147iAE91,CE90..FXG,FXZI,G,SE198705-199205

main90942-03148iAE91..SE..EFI198705-199205

main90942-03149iAE95..SE198705-199205

main90942-03150iAE95..SE198705-199205

main90942-03151iCE90..SE198705-199205

main90942-03152iCE90..SE198705-199205

main90942-03153iAE91..SE..EFI198705-199205

main90942-03154iAE91..SE..EFI198705-199205

main90942-03155iAE91..SE..EFI198705-199205

main90942-03156iAE91..(3D,5D,WG)..(4FC,5F)..(CBR,EFI)198705-199205

main90942-03157iAE95,CE95..SE198705-199205

main90942-03158iCE90..SE198705-199205

main90942-03159iCE90..SE198705-199205

main90942-03160iCE90..SE198705-199205

main90942-03161iAE9#,CE9#,EE9#198705-199205

main90942-03163iAE91..EFIS198705-199205

main90942-03167iAE91..(3D,5D,WG)..(4FC,5F)..(CBR,EFI)198705-199205

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004iAE91..LT198908-199109

TYPE A

main90942-05009iAE9#,CE9#,EE9#198705-199205

TYPE B

5 parts on this diagram · 3 diagrams in section
