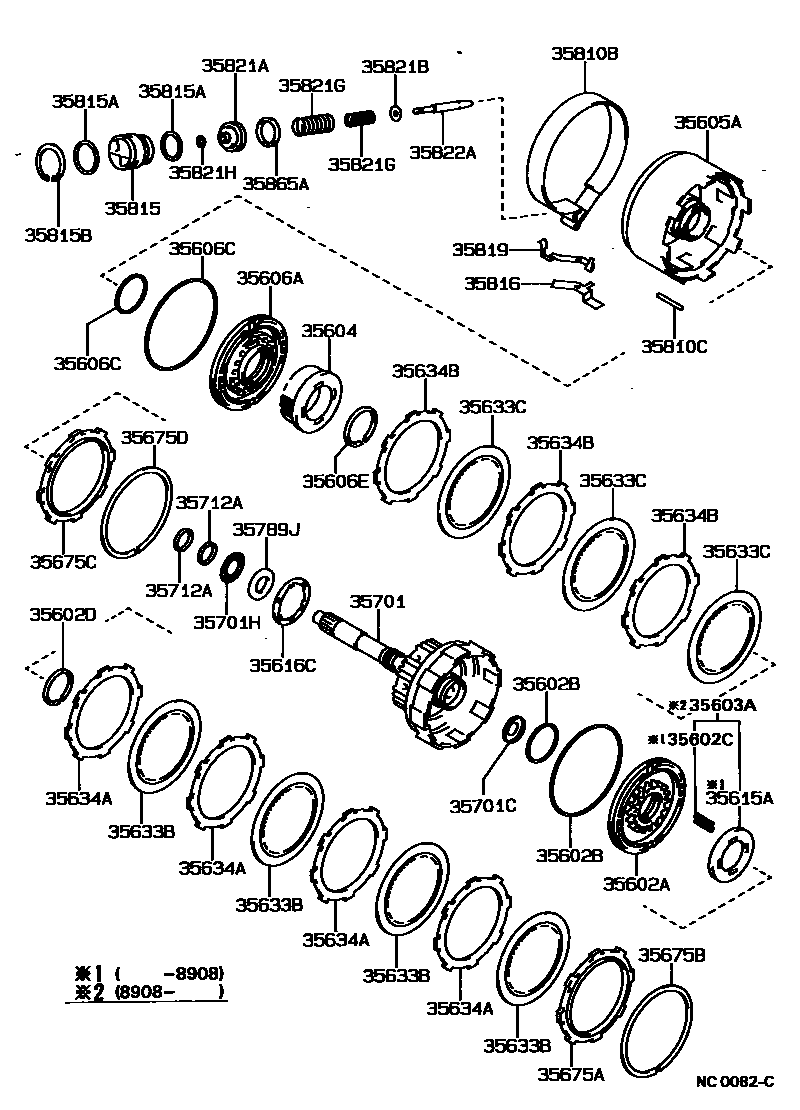

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-32020iAE9#,CE9#,EE90,98..ATM198705-198812

sub35602-32021

main35602-32021iAE9#,CE9#,EE90,98..ATM198812-198908

main35602-32050iAE9#..ATM198908-199205

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-46002iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

main90301-99016iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35602CSPRING, COMPRESSION (FOR FORWARD CLUTCH PISTON RETURN)

main90501-11007iAE9#,CE9#,EE90,98..ATM198705-198908

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-44001iAE9#..ATM198705-199205

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-32020iAE9#,CE90,96,97,EE90,98..ATM198908-199101

main35603-32030iAE9#,CE90,96,97,EE90,96,98..ATM199002-199205

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-32010iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-20010iAE91..ATM198705-199005

sub35370-20H00

sub35370-20H01

main35605-20020iEE90,98..3FC199001-199205

main35605-32031iAE92..4FC198705-199005

sub35370-32H00

sub35370-32H01

main35605-32040iAE91,CE90..ATM..(CBR,DSL)198705-198803

sub35605-20010

main35605-32060iAE92..4FC199005-199205

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-20010iAE9#,CE90,96,97,EE90,96,98..ATM198908-199205

main35606-32020iAE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE)198705-198908

sub35606-20010

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-57188iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

main90301-99016iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-52002iAE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE)198705-199205

35615ASEAT, FORWARD CLUTCH PISTON RETURN SPRING

main35615-32010iAE9#,CE9#,EE90,98..ATM198705-198908

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-32021iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-10020iAE91..4FC198705-199112

main35633-12040iAE91,CE9#..ATM..(DX,FXL,GL,L)199106-199205

main35633-32050iAE92,95..4FC199003-199205

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35633-10020iEE90,96,98..3FC198705-199109

main35633-20030iAE91,95,CE90,96,97..ATM199101-199205

sub35633-20031

main35633-32031iAE92..4FC198705-199205

sub35633-32032

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-32010iAE92,95..4FC..EFI198705-199205

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-32010iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35675AFLANGE, FORWARD CLUTCH

main35635-50030iEE90,96,98..3FC;AE91,CE90,96,97..4FC199101-199205

sub35635-30060

main35635-50040iEE90,96,98..3FC;AE9#,CE90,96,97..4FC199101-199205

sub35635-30070

main35675-12010iAE9#..ATM199101-199205

sub35675-12060

main35675-17010iEE90,96,98..3FC;AE9#,CE90,96,97..4FC199101-199205

sub35675-12040

main35675-32010iAE91..4FC..SE..EFI;AE92,95,CE96,EE90,98..ATM;AE91..ATM..(DX,FXL,FXZI,TX,XE)198705-199205

sub35675-12050

main35675-32020iAE9#,CE90,EE90..ATM198705-199103

sub35675-32061

main35675-32060iEE90,96,98..3FC;AE91,CE90,96,97..4FC199101-199205

sub35675-32020

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90521-99001iAE9#..ATM198705-199205

35675CFLANGE, DIRECT CLUTCH

main35675-12010iEE90,96,98..3FC198705-199109

sub35675-12060

main35675-32010iAE9#,CE9#,EE96,98..ATM198705-199205

sub35675-12050

main35675-32020iAE91,CE9#,EE96,98..ATM198705-199202

sub35675-32061

main35675-32030iAE92..4FC198705-199205

sub35675-12020

main35675-32060iAE91..ATM199202-199205

sub35675-32020

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90521-99001iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35701SHAFT SUB-ASSY, INPUT

main35701-32021iCE90..4FC;AE91,CE96,97,EE90,96,98..ATM..(CTD,DX,FXL,GL,L,TX,XE)198705-199205

sub35701-12070

main35701-32031iAE9#..4FC198705-199205

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-32040iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-28005iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35712ARING, INPUT SHAFT OIL SEAL

main35712-32010iAE9#..ATM198705-199205

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-32010iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35810BBAND ASSY, 2ND COAST BRAKE

main35810-32020iAE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE)198705-199205

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90250-07001iAE91,EE90,98..3FC198705-199205

35815COVER, 2ND COAST BRAKE

main35815-32010iAE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE)198705-199205

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-41002iAE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE)198705-199205

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-53001iAE9#,CE90,96,EE90,98..ATM..(DX,FXG,FXGT,FXL,G,GL,GT,SE,TX,XE)198705-199205

35816RETAINER, BRAKE BAND GUIDE PLATE

main35816-12010iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35819PLATE, 2ND COAST BRAKE BAND GUIDE

main35819-12010iAE91,EE90,96,98..3FC198705-199205

main35819-12020iAE9#,CE90,96,97..4FC198705-199205

35821APISTON, 2ND COAST BRAKE

main35821-32010iAE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE)198705-199205

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-20051iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

main90501-26024iAE9#,EE90..ATM..(FXGT,FXL,FXZI,GT,TX,XE)198705-199205

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35822AROD, 2ND COAST BRAKE PISTON

main35822-32010iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

main35822-32020iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-32010iAE9#,EE90..ATM..(FXGT,FXL,GT,TX,XE)198705-199205

38 parts on this diagram · 1 diagram in section
