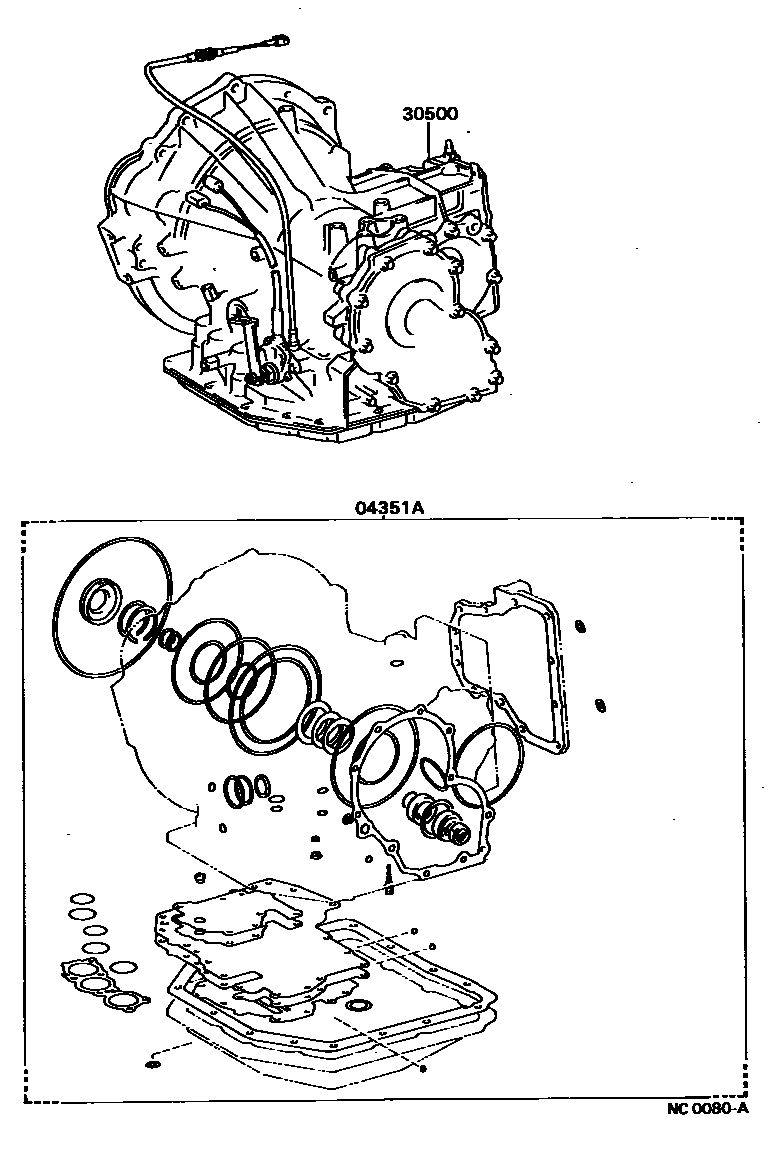

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A131L,A132L 0002 1A240L,A240E,A241L,A241H

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10030iEE98..3FC198705-199203

main04351-12050iAE91..3FC198705-199205

main04351-12060iAE92..4FC198705-199205

main04351-12070iAE95..4FC198710-199106

main04351-20060iAE91..4FC198705-199205

main04351-20070iCE90,96,97..4FC198705-199109

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12210iEE90..3FC198705-198905

sub30500-12211

main30500-12230iAE91..3FC198705-198905

sub30500-12231

main30500-12250iAE91..4FC..CBR198705-198908

main30500-12260iAE91..4FC..EFI198705-199205

main30500-12270iAE92..4FC198705-198905

main30500-12281iCE90,97..4FC198705-198905

sub30500-12282

sub91651-41022

main30500-12290iEE98..3FC198708-198908

sub30500-12291

main30500-12301iCE96..4FC198708-198908

sub30500-12302

sub91651-41022

main30500-12311iAE95..4FC198710-198905

main30500-12360iAE91..4FC..EFI198905-198908

sub30500-12260

main30500-12410iAE91..4FC..EFIS198905-199205

main30500-12490iAE91..3FC198905-199205

sub30500-12491

main30500-12550iEE90..3FC198905-199203

sub30500-12551

main30500-12590iEE98..3FC198908-199203

sub30500-12591

main30500-12620iAE92..4FC198905-199205

main30500-12630iCE90..4FC198905-198908

main30500-12631iCE90,97..4FC198908-199202

sub30500-12632

sub11355-64061

sub90119-06670

main30500-12641iCE96..4FC198908-199202

sub30500-12642

sub11355-64061

sub90119-06670

main30500-12680iEE96..3FC199006-199203

sub30500-12681

2 parts on this diagram · 2 diagrams in section
