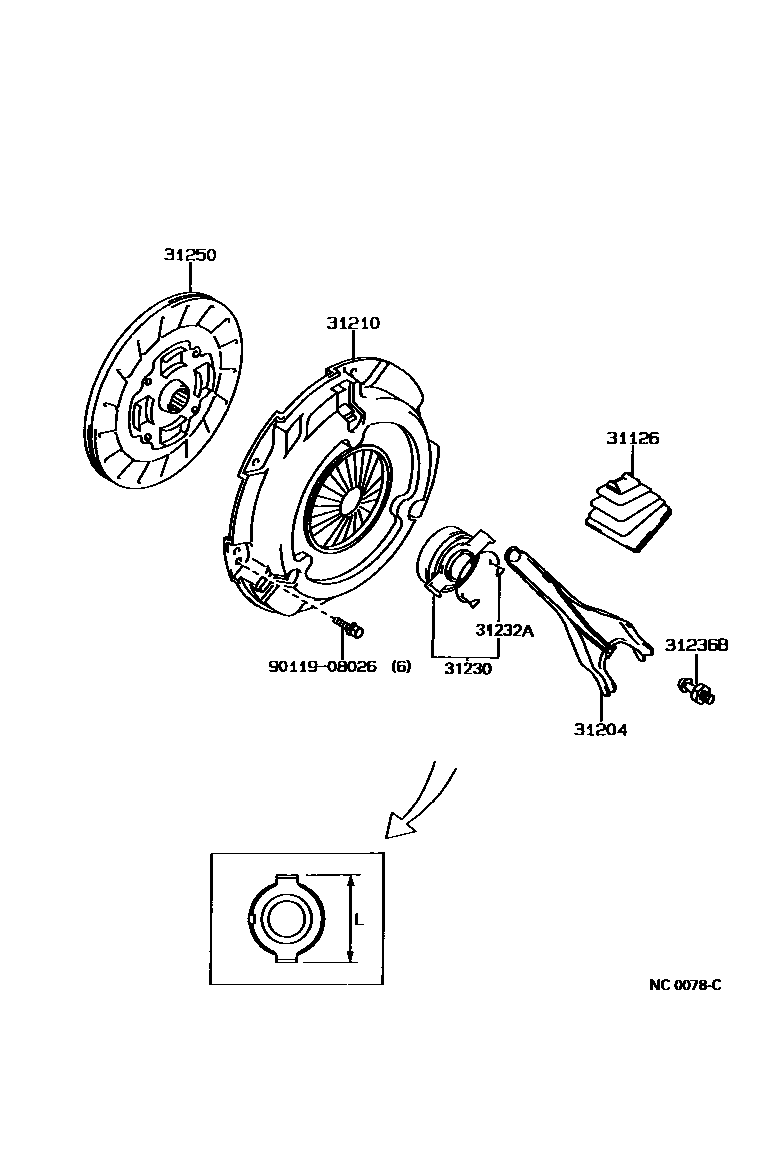

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE91,92,EE9#..MTM198705-199205

main31126-12060iAE95..5F198908-199106

main31126-32010iCE9#..5F198705-199109

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAE91,EE9#..MTM..CBR198705-199109

main31204-17010iAE95..5F198710-199205

main31204-20100iCE95198910-199109

main31204-32010iCE90,96,97..5F198705-199005

31210COVER ASSY, CLUTCH

main31210-12120iAE92..5F198705-198905

sub31210-12121

main31210-12130iAE95..5F198710-199008

sub31210-12131

main31210-12131iAE95..5F199008-199106

sub31210-12231

main31210-12140iAE91..MTM..(EFI,EFIS)198905-198911

sub31210-12141

main31210-12141iAE91..MTM198911-199104

sub31210-12190

main31210-12150iAE92..5F198905-198911

sub31210-12151

main31210-12151iAE92..5F198911-199205

sub31210-12152

main31210-12180iEE90,96,97..4F199104-199109

sub31210-12181

main31210-12190iAE91..MTM199104-199205

sub31210-12191

main31210-12210iEE98..MTM199104-199109

sub31210-12280

main31210-16060iEE90,96,97..4F198705-198812

sub31210-16061

main31210-16061iEE96,97198812-198908

sub31210-16062

main31210-16090iAE91..5F..EFI198705-198905

sub31210-16091

main31210-16100iAE91..MTM..CBR198705-198812

sub31210-16101

main31210-16101iAE91..MTM..CBR198812-198911

sub31210-16102

main31210-16102iEE98..MTM199001-199104

sub31210-12210

main31210-27010iEE90,98..MTM198708-198907

sub31210-27011

main31210-27011iEE90,96,97..4F198907-199104

sub31210-12180

main31210-32030iCE9#..5F198705-198812

sub31210-32120

main31210-32062iCE95198910-199106

sub31210-12270

main31210-32120iCE9#..5F198812-198906

sub31210-32121

main31210-32121iCE90,96,97..5F198906-199109

sub31210-12320

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iAE9#..MTM198705-198708

L=74.15

sub31230-12140

main31230-12140iEE96,97198705-199109

L=74.15

sub31230-16061

main31230-12170iAE91,92..MTM199105-199205

L=83.8

sub31230-12171

main31230-16060iEE98..4F198908-199109

L=74.15

sub31230-16061

main31230-20160iAE95..5F198710-198809

L=83.8

sub31230-20170

main31230-20170iAE95,CE95..5F198809-199106

L=83.8

main31230-32020iCE90,96,97..5F198705-199005

L=81.2

sub31230-32100

main31230-32060iCE90,96,97..5F199005-199109

L=84.4

31232ACLIP, RELEASE BEARING HUB

main31232-12020iAE9#..MTM198705-198708

main31232-12030iAE9#..MTM198705-198708

main31232-12040iAE91,EE9#..MTM..CBR198705-199109

main31232-12070iAE91,92..MTM199105

main31232-16031iEE9#..MTM198705-199109

main31232-20020iAE95,CE95..5F198710-199109

main31232-32010iCE90,96,97..5F198705-199005

main31232-32020iCE90,96,97..5F198705-199005

main31232-32030iAE95,CE9#..5F198705-199008

main31232-32050iCE90,96,97..5F199008-199109

31236BSUPPORT, RELEASE FORK

main31236-12011iEE9#..MTM198705-199109

main31236-12020iAE91,92..MTM199105-199205

main31236-20060iAE95,CE95..5F198710-199106

main31236-30030iCE90,96,97..5F198705-199005

main31236-32010iCE90,96,97..5F199005-199109

31250DISC ASSY, CLUTCH

main31250-10120iEE96,97..4F199106-199109

sub31250-12390

main31250-12133iEE90..4F198705-198708

sub31250-12170

main31250-12144iAE91,EE98..MTM..CBR198705-198803

sub31250-12200

main31250-12154iAE91..5F..EFI198705-198806

sub31250-12155

main31250-12155iAE91..MTM..(EFI,EFIS)198806-199006

sub31250-12156

main31250-12156iAE91..MTM199006-199104

sub31250-12310

main31250-12163iCE90..5F198705-198708

sub31250-12220

main31250-12170iEE96,97198708-198908

sub31250-12171

main31250-12190iAE95..5F198710-198805

sub31250-17030

main31250-12200iAE91,EE98..MTM..CBR198803-199006

sub31250-12201

main31250-12201iEE9#..MTM199006-199104

sub31250-12290

main31250-12220iCE90,96,97..5F198708-199006

sub31250-12260

main31250-12250iCE95198910-199109

sub31250-12270

main31250-12260iCE90,96,97..5F199006-199104

sub31250-12280

main31250-12280iCE90,96,97..5F199104-199109

sub31250-12281

main31250-12290iEE9#..MTM199104-199109

sub31250-12400

main31250-12310iAE91..MTM199104-199205

sub31250-12380

main31250-12320iAE92..5F199104-199205

sub31250-12360

main31250-17010iAE92..5F198705-198905

sub31250-12290

main31250-17020iAE92..5F198905-199104

sub31250-12320

main31250-17030iAE95..5F198805-199106

sub31250-17031

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
