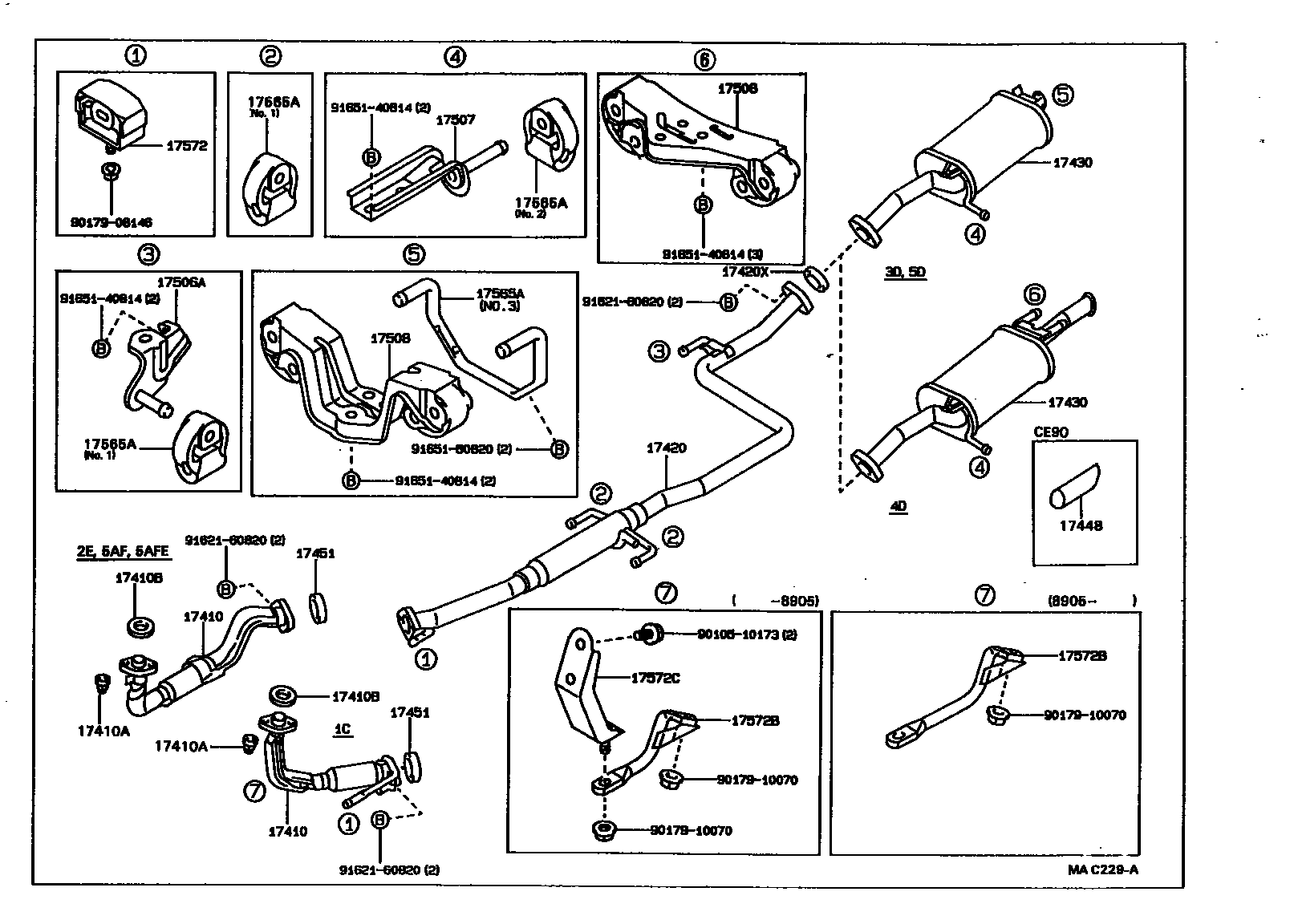

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-11310i2E..EE96198708-198908

main17410-11320i3E..EE98198708-198908

main17410-11450i3E..EE98198908-199109

main17410-15240i5AFE,2E..AE91,EE90,96,97198705-199102

sub17410-15241

main17410-15241i5AFE,2E..AE91,EE90,96,97199102-199205

main17410-16350i4AGE,5AFHE..AE91,92198705-199205

main17410-16540i4AF#..AE95198710-199106

main17410-64270i1C..CE90,96,97198705-199109

main17410-64400i2C..CE95198910-199105

sub17410-64401

main17410-64401i2C..CE95199105-199106

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AF#,5AF,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#198705-199205

17410BGASKET, EXHAUST PIPE

main90917-06004i4AGE..AE92198705-198903

sub90917-06039

main90917-06039i4AGE,5AFHE..AE91,92198903-199205

17420PIPE ASSY, EXHAUST, CENTER

main17420-11050i2E..EE96,97198705-198908

sub17420-11140

main17420-11060i5AF#..AE91198705-198905

sub17420-11061

main17420-11061i3E..EE98198905-199109

main17420-11090i3E..EE98198708-198908

main17420-11140i2E..EE90,96,97198905-199109

main17420-15110i5AFE..AE91..3D,4D,5D198905-199205

main17420-16100i4AGE..AE92198705-198905

main17420-16180i4AF..AE95198710-198905

sub17420-16181

main17420-16181i4AFE..AE95198905-199106

sub17420-16242

main17420-16380i5AFHE..AE91198905-199205

sub17420-16420

main17420-16420i4AGE..AE92198905-199205

main17420-64090i1C..CE90198705-198905

sub17420-64091

main17420-64091i1C..CE90198905-199106

sub17420-64101

main17420-64100i1C..CE96,97198708-198905

sub17420-64101

main17420-64101i1C..CE96,97198905-199109

main17420-64110i2C..CE95198910-199106

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06001i5AF#,2E..AE91,EE90,96,97198705-198903

sub90917-06038

main90917-06004i4AF,1C,3E..AE95,CE9#,EE98198705-198903

sub90917-06039

main90917-06012i4AGE..AE92198705-198903

sub90917-06045

main90917-06038i5AF,5AFE,2E..AE91,EE90,96,97198903-199111

main90917-06039i4AF#,1C,2C,3E..AE95,CE9#,EE98198903-199109

main90917-06047i4AGE,5AFHE..AE91,92198903-199205

sub90917-06045

main90917-06060i5AFE..AE91199111-199205

17430PIPE ASSY, EXHAUST, TAIL

main17430-11170i2E..EE90..4D198705-198905

main17430-11180i2E..EE90..FXD,FXL198705-198905

main17430-11220i1C..CE96,97198708-198908

main17430-11230i2E..EE96,97198708-198908

sub17430-11231

main17430-11231i2E..EE96,97198908-199109

main17430-11320i3E..EE98198806-198908

sub17430-11321

main17430-11321i3E..EE98198908-199109

main17430-11330i2E..EE90198905-199106

main17430-15370i5AF#..AE91..4D198705-198905

main17430-15380i5AF#..AE91..3D,5D198903-198905

main17430-15400i5AF#..AE91..3D,5D198705-198903

sub17430-15380

main17430-15420i5AF..AE91..G198708-198908

main17430-15450i5AFE..AE91..4D198905-199106

main17430-15470i5AFE..AE91..3D,5D198905-199205

main17430-15490i5AFE..AE91..WG198908-199109

main17430-16350i4AGE..AE92..GT198705-198905

main17430-16360i4AGE..AE92..FXGT198705-198905

main17430-16510i4AF..AE95198710-198905

sub17430-16551

main17430-16680i5AFHE..AE91..SE198905-199106

main17430-16690i5AFHE..AE91..FXVS,FXZS198905-199205

main17430-16700i4AGE..AE92..GT198905-199106

main17430-16710i4AGE..AE92..3D198905-199205

main17430-16730i4AFE,2C..AE95,CE95198905-199106

main17430-16840i1C..CE90198905-199106

main17430-64450i1C..CE90198705-198905

main17430-64570i1C..CE96,97198908-199109

17448BAFFLE, TAILPIPE

main17448-16010i4AGE..AE92..FXGT198705-198805

sub17448-19015

main17448-19015i5AFHE..AE91..FXVS,FXZS198805-199205

main17448-19025i4AGE,5AFHE..AE91,92..3D,5D198905-199205

sub17448-19015

main17448-64010i1C..CE90198908-199106

17451GASKET, EXHAUST PIPE

main90917-06004i4AF,5AF#,1C,2E..AE91,95,CE9#,EE90,96,97198705-198903

sub90917-06039

main90917-06012i4AGE..AE92198705-198903

sub90917-06045

main90917-06012i3E..EE98198708-198903

sub90917-06045

main90917-06020i3E..EE98198708-198903

sub90917-06044

main90917-06039i4AFE,5AFE,1C,2C,2E,3E..AE91,95,CE9#,EE9#198903-199205

main90917-06044i3E..EE98198903-198908

main90917-06047i3E..EE98198903-198908

sub90917-06045

main90917-06047i4AGE,5AFHE..AE91,92198903-199205

sub90917-06045

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-15050i4AGE,5AF#,1C,2E..AE91,92,CE90,EE90198705-199205

main17506-16040i4AF#,2C..AE95,CE95198710-199106

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-11030i1C,2E,3E..CE96,97,EE96,97,98198708-199109

main17507-15030i4AGE,5AF#,1C,2E..AE91,92,CE90,EE90198705-199205

main17507-16020i4AF#,2C..AE95,CE95198710-199106

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-11020i1C,2E,3E..CE96,97,EE96,97,98198708-199109

main17508-15030i4AGE,5AF#,1C,2E..AE91,92,CE90,EE90..4D,WG198705-199109

main17508-15040i4AGE,5AF#,2E..AE91,92,EE90..3D,5D198705-199205

main17508-16040i4AF#,2C..AE95,CE95198710-199106

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-15040i4AGE,5AF#,2E..AE91,92,EE90..3D,5D198705-199205

main17565-15050i5AF,5AFE,1C,2E..AE91,CE90,EE90198705-199205

main17565-15070i1C,2E..CE90,EE90198705-199205

main17565-15070i1C,2E,3E..CE96,97,EE96,97,98198908-199010

main17565-15110i1C,2E,3E..CE96,97,EE96,97,98199010-199109

main17565-63030i2C..CE95198708-199109

main17565-63071i4AF#..AE95198710-199106

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-15050i4AGE,4AF#,5AF#,1C,2E,3E..AE9#,CE90,96,97,EE9#198705-199205

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-64120i1C..CE90,96,97198705-199109

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-11110i2E,3E..EE96,98198708-198908

main17571-64130i1C..CE96,97198705-198908

9010510173

main90105-10173

9017908146

main90179-08146

9017910070

main90179-10070

9162160820

main91621-60820

9165140814

main91651-40814

9165160820

main91651-60820

21 parts on this diagram · 5 diagrams in section
