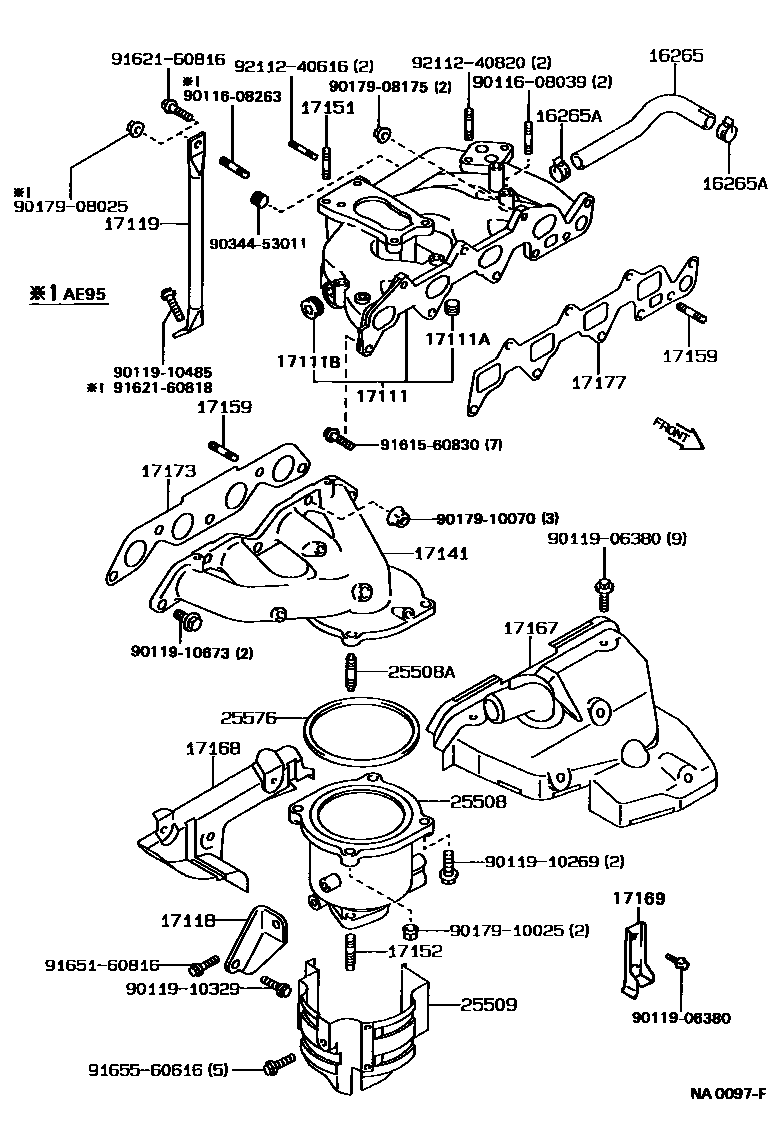

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
17111APLUG, NO.1
17111BPLUG, NO.2
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD,NO1
EXHAUSTMANIFOLD,NO.1
EXHAUST MANIFOLD
EXHAUSTMANIFOLD,NO.2
INTAKE MANIFOLD
INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
sub17173-10021
sub17173-11021
sub17173-15011
sub17173-16011
sub17173-64050
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17171-15021
sub17171-16031
sub17177-10011
sub17177-10020
sub17177-11011
sub17177-11040
sub17177-64020
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
9011608039
main90116-08039
9011608263
main90116-08263
9011906380
main90119-06380
9011910269
main90119-10269
9011910329
main90119-10329
9011910485
main90119-10485
9011910673
main90119-10673
9017908025
main90179-08025
9017908175
main90179-08175
9017910025
main90179-10025
9017910070
main90179-10070
9034453011
main90344-53011
9161560830
main91615-60830
9162160816
main91621-60816
9162160818
main91621-60818
9165160816
main91651-60816
9165560616
main91655-60616
9211240616
main92112-40616
9211240820
main92112-40820
39 parts on this diagram · 8 diagrams in section
