CRANKSHAFT & PISTON

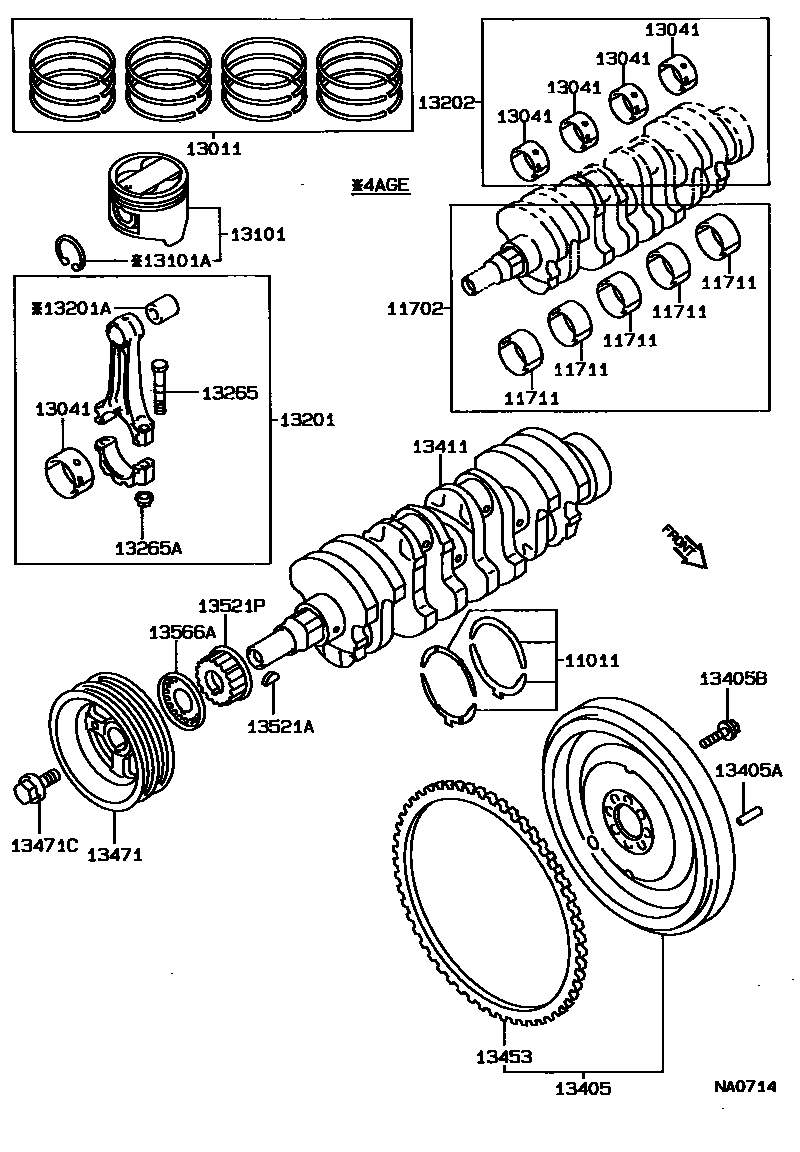

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-10010i198705-199109
main11011-11010i198808-199109
main11011-11020i198708-198808
sub11011-11010
main11011-15010i198705-199205
sub11011-15020
main11011-64010i198705-199109
main11012-10010i198705-198808
sub11012-10020
main11012-10020i198808-199109
main11012-11010i198808-199109
main11012-11020i198708-198808
sub11012-11010
main11012-64010i198705-199109
main11013-64010i198705-199109
11702BEARING SET, CRANKSHAFT
main11704-10010i198705-198912
sub11704-10011
main11704-10011i198912-199109
sub11704-10012
main11704-11010i198708-198912
sub11704-11011
main11704-11011i198912-199109
sub11704-11012
main11704-15050i198705-198808
sub11704-16010
main11704-16010i198808-199106
main11704-16010i199106-199205
main11704-64040i199008-199109
sub11704-64070
main11704-64050i198705-199008
11711BEARING, CRANKSHAFT
main11701-10010-01i198705-198912
MARK 1
sub11701-10011
main11701-10010-02i198705-198912
MARK 2
sub11701-10011
main11701-10010-03i198705-198912
MARK 3
sub11701-10011
main11701-10011-01i198912-199109
MARK 1
sub11701-10012
main11701-10011-02i198912-199109
MARK 2
sub11701-10012
main11701-10011-03i198912-199109
MARK 3
sub11701-10012
main11701-11010-01i198708-198912
MARK 1
sub11701-11011
main11701-11010-02i198708-198912
MARK 2
sub11701-11011
main11701-11010-03i198708-198912
MARK 3
sub11701-11011
main11701-11010-04i198708-198912
MARK 4
sub11701-11011
main11701-11010-05i198708-198912
MARK 5
sub11701-11011
main11701-11011-01i198912-199109
MARK 1
sub11701-11012
main11701-11011-02i198912-199109
MARK 2
sub11701-11012
main11701-11011-03i198912-199109
MARK 3
sub11701-11012
main11701-11011-04i198912-199109
MARK 4
sub11701-11012
main11701-11011-05i198912-199109
MARK 5
sub11701-11012
main11701-15050-01i198705-198808
MARK 1
sub11701-16010
main11701-15050-02i198705-198808
MARK 2
sub11701-16010
main11701-15050-03i198705-198808
MARK 3
sub11701-16010
main11701-15050-04i198705-198808
MARK 4
sub11701-16010
main11701-15050-05i198705-198808
MARK 5
sub11701-16010
main11701-16010-01i198808-199205
MARK 1
main11701-16010-02i198808-199205
MARK 2
main11701-16010-03i198808-199205
MARK 3
main11701-16010-04i198808-199205
MARK 4
main11701-16010-05i198808-199205
MARK 5
main11701-64040-01i199008-199109
MARK 1
sub11701-64070
main11701-64040-02i199008-199109
MARK 2
sub11701-64070
main11701-64040-03i199008-199109
MARK 3
sub11701-64070
main11701-64050-01i198705-199008
MARK 1
main11701-64050-02i198705-199008
MARK 2
main11701-64050-03i198705-199008
MARK 3
13011RING SET, PISTON
main13011-11041i198705-199103
sub13011-11042
main13011-11042i199103-199109
sub13011-11043
main13011-11090i198708-199109
main13011-15050i198705-199205
main13011-16120i198710-199106
sub13011-16130
main13011-16160i198905-199103
sub13011-16200
main13011-16170i198705-198905
main13011-16200i199103-199205
main13011-64130i198705-199109
main13011-64190i198910-199106
main13011-64220i198905-199106
main13013-11041i198705-199103
sub13013-11042
main13013-11042i199103-199109
sub13013-11043
main13013-11090i198708-199109
main13013-15050i198705-199205
main13013-16120i198710-199106
sub13013-16130
main13013-16160i198905-199103
sub13013-16200
main13013-16170i198705-198905
main13013-16200i199103-199205
main13013-64130i198705-199109
main13013-64190i198910-199106
main13013-64220i198905-199106
13041BEARING, CONNECTING ROD
main13041-10020-01i198705-199109
MARK 1
main13041-10020-02i198705-199109
MARK 2
main13041-10020-03i198705-199109
MARK 3
main13041-11010-01i198808-199109
MARK 1
main13041-11010-02i198808-199109
MARK 2
main13041-11010-03i198808-199109
MARK 3
main13041-11020-01i198708-198808
MARK 1
sub13041-11010
main13041-11020-02i198708-198808
MARK 2
sub13041-11010
main13041-11020-03i198708-198808
MARK 3
sub13041-11010
main13041-15030-01i198705-199205
MARK 1
sub13041-15031
main13041-15030-02i198705-199205
MARK 2
sub13041-15031
main13041-15030-03i198705-199205
MARK 3
sub13041-15031
main13041-16070-01i198705-199205
MARK 1
sub13041-16071
main13041-16070-02i198705-199205
MARK 2
sub13041-16071
main13041-16070-03i198705-199205
MARK 3
sub13041-16071
main13041-64041-01i199008-199109
MARK 1
sub13041-64070
main13041-64041-02i199008-199109
MARK 2
sub13041-64070
main13041-64041-03i199008-199109
MARK 3
sub13041-64070
main13041-64050-01i198705-199008
MARK 1
main13041-64050-02i198705-199008
MARK 2
main13041-64050-03i198705-199008
MARK 3
13101PISTON SUB-ASSY, W/PIN
main13101-11030i198705-198801
sub13101-11031
main13101-11030-01i198801-198911
sub13101-11030
sub13101-11031
main13101-11030-02i198801-198911
sub13101-11030
sub13101-11031
main13101-11030-03i198801-198911
sub13101-11030
sub13101-11031
main13101-11031-01i198911-199109
sub13101-11090
main13101-11031-02i198911-199109
sub13101-11090
main13101-11031-03i198911-199109
sub13101-11090
main13101-11080i198708-198801
sub13101-11081
main13101-11080-01i198801-198911
sub13101-11080
sub13101-11081
main13101-11080-02i198801-198911
sub13101-11080
sub13101-11081
main13101-11080-03i198801-198911
sub13101-11080
sub13101-11081
main13101-11081-01i198911-199109
main13101-11081-02i198911-199109
main13101-11081-03i198911-199109
main13101-15030i198705-198801
sub13101-15040
main13101-15030-01i198801-199107
sub13101-15030
sub13101-15040
main13101-15030-02i198801-199107
sub13101-15030
sub13101-15040
main13101-15030-03i198801-199107
sub13101-15030
sub13101-15040
main13101-15040-01i198905-199205
main13101-15040-02i198905-199205
main13101-15040-03i198905-199205
main13101-16070i198705-198802
main13101-16070-01i198802-198905
sub13101-16070
main13101-16070-02i198802-198905
sub13101-16070
main13101-16070-03i198802-198905
sub13101-16070
main13101-16090i198710-198801
sub13101-16110
main13101-16090-01i198801-199106
sub13101-16090
sub13101-16110
main13101-16090-02i198801-199106
sub13101-16090
sub13101-16110
main13101-16090-03i198801-199106
sub13101-16090
sub13101-16110
main13101-16120-01i198905-199104
sub13101-16121
main13101-16120-02i198905-199104
sub13101-16121
main13101-16120-03i198905-199104
sub13101-16121
main13101-16121-01i199104-199205
main13101-16121-02i199104-199205
main13101-16121-03i199104-199205
main13101-64100i198705-198801
main13101-64100-01i198801-198908
sub13101-64100
main13101-64100-02i198801-198908
sub13101-64100
main13101-64100-03i198801-198908
sub13101-64100
main13101-64110-01i198910-199106
sub13101-64110
main13101-64110-02i198910-199106
sub13101-64110
main13101-64110-03i198910-199106
sub13101-64110
main13101-64130-01i198905-199109
main13101-64130-02i198905-199109
main13101-64130-03i198905-199109
main13103-11030i198705-198911
sub13103-11031
main13103-11031i198911-199109
sub13103-11090
main13103-11080i198708-198911
sub13103-11081
main13103-11081i198911-199109
main13103-15030i198705-199107
sub13103-15040
main13103-15040i198905-199205
main13103-16070i198705-198905
main13103-16090i198710-199106
sub13103-16110
main13103-16120i198905-199104
sub13103-16121
main13103-16121i199104-199205
main13103-64100i198705-198908
main13103-64110i198910-199106
main13103-64130i198905-199109
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-20064i199106-199205
main90521-23003i199104-199106
main90521-23005i198705-199104
main90521-29003i198705-199109
13201ROD SUB-ASSY, CONNECTING
main13201-19055i198705-199201
sub13201-19056
main13201-19056i199201-199205
main13201-19075i198705-199109
sub13201-19076
main13201-19085i198708-199001
sub13201-19086
main13201-19086i199001-199004
sub13201-19087
main13201-19087i199004-199109
sub13201-19088
main13201-19095i198705-199102
sub13201-19096
main13201-19125i199102-199110
sub13201-19126
main13201-19126i199110-199205
main13201-69065i198705-199008
sub13201-69135
main13201-69115i199008-199109
sub13201-69076
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73102i198705-199109
sub90999-73138
main90999-73111i198705-199205
13202BEARING SET, CONNECTING ROD
main13204-10020i198705-199109
main13204-11010i198808-199109
main13204-11020i198708-198808
sub13204-11010
main13204-15030i198705-199205
sub13204-15031
main13204-16070i198705-199205
sub13204-16071
main13204-64041i199008-199109
sub13204-64070
main13204-64050i198705-199008
13265BOLT, CONNECTING ROD
main13265-10020i198705-199109
sub13265-10022
main13265-10021i199004-199109
sub13265-10022
main13265-15020i198705-198708
sub13265-16010
sub90170-09003
main13265-15030i199106-199205
main13265-16010i198708-199205
main13265-49015i198705-199109
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198705-199106
main90170-09003i198708-199205
main90170-09005i199106-199201
main90179-08014i198705-199109
main90179-09008i199201-199205
main90179-10042i198705-199109
13405FLYWHEEL SUB-ASSY
main13405-11030i198705-198901
sub13405-11031
main13405-11031i198901-199109
main13405-11040i198708-198901
sub13405-11041
main13405-11041i198901-199109
main13405-15030i198705-198908
main13405-16010i198705-199205
main13405-16030i198905-199205
main13405-16060i198710-199106
main13405-19145i198705-198905
main13405-64020i198705-199109
main13405-64070i198910-199106
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198705-199109
main90250-08120i198705-199205
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198705-199205
main90105-10071i198705-199109
main90105-10076i198705-199205
main90105-10138i198705-199109
13411CRANKSHAFT
main13401-11020i198801-198910
sub13401-11050
main13401-11040i198708-199109
main13401-11050i198910-199109
sub13401-11051
main13401-16020i198705-199205
main13411-11020i198705-198801
main13411-15040i198705-199106
sub13411-15050
main13411-15050i199106-199108
sub13411-15900
main13411-15900i199108-199205
sub13411-02910
main13411-64900i198705-199104
sub13411-64901
sub13521-64011
main13411-64901i199104-199109
sub13411-64904
13453GEAR, FLYWHEEL RING
main13453-10010i198705-199205
main13453-10030i198705-199109
main13453-64011i198705-199109
main13453-64050i198910-199106
13471PULLEY, CRANKSHAFT
main13408-11011i198705-198706
TOYODA KOUKI
sub13408-11012
main13408-11012i198706-199109
sub13470-11030
main13408-11020i198705-198706
sub13408-11012
main13408-64031i198705-198908
main13408-64060i198905-199109
main13470-15070i198705-198807
main13470-15080i198803-198905
sub13470-15100
main13470-15100i198905-199201
sub13470-15101
sub90119-12230
main13470-15101i199201-199205
main13470-16030i198705-199205
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12051i198705-199109
main90105-14077i199006-199105
sub90105-14089
sub90201-14030
main90105-14089i199105-199109
main90119-12101i198705-199201
main90119-12127i198705-199205
main90119-12230i199201-199205
sub90119-12314
main91511-61435i198705-199006
sub90105-14089
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i199106-199205
main90280-05010i198705-198910
main95161-20519i198901-199202
main95161-20622i198705-199109
sub95161-30622
13521PPULLEY, CRANKSHAFT TIMING
main13521-11010i198705-199109
main13521-15010i198705-199205
main13521-16010i198705-199205
main13521-64010i198705-199105
sub13521-64011
main13521-64011i199105-199109
13566AGUIDE, TIMING BELT
main13566-10011i198705-199109
main13566-15010i198705-199205
main13566-64010i198705-199102
sub13566-64011
main13566-64011i199102-199109

22 parts on this diagram · 3 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
