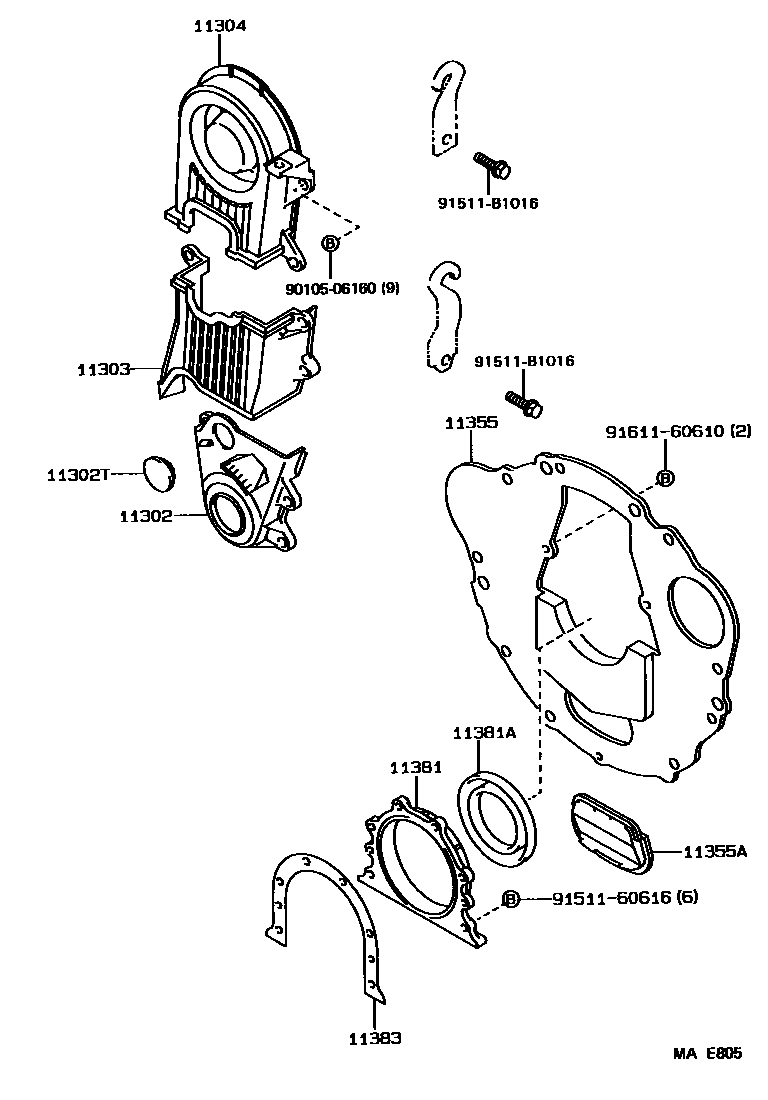

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11031i3E..EE98198708-199109

main11302-11041i2E..EE90198705-198708

sub11302-11042

main11302-11042i2E..EE96,97198708-199109

sub11302-11043

sub90387-06015

main11302-15040i4AF,5AF#..AE91,95198705-198711

sub11302-15041

main11302-15041i4AFE,5AF#..AE91,95198711-199205

11302TPLUG, HOLE

main90950-01391i4AF#,5AF#..AE91,95198705-199205

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF#,5AF#..AE91,95198705-199205

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AF#,5AF#..AE91,95198705-199205

11355PLATE, REAR END

main11355-10011i2E,3E..EE9#..MTM198705-199109

sub11355-10012

main11355-11011i2E,3E..EE90,96,98..3FC198705-199109

sub11355-11012

main11355-15060i4AGE..AE92198705-199205

main11355-15070i5AF#..AE91..MTM198705-199205

main11355-15080i5AF#..AE91..ATM198705-199205

main11355-16010i4AF#..AE95198710-199106

main11355-64032i1C..CE90..5F198705-198910

sub11355-64050

sub11356-64040

main11355-64042i1C..CE9#..4FC198705-198910

sub11355-64060

sub11356-64040

main11355-64050i1C,2C..CE9#..5F198904-199109

sub11355-64051

sub90119-06670

main11355-64060i1C..CE90,96,97..4FC198904-199109

sub11355-64061

sub90119-06670

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i5AF#..AE91..ATM198705-199205

main90950-01548i1C..CE9#..4FC198705-199109

main90950-01738i1C..CE90,96,97..4FC198910-199109

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i2E,3E..EE9#198705-199109

main11381-15010i4AGE,4AF#,5AF#..AE9#198705-199205

main11381-64012i1C,2C..CE9#198705-199109

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AGE,4AF#,5AF#..AE9#198705-199106

sub90311-70007

main90311-70007i4AGE,5AF#..AE9#199106-199205

main90311-75004i2E..EE90..4D198705-199010

sub90311-75006

main90311-75009i2E..EE90,96,97199010-199109

main90311-80007i3E..EE98198708-199108

sub90311-80012

main90311-80012i3E..EE98199108-199109

main90311-90003i1C..CE9#198705-199002

sub90311-90005

main90311-90005i1C,2C..CE9#199002-199109

sub90311-90008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4A#,5AF#..AE9#198705-198912

sub11383-15011

main11383-15011i4A#,5AFHE..AE9#198912-199205

sub11383-16010

9010506160

main90105-06160

9151160616

main91511-60616

91511B1016

main91511-B1016

9161160610

main91611-60610

13 parts on this diagram · 6 diagrams in section
