SHORT BLOCK ASSEMBLY

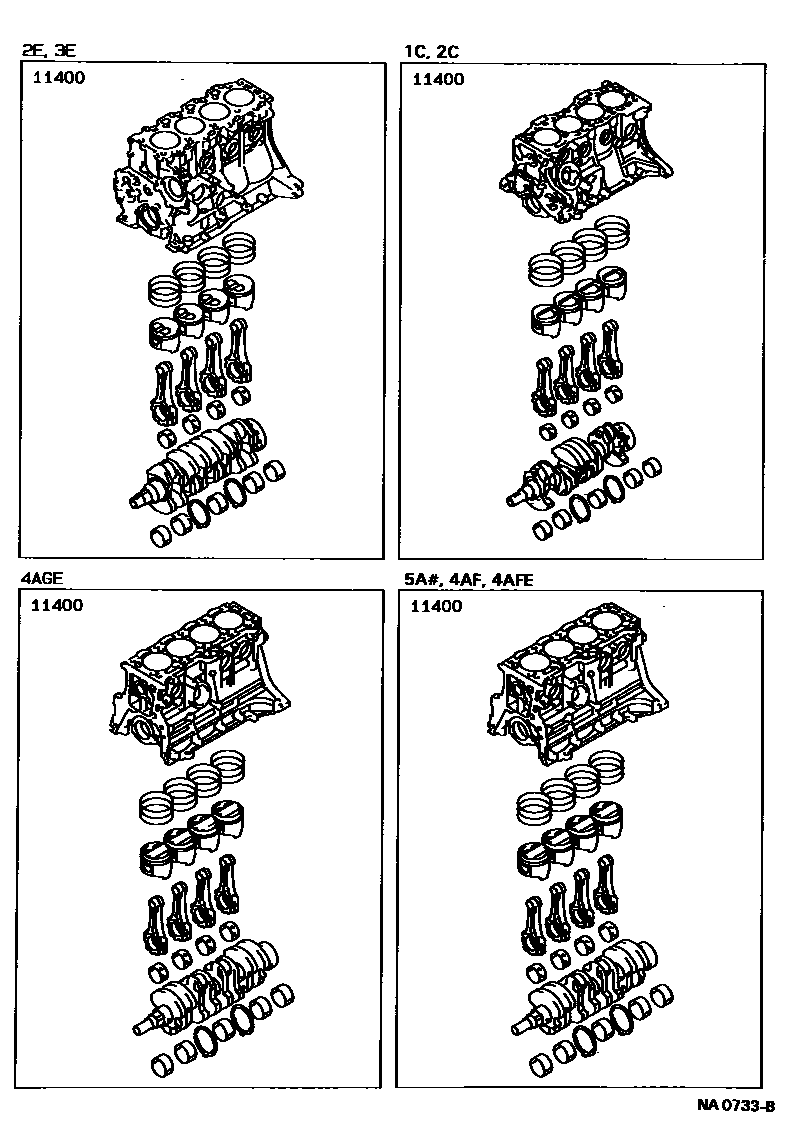

Parts diagram

11400BLOCK ASSY, SHORT

main11400-11011i198705-199109

main11400-11060i198708-199109

main11400-15070i198905-199107

main11400-15080i199107-199205

main11400-16120i198705-198905

main11400-16170i198710-198908

main11400-16171i198911-199004

main11400-16172i199004-199104

main11400-16173i199104-199106

main11400-16250i198905-199101

main11400-16251i199101-199205

main11400-64101i198905-198908

main11400-64111i198705-198905

main11400-64280i198905-199109

main11400-64290i198908-199110

main11400-64300i198910-199106

1 parts on this diagram · 1 diagram in section
