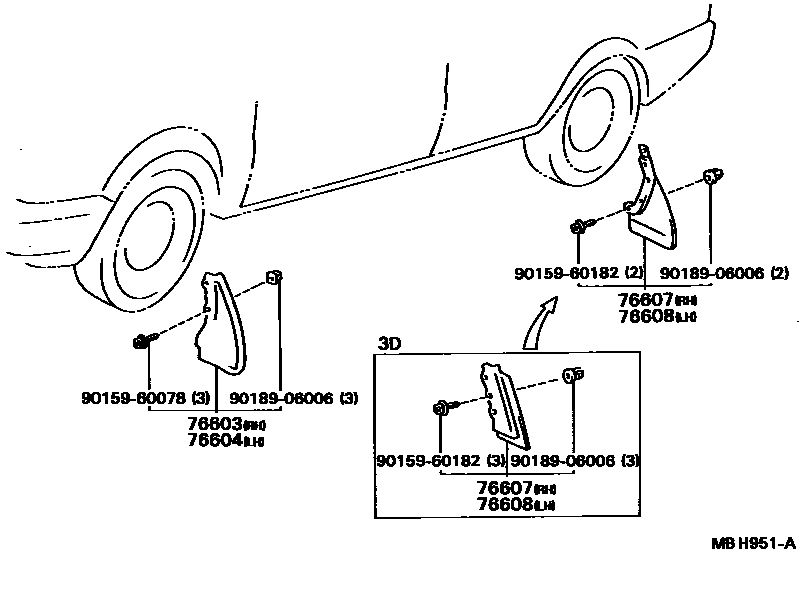

MUDGUARD & SPOILER

0001 1 0002 1

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12100iAE81..SE198609-198704

SALOON LIMITED

main76621-19085iAE80,82,CE80; AE81..GL,SE,SX,ZX198305-198401

main76621-19086iAE8#,CE80,EE80198410-198704

main76621-19155iAE81,CE80,EE80..4D..GL198607-198704

SALOON EDITION

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12100iAE81..SE198609-198704

SALOON LIMITED

main76622-19085iAE80,82,CE80; AE81..GL,SE,SX,ZX198305-198401

main76622-19086iAE8#,CE80,EE80198410-198704

main76622-19155iAE81,CE80,EE80..4D..GL198607-198704

SALOON EDITION

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-12270iAE81..SE198609-198704

SALOON LIMITED

main76625-19025iAE80,82,CE80; AE81..GL,SE,SX,ZX198305-198401

main76625-19026iAE8#,CE80..4D,5D3198410-198505

main76625-19055iAE82..FXT198410-198704

BLACK

main76625-19065iAE82..FXT198410-198704

RED(3E6)

main76625-19075iAE82..FXT198410-198605

SILVER-M(147)

main76625-19085iAE82..FXT198410-198704

WHITE(041)

main76625-19095iAE82..GT198505-198704

main76625-19115iAE8#,CE80,EE80..CTD,DX,GL,SE,ZX198505-198704

main76625-19195iAE82..FXT198605-198608

SILVER-M(164)

main76625-19205iAE82..FXT198606-198704

LIMITED,GRAY-M(155)

main76625-19215iAE81,CE80,EE80..4D..GL198607-198704

SALOON EDITION

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-12270iAE81..SE198609-198704

SALOON LIMITED

main76626-19035iAE80,82,CE80; AE81..GL,SE,SX,ZX198305-198401

main76626-19036iAE8#,CE80..4D,5D3198410-198505

main76626-19065iAE82..FXT198410-198704

BLACK

main76626-19075iAE82..FXT198410-198704

RED(3E6)

main76626-19085iAE82..FXT198410-198605

SILVER-M(147)

main76626-19095iAE82..FXT198410-198704

WHITE(041)

main76626-19105iAE82..GT198505-198704

main76626-19125iAE8#,CE80,EE80..CTD,DX,GL,SE,ZX198505-198704

main76626-19205iAE82..FXT198605-198608

SILVER-M(164)

main76626-19215iAE82..FXT198606-198704

LIMITED,GRAY-M(155)

main76626-19225iAE81,CE80,EE80..4D..GL198607-198704

SALOON EDITION

9015960078

main90159-60078

9015960182

main90159-60182

9018906006

main90189-06006

7 parts on this diagram · 2 diagrams in section
