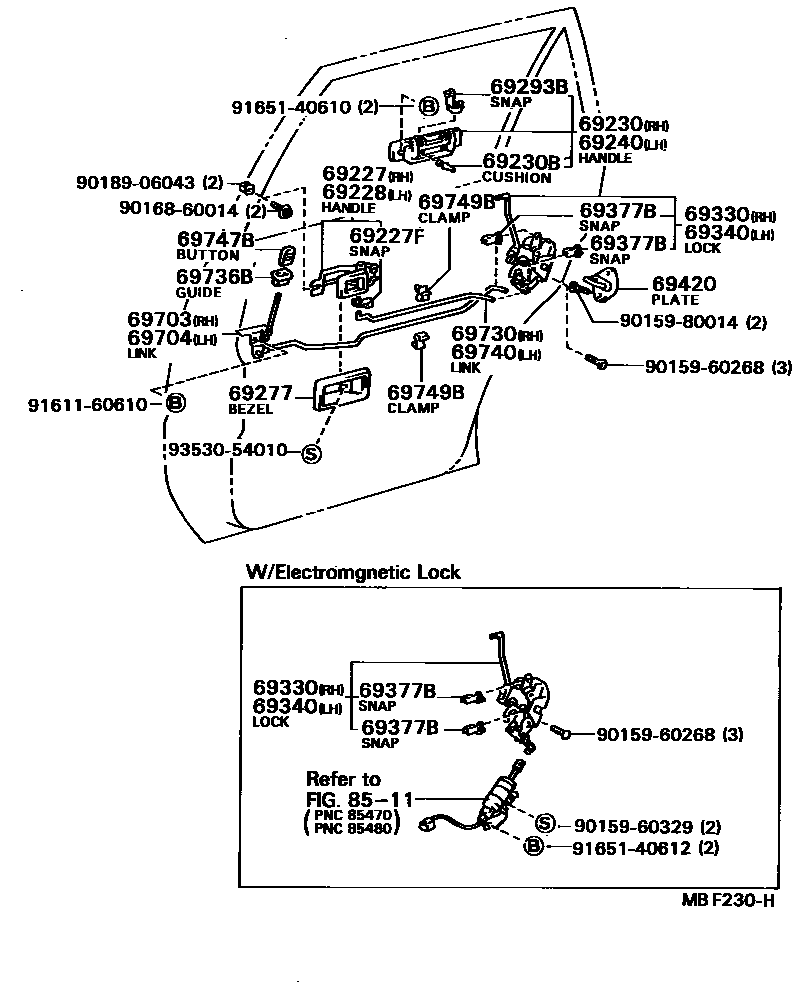

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-12070-02iAE81..4F..DX;AE81..GL,SX,ZX;AE80,82,CE80..CTD,DX,GL,SR,SX,ZX198305-198408

MAROON,RED/MAROON,TRIM3#

main69206-12070-03iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,FXR,GL,SR,SX,ZX)198305-198704

GRAY,GRAY,TRIM1#

main69206-12070-04iAE8#,CE80,EE80..CTD,DX,GL,SR,SX,ZX198305-198704

BLUE,BLUE,TRIM8#

main69206-12070-13iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

GRAY,GRAY,TRIM1#

main69206-12070-14iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

BLUE,BLUE,TRIM8#

main69206-12070-15iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

BEIGE,BEIGE,TRIM3#

main69206-12070-16iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,GL,SR,SX,ZX)198408-198704

BROWN,SEPIA BROWN,TRIM4#

main69206-30020iAE81,82,CE80..(4D,5D2)..(FXG,GT,SE)198401-198704

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69759-20060iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198704

LH

main69759-20070iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,FXR,GL,SR,SX,ZX)198305-198704

RH

main69759-24010iAE81,82,CE80..(4D,5D2)..(FXG,GT,SE)198401-198704

RH

main69759-24020iAE81,82,CE80..(4D,5D2)..(FXG,GT,SE)198401-198704

LH

69228HANDLE, REAR DOOR INSIDE, LH

main69205-12070-02iAE81..4F..DX;AE81..GL,SX,ZX;AE80,82,CE80..CTD,DX,GL,SR,SX,ZX198305-198408

MAROON,RED/MAROON,TRIM3#

sub69205-12070

main69205-12070-03iAE8#,CE80..GL,SE,SR,SX,ZX198305-198704

GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-04iAE8#,CE80..GL,SE,SR,SX,ZX198305-198704

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-13iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-14iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-15iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

BEIGE,BEIGE,TRIM3#

sub69205-12070

main69205-12070-16iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,GL,SR,SX,ZX)198408-198704

BROWN,SEPIA BROWN,TRIM4#

sub69205-12070

main69205-30030iAE81,82,CE80..(4D,5D2)..(FXG,GT,SE)198401-198704

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12060iAE81,82,CE80..(4D,5D2)..(FXG,GT,SE)198305-198704

main69230-12060iAE80,81,CE80,EE80..4D..GL198310-198704

SALOON

main69230-12060iAE80,81,EE80..4D..GL198401-198704

LIME

main69230-12070iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,FXR,GL,SR,SX,ZX)198305-198704

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12060iAE81,82,CE80..(4D,5D2)..(FXG,GT,SE)198305-198704

main69240-12060iAE80,81,CE80,EE80..4D..GL198310-198704

SALOON

main69240-12060iAE80,81,EE80..4D..GL198401-198704

LIME

main69240-12070iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXL,FXR,GL,SR,SX,ZX)198305-198704

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-32020-04iAE8#,CE80..GL,SE,SR,SX,ZX198305-198704

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-12iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198408

MAROON,RED/MAROON,TRIM3#

sub69277-32020

sub69277-89104

main69277-32020-23iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-24iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-25iAE81..4F..DX;AE80,CE80..CTD,DX198305-198401

BEIGE,BEIGE,TRIM3#

sub69277-32020

sub69277-89104

main69277-32020-26iAE8#,CE80,EE80..(4D,5D2,5D3)..(CTD,DX,FXG,FXL,GL,SE,SR,SX,ZX)198408-198704

BROWN,BROWN,TRIM4#

sub69277-32020

sub69277-89104

main69277-32020-33iAE8#,CE80..GL,SE,SR,SX,ZX198305-198704

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

LH

main69293-12040iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

RH

69330LOCK ASSY, REAR DOOR, RH

main69330-12080iAE8#,CE80,EE80..4D,5D2,5D3198505-198704

W/O *EL

main69330-12100iAE81..ZX198305-198505

W/O *EL

main69330-12120iAE82..GT,ZX198305-198505

W/*EL

main69330-12150iAE8#..(4D,5D3)..(4FC,5F)198505-198704

W/*EL

69340LOCK ASSY, REAR DOOR, LH

main69340-12080iAE8#,CE80,EE80..4D,5D2,5D3198505-198704

W/O *EL

main69340-12100iAE8#,CE80..(4D,5D2,5D3)..(CTD,DX,FXG,FXL,FXR,GL,GT,SE,SR,SX)198305-198505

W/O *EL

main69340-12120iAE82..GT,ZX198305-198505

W/*EL

main69340-12150iAE8#..(4D,5D3)..(4FC,5F)198505-198704

W/*EL

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20040iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

RH

main69759-20050iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

LH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-12020iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198410

sub69770-12030

main69770-12030iAE8#,CE80,EE80..4D,5D2,5D3198410-198704

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-12020iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198410

sub69780-12030

main69780-12030iAE8#,CE80,EE80..4D,5D2,5D3198410-198704

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-12030iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

69736BGUIDE, REAR DOOR LOCK LINK

main69736-12030iAE8#,CE80,EE80..(4D,5D2,5D3)..(FXG,FXL,FXR,GL,GT,SE,SR,SX,ZX)198408-198704

main69736-22021iAE8#,CE80..GL,SE,SR,SX,ZX198305-198408

main69751-20031-01iAE80,81,CE80,EE80..CTD,DX198305-198704

BLACK

sub69751-20031

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-12040iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-32010-01iAE8#,CE80..4D,5D2,5D3198305-198505

BLACK,BLACK,TRIM1#

sub69741-32010

sub69741-90K00

main69741-90K00-01iAE8#,CE80,EE80..4D,5D2,5D3198505-198704

BLACK,BLACK,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20010iAE8#,CE80,EE80..4D,5D2,5D3198305-198704

8511

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016860014

main90168-60014

9018906043

main90189-06043

9161160610

main91611-60610

9165140610

main91651-40610

9165140612

main91651-40612

9353054010

main93530-54010

29 parts on this diagram · 1 diagram in section
