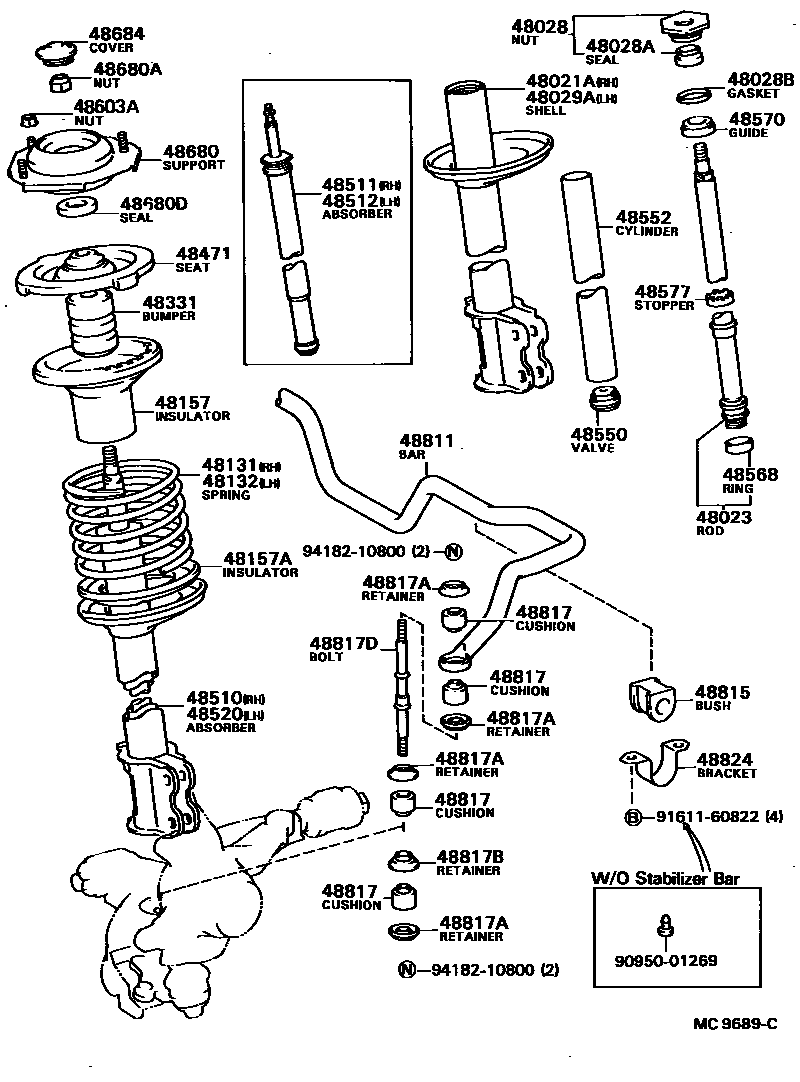

FRONT SPRING & SHOCK ABSORBER

48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH

main48021-12181iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main48021-20121iCE80198305-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12260iAE80,81..3D,4D,5D2198305-198505

main48023-12290iAE81,82..FXR,SR,SX,ZX198305-198505

main48023-12300iCE80198305-198403

sub48023-20110

main48023-20110iCE80198403-198505

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

sub48028-17010

main48028-14011iCE80198305-198505

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main90316-22001iCE80198305-198505

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iAE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198408

sub90430-37003

main90430-37003iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198408-198505

main90430-43206iCE80198305-198505

48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH

main48029-12061iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main48029-20121iCE80198305-198505

48131SPRING, FRONT COIL, RH

main48131-1A640iCE80..5F198305-198312

main48131-1A660iAE82..5F198305-198312

main48131-1A680iAE80,81..4D..MTM198305-198312

main48131-1A700iAE82..4FC198305-198312

sub48131-1E350

main48131-1A760iCE80..5F198305-198704

main48131-1A860iAE81..5F..ZX198505-198704

main48131-1A880iAE81..4FC..ZX198305-198704

main48131-1E130iAE81..5D3..ATM198305-198505

main48131-1E150iCE80..ATM198305-198704

main48131-1E300iAE80,81..(3D,4D,5D2)..ATM198312-198505

sub48131-1E310

main48131-1E330iAE82..5F..(FXR,SE,SR,SX,ZX)198312-198704

main48131-1E340iAE80,81..(3D,4D,5D2)..MTM198505-198704

main48131-1E350iAE80,81..(3D,4D,5D2)..MTM198312-198704

main48131-1E420iAE82..5F..GT198410-198704

main48131-1E480iAE82..5F..FXT198410-198704

main48131-1E610iAE82..4FC..GT198410-198704

main48131-1E620iAE82..4FC..FXT198410-198704

48132SPRING, FRONT COIL, LH

main48131-1A620iCE80..5F198305-198312

main48131-1A640iCE80..3FC..SX198305-198704

main48131-1A660iAE80,81..4D..MTM198305-198312

main48131-1A680iAE82..4FC198305-198312

main48131-1A760iCE80..4D..3FC198305-198704

main48131-1A840iAE81..5F..ZX198505-198704

main48131-1A860iAE81..5D3..5F198305-198704

main48131-1A880iAE81..5D3..ATM198305-198505

main48131-1E010iEE80..4F198305-198704

main48131-1E330iAE81..MTM..(DX,FXD,FXG,FXL,GL,SE)198505-198704

main48131-1E340iAE80,81..(3D,4D,5D2)..MTM198312-198704

main48131-1E350iAE80,81..(3D,4D,5D2)..ATM198312-198505

main48131-1E400iAE82..5F..GT198410-198704

main48131-1E430iAE82..4FC..GT198410-198704

main48131-1E460iAE82..5F..FXT198410-198704

main48131-1E490iAE82..4FC..FXT198410-198704

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12050iAE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198507

main48157-20030iCE80;AE82..FXT,GT198305-198507

main48157-20040iCE80;AE82..FXT,GT198507-198704

main48157-20050iAE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,ZX198507-198704

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12010iAE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198704

main48158-12020iCE80;AE82..FXT,GT198305-198704

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198704

sub48331-12120

main48331-20040iCE80;AE82..FXT,GT198305-198704

sub48331-12130

48471SEAT, FRONT SPRING, UPPER

main48044-12080iAE8#,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198704

main48044-32010iCE80;AE82..FXT,GT198305-198704

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12300iAE80,81..3D,4D,5D2198305-198505

sub48510-12410

main48510-12330iAE81,82..FXR,SR,SX,ZX198305-198505

sub48510-12420

main48510-12340iCE80198305-198403

sub48510-20162

main48510-12390iAE82..FXT,GT198410-198505

sub48510-12400

main48510-12410iAE81,EE80..CTD,DX,FXD,FXG,FXL,GL,SE198505-198704

sub48510-1A240

main48510-12420iAE81..ZX198505-198704

sub48510-12410

main48510-12440iCE80198505-198704

sub48510-20291

main48510-12460iAE82..FXT,GT198505-198704

sub48510-12461

main48510-20162iCE80198403-198505

sub48510-12470

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12250iCE80198305-198704

main48511-12260iAE82..FXT,GT198410-198704

sub48511-12250

main48511-12280iAE80,81,EE80..CTD,DX,FXD,FXG,FXL,GL,SE198305-198704

sub48511-12290

main48511-12290iAE82..FXR,SE,SR,SX,ZX198305-198704

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12250iCE80198305-198704

main48511-12260iAE82..FXT,GT198410-198704

sub48511-12250

main48511-12280iAE80,81,EE80..CTD,DX,FXD,FXG,FXL,GL,SE198305-198704

sub48511-12290

main48511-12290iAE82..FXR,SE,SR,SX,ZX198305-198704

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12170iAE80,81..3D,4D,5D2198305-198505

sub48520-12280

main48520-12200iAE81,82..FXR,SR,SX,ZX198305-198505

sub48520-12290

main48520-12210iCE80198305-198403

sub48520-20162

main48520-12260iAE82..FXT,GT198410-198505

sub48520-12270

main48520-12280iAE80,81..3D,4D,5D2198505-198704

sub48520-1A110

main48520-12290iAE81..ZX198505-198704

sub48520-12280

main48520-12310iCE80198505-198704

sub48520-20281

main48520-12330iAE82..FXT,GT198505-198704

sub48520-12331

main48520-20162iCE80198403-198505

sub48520-12340

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10080iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main48550-12220iCE80198305-198403

main48550-12230iCE80198403-198505

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12050iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main48552-20050iCE80198305-198505

48568RING, SHOCK ABSORBER PISTON

main48568-12020iAE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198308

main48568-12021iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198308-198505

main48568-22020iCE80198305-198308

main48568-22021iCE80198308-198505

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main48022-14010iCE80198305-198505

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-16010iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main48579-14011iCE80198305-198505

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08054iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198608

main90179-08090iAE8#,CE80,EE80198410-198704

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-12151iAE82..FXT,GT198410-198704

main48609-20050iAE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX;AE80,82,CE80..CTD,DX,FXR,GL,SE,SR,SX,ZX198305-198501

sub48609-20060

main48609-20060iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198501-198704

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAE8#,CE80,EE80198305-198704

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE8#,CE80,EE80198305-198704

48684COVER, BEARING DUST

main48684-32010iAE8#,CE80,EE80198305-198704

48811BAR, STABILIZER, FRONT

main48811-12420iAE82198305-198704

main48811-12440iCE80198305-198704

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iCE80198305-198704

main48815-24010iAE82198305-198704

48817CUSHION, FRONT STABILIZER

main48817-30020iAE82,CE80198305-198704

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE82,CE80198305-198704

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE82,CE80198305-198704

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030iAE82,CE80198305-198704

48824BRACKET, STABILIZER, FRONT

main48824-20040iAE82,CE80198305-198704

9095001269

main90950-01269

9161160822

main91611-60822

9418210800

main94182-10800

36 parts on this diagram · 1 diagram in section
