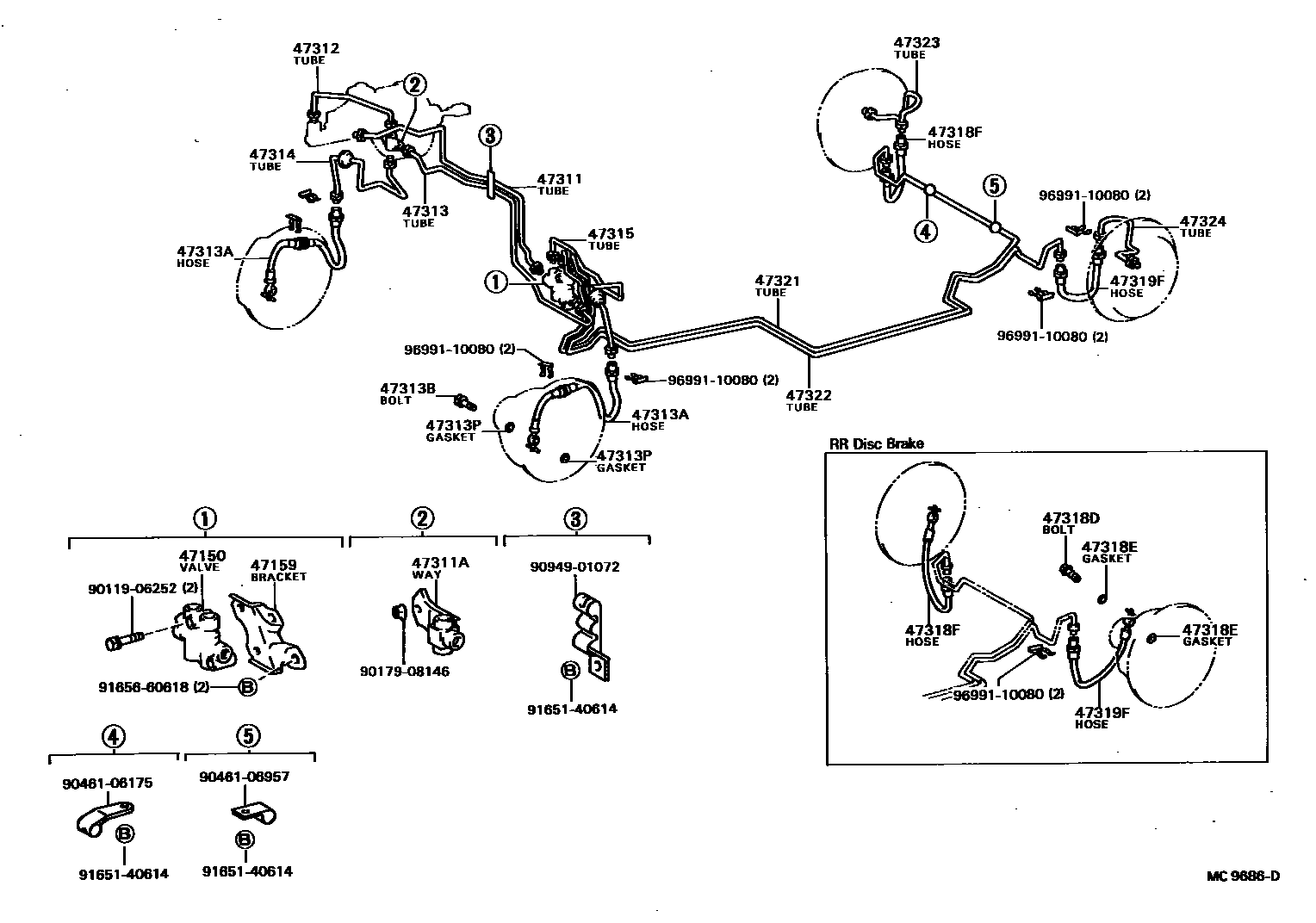

BRAKE TUBE & CLAMP

47150VALVE ASSY, PROPORTIONING

main47150-12050iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198704

sub47150-12230

main47150-12070iAE82..FXT,GT198410-198704

47159BRACKET, PROPORTIONING VALVE

main47159-12040iAE8#,CE80,EE80198305-198704

47311TUBE, FRONT BRAKE, NO.1

main47311-12340iAE8#,CE80,EE80198305-198704

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10164iAE8#,CE80,EE80198305-198704

47312TUBE, FRONT BRAKE, NO.2

main47312-12200iAE8#,CE80,EE80198305-198704

main47312-12240iAE81..4D..3FC..GL198306-198704

*TECS 1

47313TUBE, FRONT BRAKE, NO.3

main47313-12150iAE8#,CE80,EE80198305-198704

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02454iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198306

sub90947-02455

main90947-02455iAE8#,CE80,EE80198306-198704

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE8#,CE80,EE80198305-198704

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE8#,CE80,EE80198305-198704

47314TUBE, FRONT BRAKE, NO.4

main47314-12190iAE8#,CE80,EE80198305-198704

47315TUBE, FRONT BRAKE, NO.5

main47315-12330iAE8#,CE80,EE80198305-198704

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iAE82..FXT,GT198410-198704

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iAE82..FXT,GT198410-198704

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02463iAE82..FXT,GT198410-198704

main90947-02465iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198405-198704

main96950-33505iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02463iAE82..FXT,GT198410-198704

main90947-02465iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198405-198704

main96950-33505iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198405

47321TUBE, REAR BRAKE, NO.1

main47321-12010iAE8#,CE80,EE80198305-198704

47322TUBE, REAR BRAKE, NO.2

main47322-12120iAE8#,CE80,EE80198305-198704

47323TUBE, REAR BRAKE, NO.3

main47323-12140iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198410

main47323-12200iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198410-198704

47324TUBE, REAR BRAKE, NO.4

main47324-12100iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198410

main47324-12160iAE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198410-198704

9011906252

main90119-06252

9017908146

main90179-08146

9046106175

main90461-06175

9046106957

main90461-06957

9094901072

main90949-01072

9165140614

main91651-40614

9165660618

main91656-60618

9699110080

main96991-10080

27 parts on this diagram · 1 diagram in section
