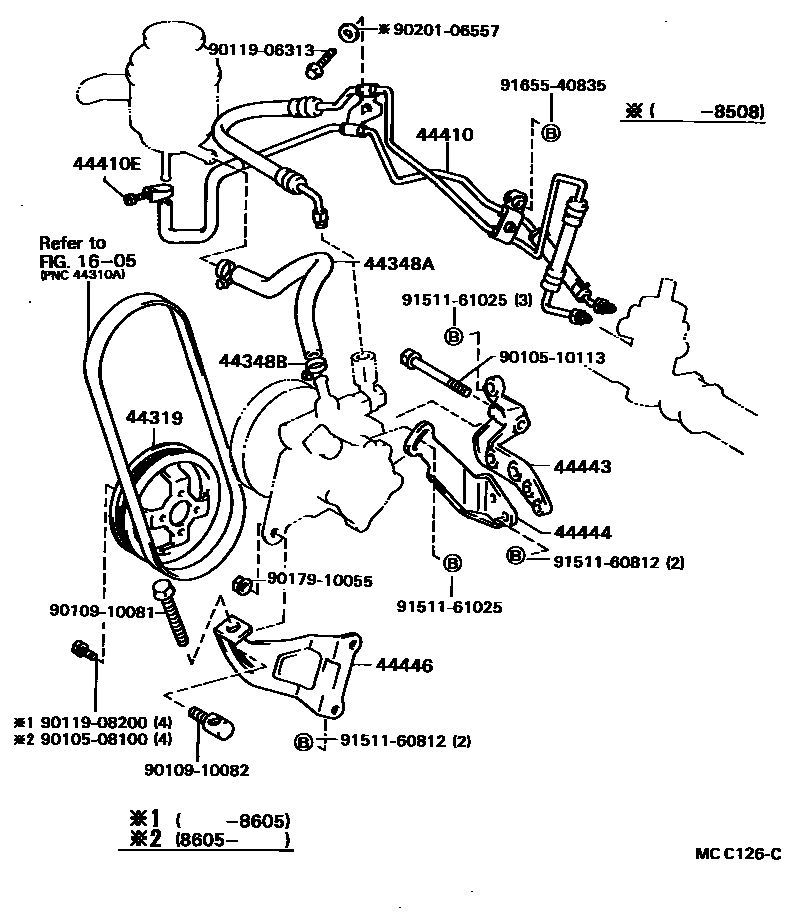

POWER STEERING TUBE

0001 1 0002 1 0004 1 0005 1

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main88451-12030iEE80..DX,FXD,FXL,GL198505-198604

main88451-12031iEE80..DX,FXD,FXL,GL198604-198704

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12020iCE80..GL,SE,SX198305-198704

main44348-12040iAE82..FXT,GT198410-198704

main44348-12050iEE80..DX,FXD,FXL,GL198505-198704

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iCE80..GL,SE,SX198305-198505

44410TUBE ASSY, PRESSURE FEED

main44410-12040iAE80,81..GL,SE198305-198307

TOYOTA

main44410-12041iAE8#..(3D,4D,5D2)..(DX,FXD,FXG,FXL,FXR,GL,SE)198505-198704

TOYOTA

main44410-12090iCE80..GL,SE,SX198305-198505

main44410-12120iAE81..GL,SE198305-198306

KOYO

main44410-12150iAE82..FXT,GT198410-198704

main44410-12210iEE80..DX,FXD,FXL,GL198505-198508

main44410-12211iEE80..DX,FXD,FXL,GL198508-198704

44410ECLAMP(FOR PRESSURE FEED TUBE)

main90460-01001iCE80,EE80..DX,FXD,FXG,FXL,GL,SE198505-198704

44443BRACKET, PUMP

main44443-10010iEE80..DX,FXD,FXL,GL198505-198704

main44443-12050iAE8#..FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main44443-12060iAE82..FXT,GT198410-198704

44444STAY, PUMP, REAR

main44444-10010iEE80..DX,FXD,FXL,GL198505-198704

44446STRUT, ADJUSTING

main44446-10010iEE80..DX,FXD,FXL,GL198505-198704

main44446-12030iAE8#..FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

9010508100

main90105-08100

9010510113

main90105-10113

9010910081

main90109-10081

9010910082

main90109-10082

9011906313

main90119-06313

9011908200

main90119-08200

9017910055

main90179-10055

9020106557

main90201-06557

9151160812

main91511-60812

9151161025

main91511-61025

9165540835

main91655-40835

20 parts on this diagram · 4 diagrams in section
