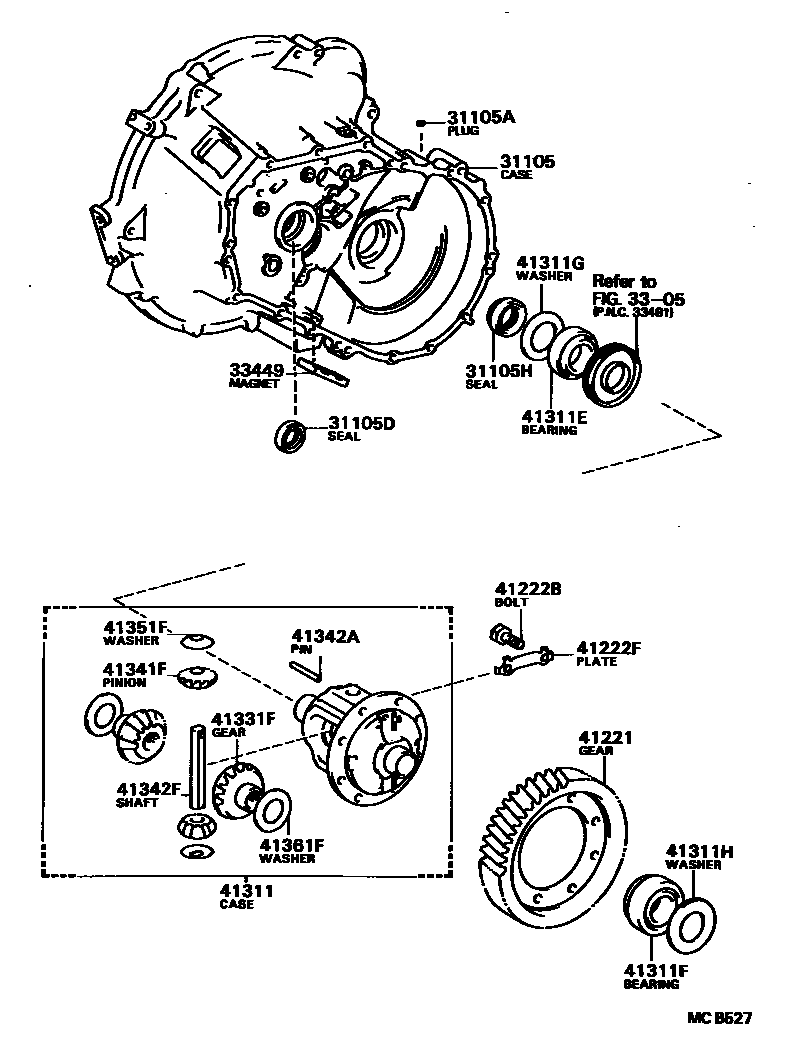

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32011iCE80..5F198305-198404

sub31105-32030

sub11355-63021

sub11355-64032

sub11356-63030

sub11356-64010

sub91621-60610

sub91651-61022

main31105-32012iCE80..5F198404-198507

sub31105-32013

main31105-32013iCE80..5F198507-198607

sub31105-32040

sub11355-63021

sub11355-64032

sub11356-63030

sub11356-64010

sub91621-60610

sub91651-61022

main31105-32014iCE80..5F198607-198704

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31115-10010iEE80..4F198505-198608

sub31115-10011

sub33134-12021

sub90560-48001

main31115-10011iEE80..4F198608-198704

sub31115-12060

sub11355-10011

sub91611-61025

main31115-12010iAE8#..MTM198305-198606

sub31115-12020

main31115-12020iAE8#..MTM198606-198608

sub31115-12021

sub33134-12021

sub90560-48001

main31115-12021iAE8#..MTM198608-198704

sub31115-12040

sub11355-15060

sub11355-55012

sub11361-16020

sub16264-16011

sub16268-15050

sub16268-15060

sub16268-16070

sub16278-16060

sub16322-15030

sub16322-16011

sub90105-10051

sub91611-61025

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAE8#,EE80..MTM198305-198704

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAE8#,EE80..MTM198305-198704

sub90311-25028

main90311-30002iCE80..5F198305-198704

sub90311-30006

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iAE8#,EE80..MTM198305-198704

sub90311-34016

main90311-35007iCE80..5F198305-198310

main90311-35014iCE80..5F198310-198704

sub90311-35026

3305

33449MAGNET, TRANSMISSION

main33449-12010iAE8#,EE80..MTM198305-198704

sub33449-12020

main33449-32010iCE80..5F198305-198704

sub33449-32020

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12160iAE80..4F198305-198704

sub41221-12310

main41221-12160iAE80,81,EE80..MTM198401-198704

*AXC=-522,N=67

sub41221-12310

main41221-12170iAE82..5F..(FXR,SE,SR,SX,ZX)198305-198704

sub41221-12320

main41221-12190iAE81,82..4FC198305-198704

main41221-12200iEE80..CTD,FXD198505-198704

*AXC=-532,N=65,*52

sub41221-12350

main41221-12200iAE81..DX,FXD198305-198505

*AXC=-532,N=65

sub41221-12350

main41221-12210iAE80,81..3FC198305-198704

sub41221-12360

main41221-17010iAE82..5F..(FXT,GT)198410-198704

sub41221-12340

main41221-20200iCE80..4FC198401-198704

main41221-32020iCE80..5F198305-198704

main41221-32030iCE80..5F198305-198505

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iCE80..3FC,5F198305-198704

main90101-11353iAE8#,EE80198305-198704

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAE8#,EE80..MTM198305-198704

main41222-12050iAE8#,EE80..ATM198305-198704

main41222-32010iCE80198305-198704

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAE8#,EE80..MTM198305-198704

sub41301-12041

sub90105-11040

main41301-12050iEE80..3FC198305-198704

sub41301-12051

main41301-12060iAE81,82..4FC198305-198603

sub41301-12090

main41301-12080iAE81..3FC198603-198608

sub41301-12100

main41301-12090iAE8#..4FC198603-198608

sub41301-17020

main41301-12100iAE81..3FC198608-198704

sub41301-12101

main41301-17010iCE80..4FC198608-198704

sub41301-17030

main41301-17020iAE8#..4FC198608-198704

sub41301-17021

main41301-20030iCE80..4FC198401-198510

sub41301-20040

main41301-20040iCE80..4FC198510-198608

sub41301-17010

main41301-32010iCE80..5F198305-198704

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32020iCE80..3FC198305-198410

sub41301-32H00

sub90564-49001

sub90564-49002

sub90564-49003

sub90564-49004

sub90564-49005

sub90564-49006

sub90564-49007

sub90564-49008

sub90564-49009

sub90564-49010

sub90564-49011

sub90564-49012

sub90564-49013

sub90564-49014

sub90564-49015

sub90564-49016

sub90564-49017

sub90564-49018

sub90564-49019

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAE8#,EE80..MTM198608-198704

main90366-40016iCE80..5F198405-198704

main90368-38006iAE8#,EE80..ATM198305-198704

sub90368-38002

main90368-40003iCE80198305-198704

sub90368-40002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iCE80..5F198405-198704

sub90366-40064

main90368-38006iAE80,81,EE80..3FC198305-198704

sub90368-38002

main90368-38010iAE81,82..4FC198305-198704

main90368-40003iCE80..3FC198305-198410

sub90368-40002

main90368-40016iCE80..4FC198401-198704

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iAE80,81,EE80..3FC198305-198704

main90201-41003iAE80,81,EE80..3FC198305-198704

main90201-41004iAE80,81,EE80..3FC198305-198704

main90201-41005iAE80,81,EE80..3FC198305-198704

main90201-41006iAE80,81,EE80..3FC198305-198704

main90201-41007iAE80,81,EE80..3FC198305-198704

main90201-41008iAE80,81,EE80..3FC198305-198704

main90201-41009iAE80,81,EE80..3FC198305-198704

main90201-41010iAE81,82..4FC198305-198704

main90201-41010iAE8#..MTM198305-198704

main90201-41011iAE80,81,EE80..3FC198305-198704

main90201-41012iAE80,81,EE80..3FC198305-198704

main90201-41013iAE80,81,EE80..3FC198305-198704

main90201-41014iAE80,81,EE80..3FC198305-198704

main90201-41015iAE80,81,EE80..3FC198305-198704

main90201-41016iAE80,81,EE80..3FC198305-198704

main90201-41017iAE80,81,EE80..3FC198305-198704

main90201-41018iAE80,81,EE80..3FC198305-198704

main90201-41019iAE80,81,EE80..3FC198305-198704

main90201-41020iAE80,81,EE80..3FC198305-198704

main90201-41021iAE80,81,EE80..3FC198305-198704

main90201-41022iAE80,81,EE80..3FC198305-198704

main90201-41023iAE80,81,EE80..3FC198305-198704

main90201-41045iAE8#,EE80..MTM198308-198704

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iAE80,81,EE80..3FC198305-198704

main90201-41024iAE81,82..4FC198305-198704

main90201-41025iAE8#..4F,4FC,5F198305-198704

main90201-41026iAE8#..4F,4FC,5F198305-198704

main90201-41027iAE81,82..4FC198305-198704

main90201-41028iAE81,82..4FC198305-198704

main90201-41029iAE81,82..4FC198305-198704

main90201-41030iAE81,82..4FC198305-198704

main90201-41031iAE8#..4F,4FC,5F198305-198704

main90201-41032iAE8#..4F,4FC,5F198305-198704

main90201-41033iAE81,82..4FC198305-198704

main90201-41034iAE81,82..4FC198305-198704

main90201-41035iAE8#..4F,4FC,5F198305-198704

main90201-41036iAE81,82..4FC198305-198704

main90201-41037iAE8#..4F,4FC,5F198305-198308

main90201-41038iAE8#..4F,4FC,5F198305-198308

main90201-41039iAE8#..4F,4FC,5F198305-198704

main90201-41040iAE8#..4F,4FC,5F198305-198704

main90201-41041iAE8#..4F,4FC,5F198305-198704

main90201-41042iAE81,82..4FC198305-198704

main90201-41043iAE8#..4F,4FC,5F198305-198704

main90201-41044iAE81,82..4FC198305-198704

main90201-41046iAE8#,EE80..MTM198308-198704

sub90564-41014

main90201-41047iAE8#,EE80..MTM198308-198704

sub90564-41015

main90201-41048iAE8#,EE80..MTM198308-198704

sub90564-41016

main90201-41049iAE8#,EE80..MTM198308-198704

sub90564-41017

main90201-41050iAE8#,EE80..MTM198308-198704

sub90564-41018

main90201-41051iAE8#,EE80..MTM198308-198704

sub90564-41019

main90201-41052iAE8#,EE80..MTM198308-198704

sub90564-41020

main90201-41053iAE8#,EE80..MTM198308-198704

sub90564-41021

main90201-41054iAE8#,EE80..MTM198308-198704

sub90564-41022

main90201-41055iAE8#,EE80..MTM198308-198704

sub90564-41023

main90201-41056iAE8#,EE80..MTM198308-198704

sub90564-41024

main90201-41057iAE8#,EE80..MTM198308-198704

sub90564-41025

main90201-41058iAE8#,EE80..MTM198308-198704

sub90564-41026

main90201-41059iAE8#,EE80..MTM198308-198704

sub90564-41027

main90201-41060iAE8#,EE80..MTM198308-198704

sub90564-41028

main90201-41061iAE8#,EE80..MTM198308-198704

sub90564-41029

main90201-41062iAE8#,EE80..MTM198308-198704

sub90564-41030

main90201-41063iAE8#,EE80..MTM198308-198704

sub90564-41031

main90201-41064iAE8#,EE80..MTM198308-198704

sub90564-41032

main90201-45004iCE80..4FC198401-198704

main90201-45005iCE80..4FC198401-198704

main90201-45006iCE80..4FC198401-198704

main90201-45007iCE80..4FC198401-198704

main90201-45008iCE80..4FC198401-198704

main90201-45009iCE80..4FC198401-198704

main90201-45010iCE80..4FC198401-198704

main90201-45011iCE80..4FC198401-198704

main90201-45012iCE80..4FC198401-198704

main90201-45013iCE80..4FC198401-198704

main90201-45014iCE80..4FC198401-198704

main90201-45015iCE80..4FC198401-198704

main90201-45016iCE80..4FC198401-198704

main90201-45017iCE80..4FC198401-198704

main90201-45018iCE80..4FC198401-198704

main90201-45019iCE80..4FC198401-198704

main90201-45020iCE80..4FC198401-198704

main90201-45021iCE80..4FC198401-198704

main90201-45022iCE80..4FC198401-198704

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12010iAE80,82;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198403

main41331-12011iAE8#,EE80198403-198704

main41331-32010iCE80198305-198704

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAE8#,EE80198502-198704

main41341-22020iAE80,82;AE81..4F..DX;AE81..FXD,FXG,FXL,GL,SE,SX,ZX198305-198502

sub41341-12030

main41341-30011iCE80198305-198704

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAE8#,CE80,EE80198305-198704

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12020iAE8#,EE80198305-198704

sub41342-12140

main41342-39025iCE80198305-198704

sub41342-32010

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iAE8#,EE80198305-198704

main41351-32010iCE80198305-198704

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iAE8#,CE80..ATM198608-198704

main41361-17020iAE8#,CE80..ATM198608-198704

main41361-17030iAE8#,CE80..ATM198608-198704

main41361-17040iAE8#,CE80..ATM198608-198704

main41361-17050iAE8#,CE80..ATM198608-198704

main41361-17060iAE8#,CE80..ATM198608-198704

main41361-22020iAE8#,CE80,EE80..MTM198305-198704

main41361-22030iAE8#,CE80,EE80..MTM198305-198704

main41361-22040iEE80..3FC198305-198704

main41361-22140iEE80..3FC198305-198704

main41361-22150iAE8#,CE80,EE80..MTM198305-198704

main41361-22160iEE80..3FC198305-198704

20 parts on this diagram · 8 diagrams in section
