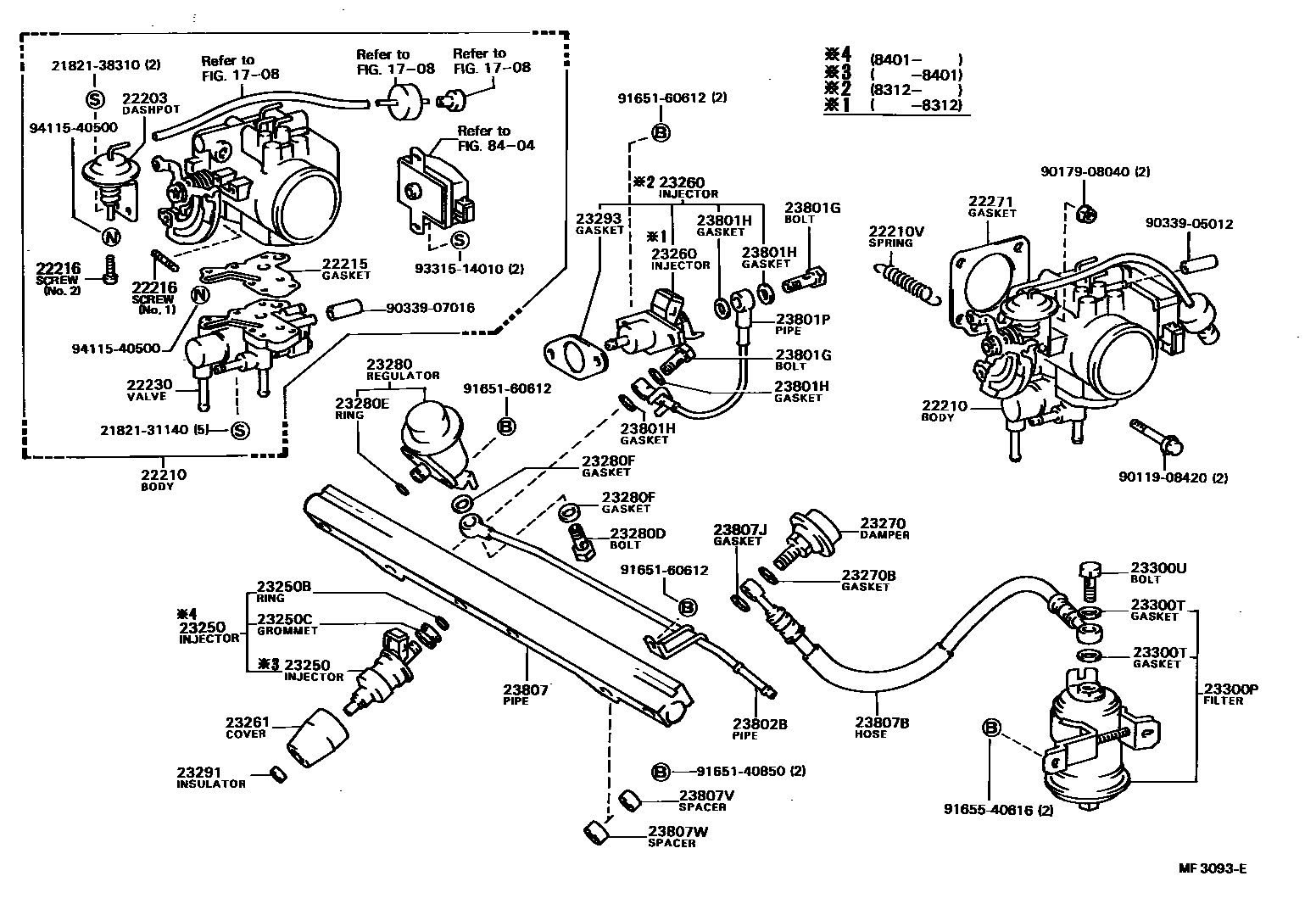

FUEL INJECTION SYSTEM
1708
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210VSPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN)
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
NO.2
NO.1
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23261COVER, INJECTOR
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23207-16020
23270BGASKET(FOR PULSATION DAMPER HOSE)
sub23232-41081
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-42010
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
NO.2
NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23807WSPACER, NO.2(FOR DELIVERY PIPE)
8404
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9011908420
main90119-08420
9017908040
main90179-08040
9033905012
main90339-05012
9033907016
main90339-07016
9165140850
main91651-40850
9165160612
main91651-60612
9165540616
main91655-40616
9331514010
main93315-14010
9411540500
main94115-40500
45 parts on this diagram · 3 diagrams in section
