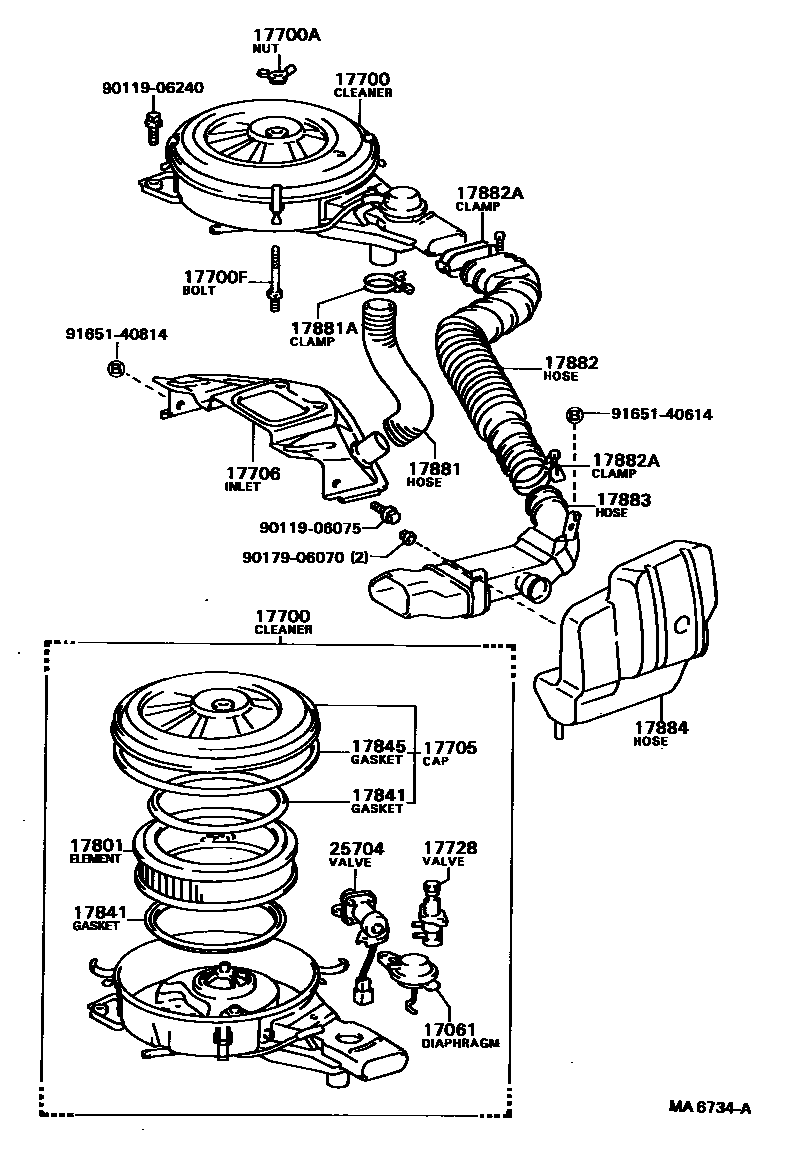

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17061DIAPHRAGM SUB-ASSY

main17061-11010i2ELU..EE80198505-198704

main17061-15030i2ALU,3ALU..AE80,81198305-198505

main17061-15040i3ALU..AE81198505-198704

17700CLEANER ASSY, AIR

main17700-11231i2ELU..EE80198505-198704

main17700-15160i2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX198305-198411

main17700-15161i2ALU,3ALU..AE80,81198411-198505

main17700-15210i3ALU..AE81198505-198704

main17700-16080i4AELU..AE82198305-198704

main17700-16280i4AGELU..AE82198410-198704

main17700-64040i1CL..CE80198305-198604

sub17700-64041

main17700-64041i1CL..CE80198604-198704

sub17700-64111

main17700-64080i1CL..CE80198409-198411

sub17700-64040

17700ANUT, WING(FOR AIR CLEANER)

main90175-06009i2ALU,3ALU..AE80,81198305-198704

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06039i2ALU,3ALU..AE80,81198305-198505

main90116-06142i3ALU..AE81198505-198704

17705CAP SUB-ASSY, AIR CLEANER

main17705-11170i2ELU..EE80198505-198704

sub17705-11360

main17705-15070i2ALU,3ALU..AE80,81198305-198505

main17705-15100i3ALU..AE81198505-198704

main17705-16010i4AELU..AE82198305-198704

sub17705-74120

main17705-16100i4AGELU..AE82198410-198704

main17705-64030i1CL..CE80198305-198604

main17705-64080i1CL..CE80198604-198704

sub17705-64030

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17902-15080i2ALU,3ALU..AE80,81198305-198704

sub17902-15081

17728VALVE, THERMOSTATIC

main17728-11020i2ELU..EE80198505-198704

main17728-15040i2ALU,3ALU..AE80,81198305-198704

main17728-15060i2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..GL,SE,SX,ZX198307-198410

sub17728-15040

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-10030i3ALU..AE81198505-198704

sub17801-11100

main17801-15010i2ALU,3ALU..AE80,81198305-198505

main17801-64010i1CL..CE80198305-198704

main17801-64020i1CL..CE80198409-198411

sub17801-64010

main17801-74010i4A#..AE82198305-198704

sub17801-55010

17841GASKET, FILTER ELEMENT

main17841-15010i2ALU,3ALU..AE80,81198305-198505

main17845-10020i3ALU..AE81198505-198704

17845GASKET, AIR CLEANER CAP

main17845-10020i2ELU..EE80198505-198704

main17845-37020i2ALU,3ALU..AE80,81198305-198505

*G,L=1060

17881HOSE, AIR CLEANER, NO.1

main17880-64030i1CL..CE80198305-198704

main17881-10030i2ELU..EE80198505-198704

sub17881-10031

main17881-16010i4AELU..AE82198305-198704

main17881-16090i4AGELU..AE82198410-198704

main17881-16110i3ALU..AE81198505-198704

main17881-63010i2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX198305-198502

sub17881-74040

main17881-74040i2ALU,3ALU..AE80,81198502-198505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90929-01073i2ALU..AE80;3ALU..AE81..4F..DX;3ALU..AE81..FXD,FXG,FXL,GL,SE,SX,ZX198305-198411

sub90929-01117

main90929-01117i2ALU,3ALU..AE80,81198411-198508

main90929-01145i3ALU..AE81198508-198704

main96111-10650i1CL..CE80198305-198704

main96111-10710i4AELU..AE82198305-198704

main96111-10750i4AGELU..AE82198410-198704

17882HOSE, AIR CLEANER, NO.2

main17880-12040i2ELU..EE80198505-198704

main17880-12050i4AGELU..AE82198410-198704

main17881-12050i1CL..CE80198305-198704

main17881-12060i2ALU,3ALU..AE80,81198305-198704

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01005i2ALU,3ALU..AE80,81198305-198704

AIR CLEANER SIDE

main90460-01034i2ELU..EE80198505-198704

main96111-10650i2ALU,3ALU..AE80,81198305-198704

BODY SIDE

17883HOSE, AIR CLEANER, NO.3

main17880-12030i4AELU..AE82198305-198704

main17882-12020i2ALU,3ALU..AE80,81198305-198704

main17884-12020i4AGELU..AE82198410-198704

17884HOSE, AIR CLEANER, NO.4

main17881-12080i4AGELU..AE82198410-198704

main17883-12020i2ALU,3ALU..AE80,81198305-198704

main17884-12010i1CL..CE80198305-198704

25704VALVE SUB-ASSY, ELECTRIC AIR CONTROL

main25704-15030i2ALU,3ALU..AE80,81198305-198505

main25704-15060i3ALU..AE81198505-198704

9011906075

main90119-06075

9011906240

main90119-06240

9017906070

main90179-06070

9165140614

main91651-40614

9165140814

main91651-40814

22 parts on this diagram · 6 diagrams in section
