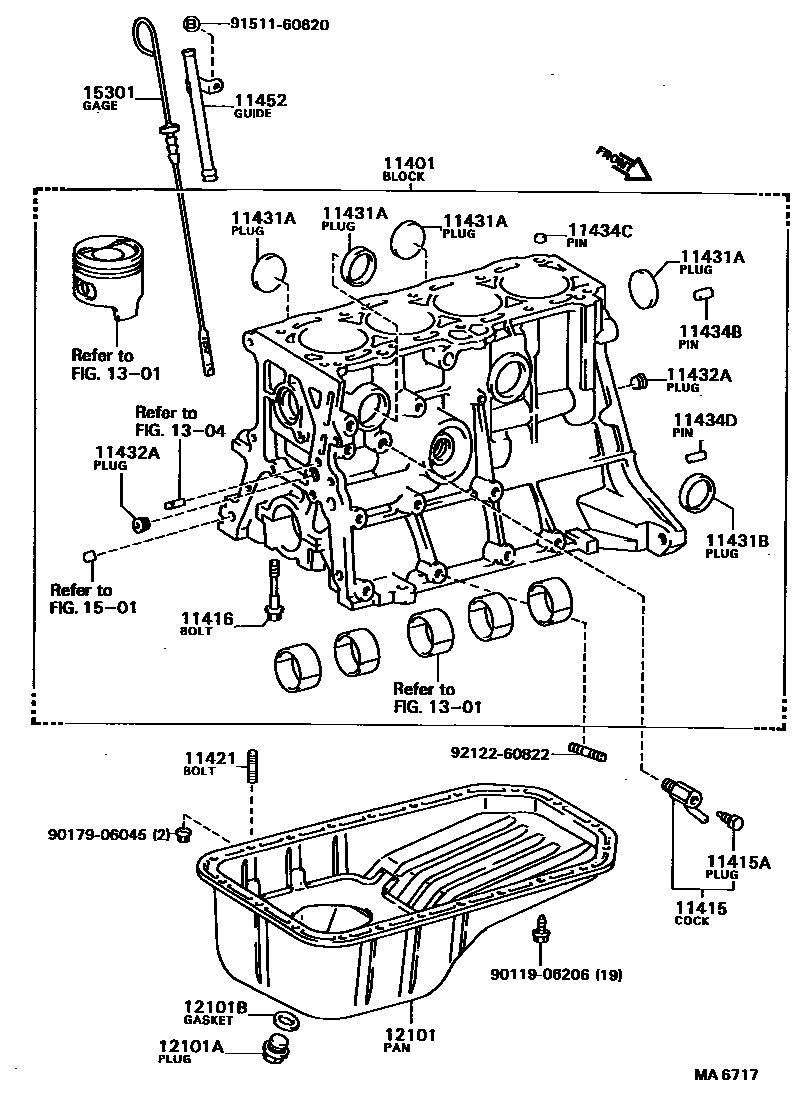

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19175i2ALU..AE80198305-198505

sub11401-19176

main11401-19185i3ALU..AE81198305-198704

sub11401-19186

main11401-19195i4AELU..AE82198305-198704

main11401-19215i4AGELU..AE82198410-198704

sub11401-19216

main11401-19296i2ELU..EE80198505-198507

sub11401-19297

main11401-19297i2ELU..EE80198507-198508

sub11401-19298

sub90105-10144

sub90387-11035

main11401-19298i2ELU..EE80198508-198704

sub11401-19299

main11401-69115i1CL..CE80198305-198307

sub11401-69116

sub11115-64050

main11401-69116i1CL..CE80198307-198505

sub11401-69117

main11401-69205i1CL..CE80198505-198608

main11401-69206i1CL..CE80198608-198609

sub11401-69207

main11401-69207i1CL..CE80198609-198704

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i1CL..CE80198305-198406

sub90910-09129

main90910-09079i3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX198305-198406

sub90910-09088

main90910-09088i2ALU,3ALU,4A#..AE8#198406-198704

sub90345-52003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i1CL..CE80198305-198406

sub90910-09087

main90341-12012i2ELU..EE80198505-198704

main90910-09087i2ALU,3ALU,4A#..AE8#198406-198704

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i2ALU,3ALU,4A#..AE8#198305-198704

*10-1.25PX61-18

main90910-02019i2ELU..EE80198505-198704

main90910-02061i1CL..CE80198305-198704

*12-1.25PX80-24

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i2ELU..EE80198505-198704

main90116-06022i3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX198305-198407

main90116-06049i2ALU,3ALU,4A#..AE8#198407-198704

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i2ELU..EE80198505-198704

OD=25

main96411-43500i2ALU,3ALU,4A#..AE8#198305-198704

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i1CL..CE80198305-198704

OD=30

main96411-44000i2ALU,3ALU,4A#..AE8#198305-198704

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i2ALU,3ALU,4A#..AE8#198305-198704

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i2ELU..EE80198612-198704

main90250-10052i2ELU..EE80198505-198612

main90250-10113i2ALU,3ALU,4A#..AE8#198305-198704

main90253-15001i2ELU..EE80198505-198704

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i2ALU,3ALU,4A#..AE8#198305-198704

main90253-14001i1CL..CE80198305-198704

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i2ALU,3ALU,4A#..AE8#198305-198704

main90250-06068i1CL..CE80198305-198704

11452GUIDE, OIL LEVEL GAGE

main11452-10010i2ELU..EE80198505-198704

main11452-15010i2ALU,3ALU,4A#..AE8#198305-198704

main11452-64030i1CL..CE80198305-198704

12101PAN SUB-ASSY, OIL

main12101-10010i2ELU..EE80198505-198704

sub12101-10011

main12101-15040i3ALU..AE81..4F..DX;2ALU,4AELU..AE80,82;3ALU..AE81..GL,SE,SX,ZX198305-198407

sub12101-15090

sub90341-12012

sub90430-12011

main12101-15090i2ALU,3ALU,4A#..AE8#198407-198704

main12101-64020i1CL..CE80198305-198704

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2ELU..EE80198407-198704

main90341-18089i1CL..CE80198305-198704

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i2ALU,3ALU,4A#..AE8#198407-198607

sub90430-12019

main90430-12019i3ALU,4A#..AE8#198607-198704

sub90430-12028

main90430-18013i1CL..CE80198505-198704

sub90430-18023

main90430-18244i1CL..CE80198305-198505

sub90430-18023

1301

1304

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-10020i2ELU..EE80198505-198602

main15301-10021i2ELU..EE80198602-198704

sub15301-10022

main15301-15030i2ALU,3ALU,4A#..AE8#198305-198704

main15301-64010i1CL..CE80198305-198704

sub15301-64040

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620

9212260822

main92122-60822

23 parts on this diagram · 5 diagrams in section
