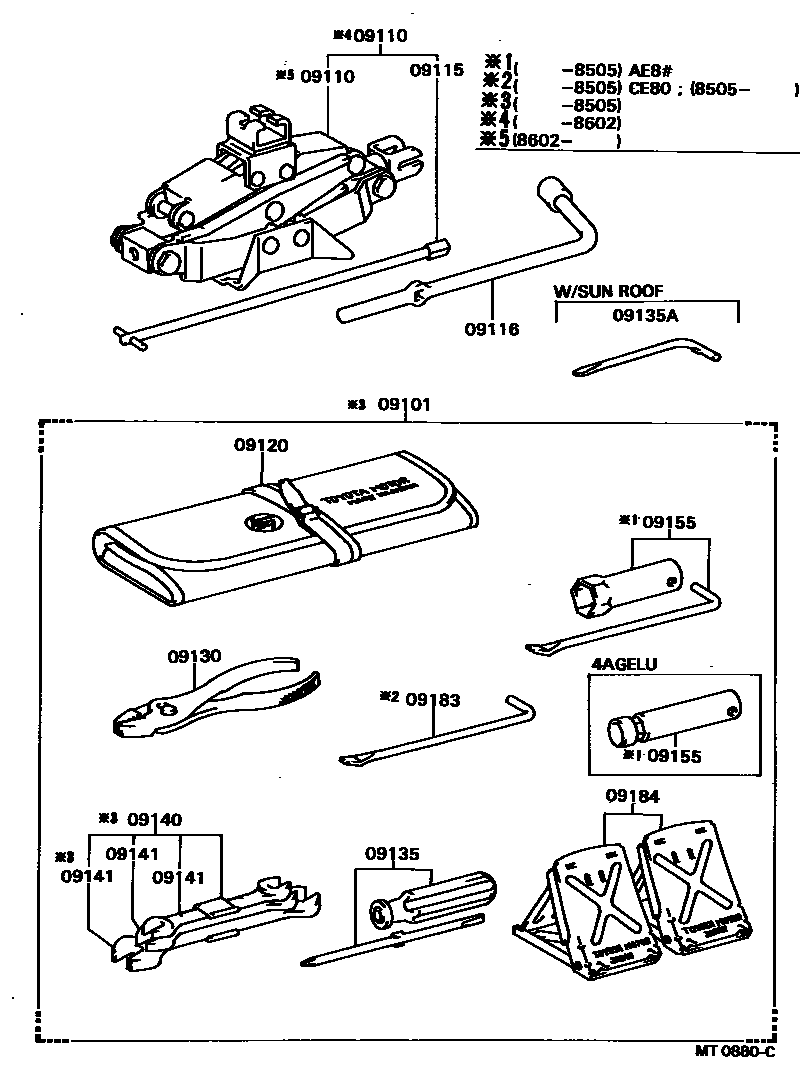

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12070iCE80198305-198505

main09102-12074iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

main09102-12076iAE82..FXT,GT198410-198505

09110JACK ASSY

main09111-12070iAE8#,CE80,EE80198602-198704

sub09111-22H00

main09118-12040iAE81,82,CE80,EE80198410-198602

sub09111-12070

main09118-20011iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198410

sub09111-20041

sub09115-32010

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198312

main09115-32010iAE8#,CE80,EE80198312-198704

09116LEVER, JACK HANDLE

main09116-16010iAE8#,CE80,EE80198305-198704

09120BAG, TOOL

main09120-10030iAE8#,CE80,EE80198505-198704

main09120-12011iAE8#,CE80198305-198505

09130PLIERS

main99913-11500iAE8#,CE80,EE80198305-198704

09135DRIVER, SCREW

main99915-10700iAE8#,CE80,EE80198305-198704

09135ABIT, SCREW DRIVER

main09135-00012iAE81,CE80..SE;AE82..FXR,FXT,SE,SX,ZX;AE81,CE80..(3D,5D2,5D3)..(FXG,GL,SX,ZX)198305-198704

W/SUN ROOF

09140SPANNER SET

main09140-12011iAE8#,CE80198305-198505

09141SPANNER

main99914-10810iAE8#,CE80,EE80198305-198704

main99914-11012iAE8#,CE80198305-198505

main99914-11214iAE8#,CE80,EE80198505-198704

main99914-11417iAE8#,CE80198305-198505

09155WRENCH, SPARK PLUG

main09155-00130iAE82..FXT,GT198410-198505

main09155-44020iAE8#..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,SR,SX,ZX198305-198505

09183WRENCH, WHEEL CAP

main09183-00010iCE80198305-198704

09184STOPPER, WHEEL

main09184-00010iAE8#,CE80,EE80198305-198704

13 parts on this diagram · 1 diagram in section
