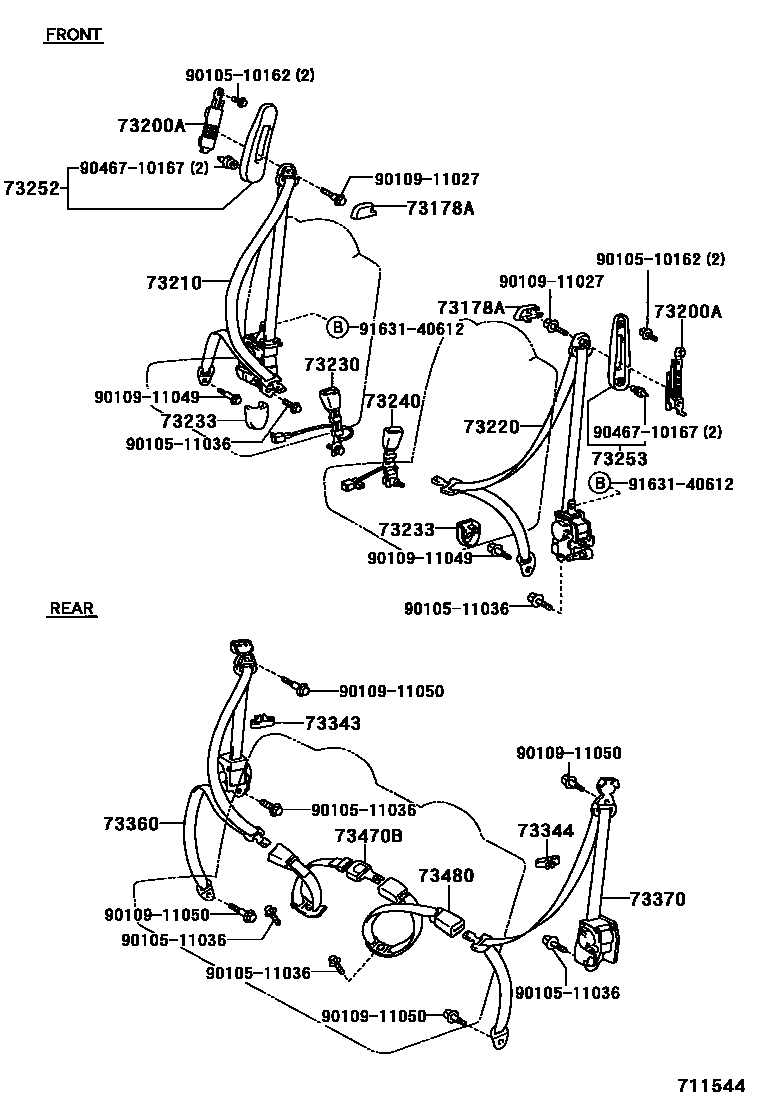

SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33010-A1×2iNCP19200001-200008

IVORY,TRIM4#

main73178-33020-A1×2iNCP19200008

IVORY,TRIM4#

main73178-33020-C0×2iNCP19200008-200108

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52020-C0×2iNCP19200001-200008

BLACK,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52160-A1iNCP19200001-200008

IVORY,TRIM4#

main73210-52300-A0iNCP19200008

IVORY,TRIM4#

main73210-52300-C0iNCP19200008-200108

BLACK,TRIM2#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52180-A1iNCP19200001-200008

IVORY,TRIM4#

main73220-52320-A0iNCP19200008

IVORY,TRIM4#

main73220-52320-C0iNCP19200008-200108

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52100-A0iNCP19200001

IVORY,TRIM4#

main73230-52100-C0iNCP19200008-200108

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1×2iNCP19200001

IVORY,TRIM4#

main73233-33010-C0×2iNCP19200008-200108

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52110-A0iNCP19200001

IVORY,TRIM4#

main73230-52110-C0iNCP19200008-200108

BLACK,TRIM2#

73252COVER, SHOULDER BELT ANCHOR ADJUST, RH

main73252-52010-C0iNCP19200008-200108

BLACK,TRIM2#

main73252-52010-E0iNCP19200001

TERRCOTTA,TRIM4#

73253COVER, SHOULDER BELT ANCHOR ADJUST, LH

main73253-52010-C0iNCP19200008-200108

BLACK,TRIM2#

main73253-52010-E0iNCP19200001

TERRCOTTA,TRIM4#

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-52010iNCP19200001

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73343-52010iNCP19200001

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-52090-A1iNCP19200001

IVORY,TRIM4#

main73360-52090-C0iNCP19200008-200108

BLACK,TRIM2#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-52050-A1iNCP19200001

IVORY,TRIM4#

main73370-52050-C0iNCP19200008-200108

BLACK,TRIM2#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-52100-A0iNCP19200001

IVORY,TRIM4#

main73470-52100-C0iNCP19200008-200108

BLACK,TRIM2#

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-52120-A0iNCP19200001

IVORY,TRIM4#

main73480-52120-C0iNCP19200008-200108

BLACK,TRIM2#

9010510162

main90105-10162

9010511036

main90105-11036

9010911027

main90109-11027

9010911049

main90109-11049

9010911050

main90109-11050

9046710167

main90467-10167

9163140612

main91631-40612

22 parts on this diagram · 1 diagram in section
