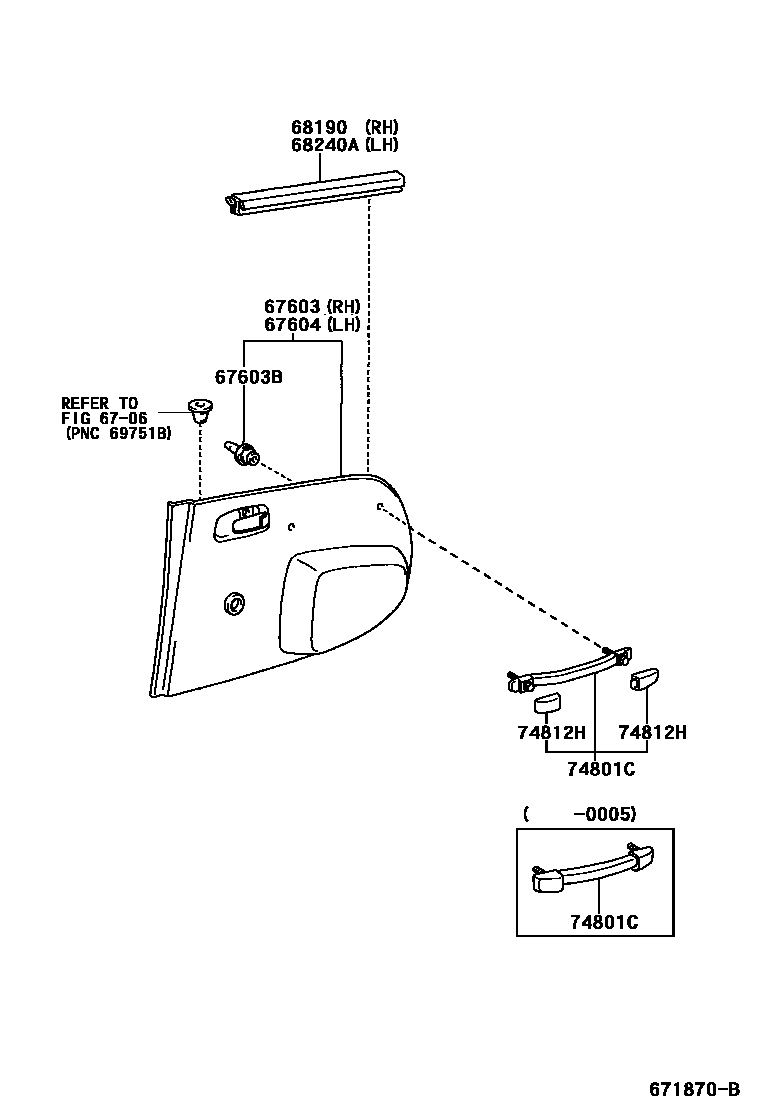

REAR DOOR PANEL & GLASS

0001 1 0002 1

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-52260-C0iNCP19200008-200108

BLACK,TRIM2#

main67630-52260-E0iNCP19200001

TERRCOTTA,TRIM4#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-10161iNCP19200001

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-52260-C0iNCP19200008-200108

BLACK,TRIM2#

main67640-52260-E0iNCP19200001

TERRCOTTA,TRIM4#

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-52010iNCP19200001

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-52010iNCP19200001

74801CHANDLE SUB-ASSY, DOOR PULL

main74801-52010-E0iNCP19200001-200005

TAN,TRIM4#

main74801-52011-B0iNCP19200008-200108

MD.GRAY,TRIM2#

main74801-52011-E0iNCP19200005

TAN,TRIM4#

74812HCOVER, DOOR PULL HANDLE

main74812-52011iNCP19200005

8 parts on this diagram · 2 diagrams in section
