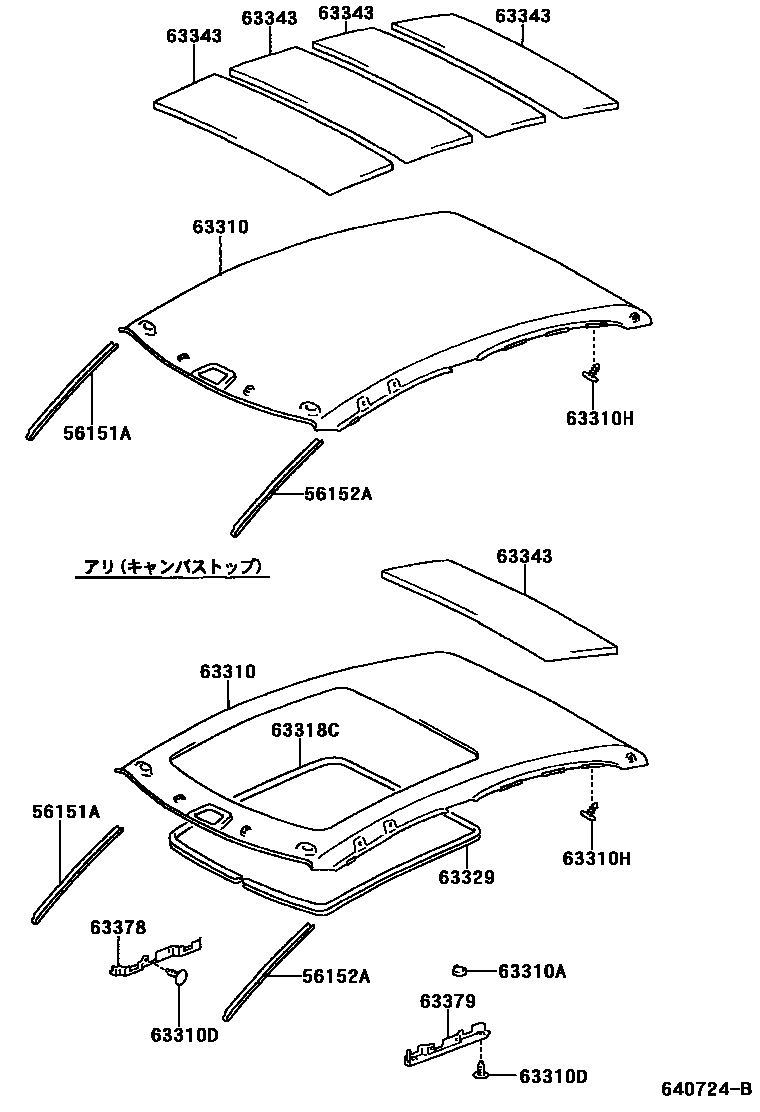

ROOF HEADLINING & SILENCER PAD

56151AMOULDING, FRONT WINDOW, INNER RH

main56151-52020iNCP19200001-200112

56152AMOULDING, FRONT WINDOW, INNER LH

main56152-52020iNCP19200001-200112

63310HEADLINING ASSY, ROOF

main63310-52380-B1iNCP19200108

LT. GRAY,TRIM4#

main63310-52390-B1iNCP19200001-200008

63310APLUG, HOLE(FOR ROOF HEADLINING ASSY)

main90950-01436-B6×9iNCP19200108

LT.GRAY,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-08015-B0×8iNCP19200001-200008

LT.GRAY,TRIM4#

63310HCLIP(FOR ROOF HEADLINING)

main90467-06177-B5×7iNCP19200008-200108

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-52030-B0iNCP19200001-200008

63329MOULDING, SUN ROOF OPENING TRIM, NO.2

main63329-52020-B0iNCP19200001-200008

LT.GRAY,TRIM4#

63343PAD, ROOF SILENCER, NO.3

main63343-12050iNCP19200001

63378COVER, ROOF HEADLINING REAR TRIM, RH

main63378-52010-B0iNCP19200001-200008

LT.GRAY,TRIM4#

63379COVER, ROOF HEADLINING REAR TRIM, LH

main63379-52010-B0iNCP19200001-200008

LT.GRAY,TRIM4#

11 parts on this diagram · 1 diagram in section
