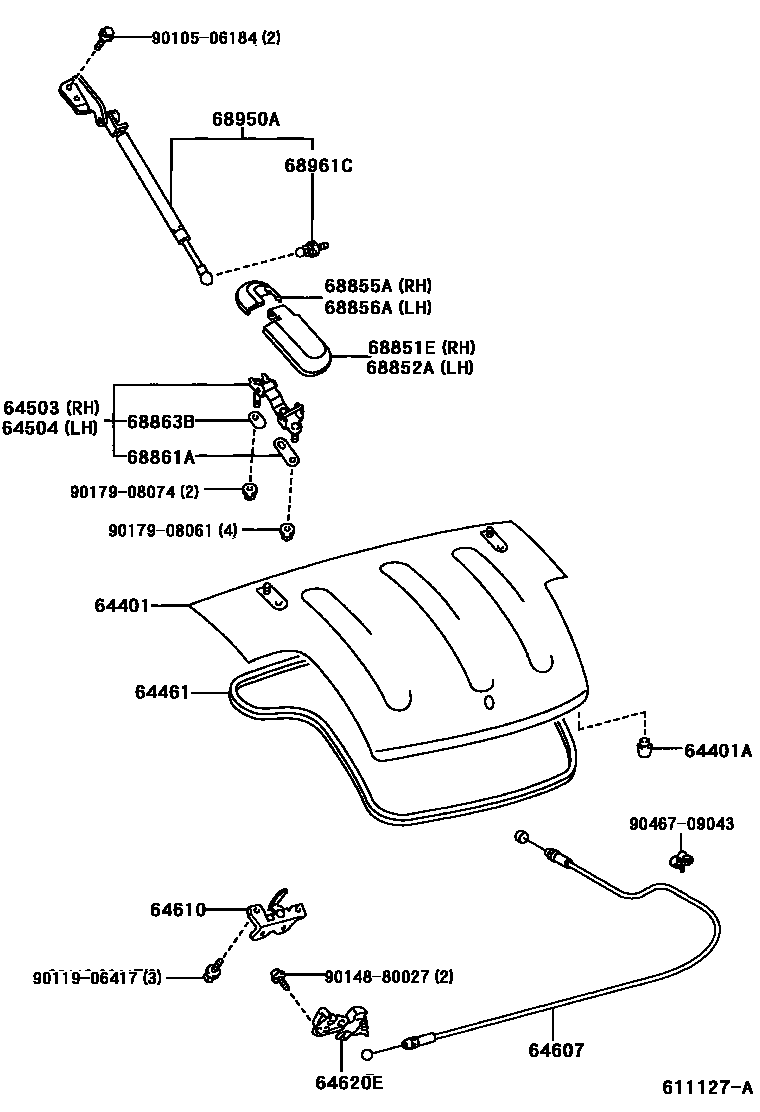

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
68851ECOVER, BACK DOOR UPR HINGE MALE, RH
SUPER WHITE 2,040
COOL WHITE,069
SILVER ME.,1C0
BLACK,202
GOLD ME.,581
YELLOW GREEN ME. OP,6Q9
DK.GREEN MC.,6Q7
BLUE ME.,8N0
LAVENDER,947
68852ACOVER, BACK DOOR HINGE, LH
SUPER WHITE 2,040
COOL WHITE,069
SILVER ME.,1C0
BLACK,202
PALE ROSE ME. OP,3N7
GOLD ME.,581
YELLOW GREEN ME. OP,6Q9
DK.GREEN MC.,6Q7
BLUE ME.,8N0
LAVENDER,947
68855APROTECTOR, BACK DOOR HINGE, UPPER RH
COOL WHITE,069
SILVER ME.,1C0
BLACK,202
PALE ROSE ME. OP,3N7
GOLD ME.,581
YELLOW GREEN ME. OP,6Q9
DK.GREEN MC.,6Q7
BLUE ME.,8N0
LAVENDER,947
68856APROTECTOR, BACK DOOR HINGE, UPPER LH
SUPER WHITE 2,040
COOL WHITE,069
SILVER ME.,1C0
BLACK,202
GOLD ME.,581
YELLOW GREEN ME. OP,6Q9
DK.GREEN MC.,6Q7
BLUE ME.,8N0
LAVENDER,947
68861APAD, BACK DOOR HINGE
68863BPAD, BACK DOOR HINGE
68950ASTAY ASSY, LUGGAGE DOOR
68961CBOLT, LUGGAGE DOOR STAY
9010506184
main90105-06184
9011906417
main90119-06417
9014880027
main90148-80027
9017908061
main90179-08061
9017908074
main90179-08074
9046709043
main90467-09043
22 parts on this diagram · 1 diagram in section
