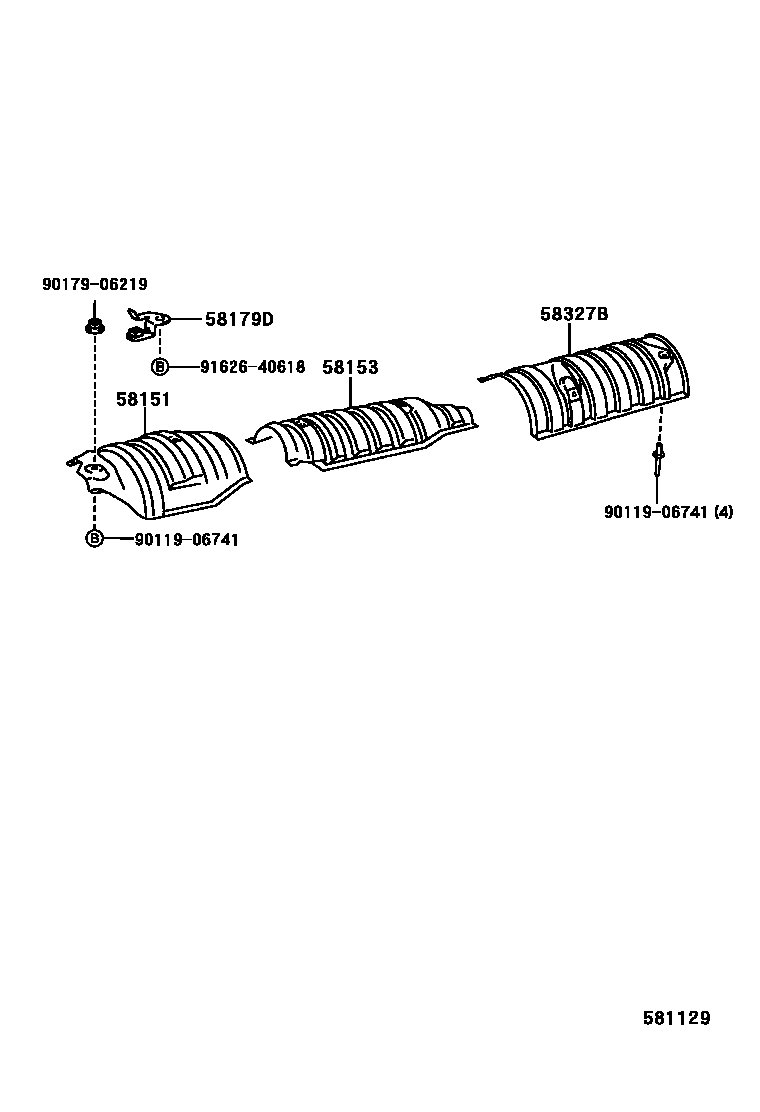

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52010iNCP19200001

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52011iNCP19200001

58179DBRACKET, CLAMP FLOOR

main58179-52010iNCP19200001

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52050iNCP19200001

9011906741

main90119-06741

9017906219

main90179-06219

9162640618

main91626-40618

7 parts on this diagram · 1 diagram in section
