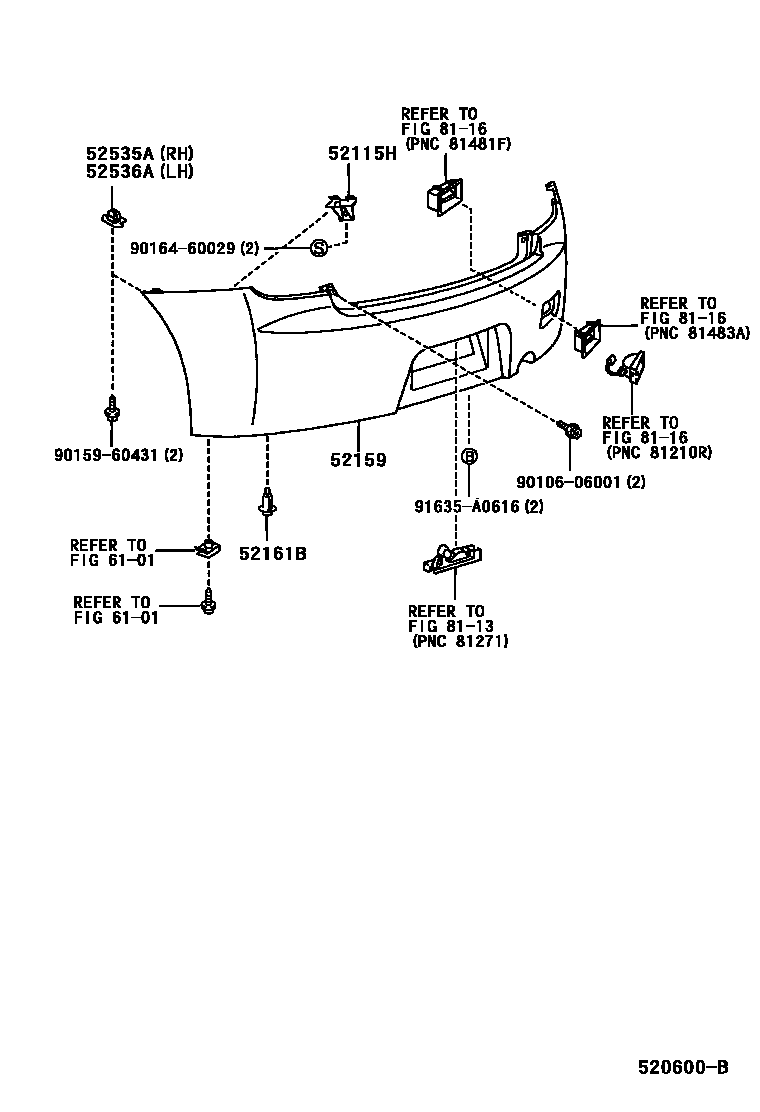

REAR BUMPER & BUMPER STAY

52115HSUPPORT, REAR BUMPER SIDE

main52115-17020×2iNCP19200001

52159COVER, REAR BUMPER

main52159-52150-A0iNCP19200001

SUPER WHITE 2,040

main52159-52150-A1iNCP19200101

VANILLA WHITE,067

main52159-52150-A2iNCP19200101

COOL WHITE,069

main52159-52150-A3iNCP19200108-200112

main52159-52150-B0iNCP19200001

SILVER ME.,1C0

main52159-52150-C0iNCP19200001

BLACK,202

main52159-52150-D0iNCP19200012-200101

main52159-52150-D1iNCP19200110-200112

main52159-52150-D2iNCP19200108-200109

main52159-52150-F0iNCP19200008

GOLD ME.,581

main52159-52150-G0iNCP19200002-200008

YELLOW GREEN ME. OP,6Q9

main52159-52150-G1iNCP19200008

DK.GREEN MC.,6Q7

main52159-52150-J0iNCP19200002-200008

BLUE ME.,8N0

main52159-52150-J1iNCP19200108-200109

main52159-52150-K0iNCP19200101

LAVENDER,947

main52159-52160-A0iNCP19200001

main52159-52160-A1iNCP19200110-200112

main52159-52160-A2iNCP19200101

main52159-52160-A3iNCP19200108-200112

main52159-52160-B0iNCP19200001

main52159-52160-C0iNCP19200001

main52159-52160-D0iNCP19200110-200112

main52159-52160-D1iNCP19200008

main52159-52160-D2iNCP19200108-200109

main52159-52160-F0iNCP19200008

main52159-52160-G0iNCP19200002-200008

main52159-52160-G1iNCP19200008

main52159-52160-J0iNCP19200002-200008

main52159-52160-J1iNCP19200108-200109

main52159-52160-K0iNCP19200101

52161BPIECE, REAR BUMPER

main52161-16010×2iNCP19200001

52535ARETAINER, REAR BUMPER SIDE, RH

main52535-30150iNCP19200001

52536ARETAINER, REAR BUMPER SIDE, LH

main52535-30150iNCP19200001

6101SIDE MEMBER

→ Go to FIG 61-01

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8116REAR FOG LAMP

→ Go to FIG 81-16

9010606001

main90106-06001

9015960431

main90159-60431

9016460029

main90164-60029

91635A0616

main91635-A0616

12 parts on this diagram · 1 diagram in section
