Toyota WILL VI — FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
51961EHOOK, FRONT
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52127CCOVER, FRONT BUMPER HOLE
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5302HOOD & FRONT FENDER
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
8103FRONT TURN SIGNAL LAMP
9011906451
9015960431
9016460029
9017906127
9017908068
91635A0616
19 parts on this diagram · 1 diagram in section

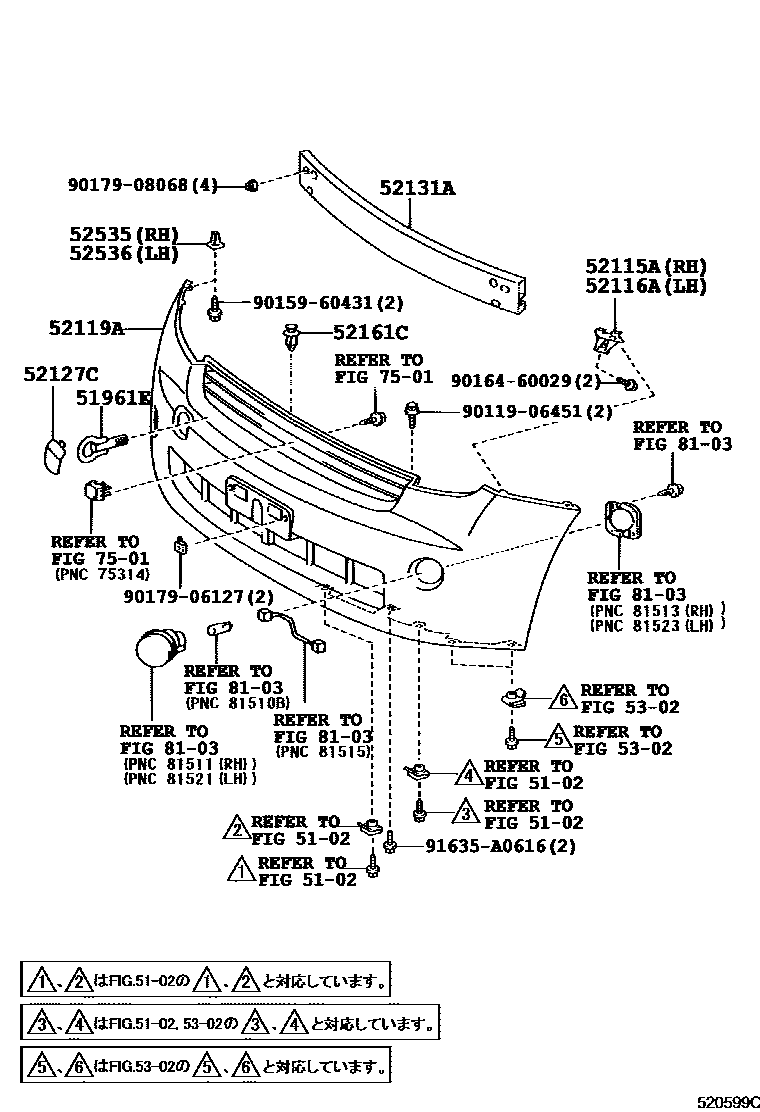

FRONT BUMPER & BUMPER STAY for Toyota WILL VI
This section contains 19 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota WILL VI. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, HOOK, FRONT, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER.
