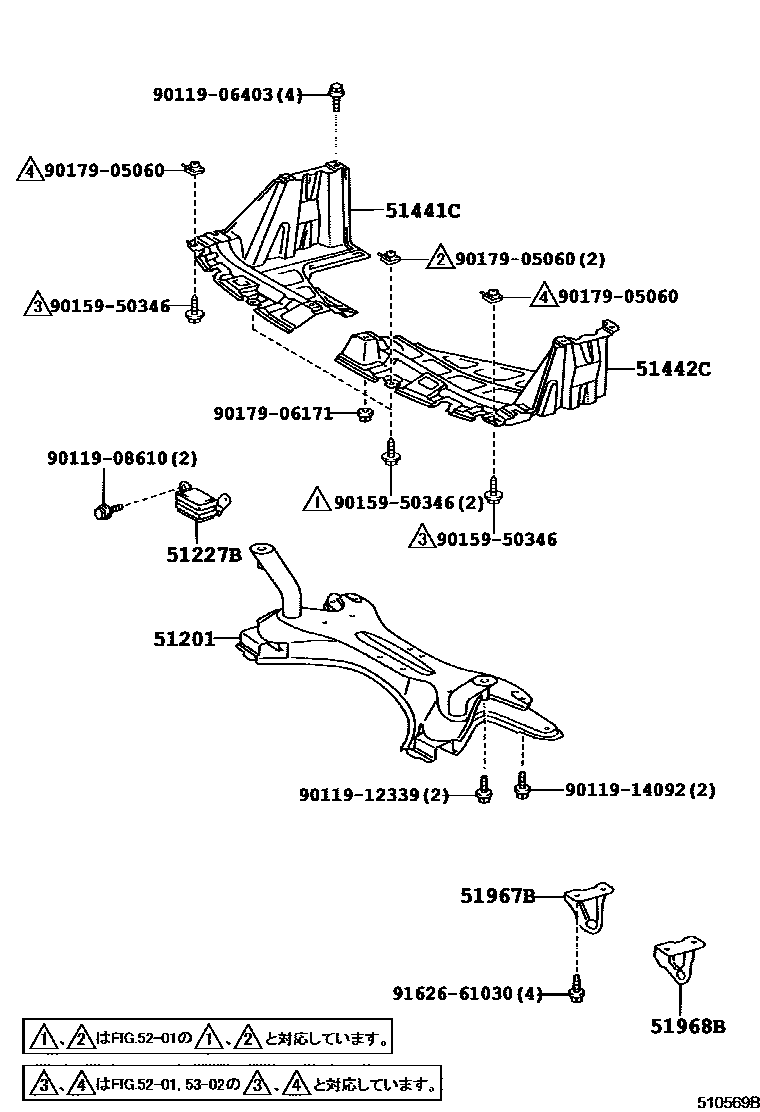

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52011iNCP19200001

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52010iNCP19200001

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNCP19200001

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP19200001

51967BHOOK, TRANSPORT, REAR RH

main51967-10100iNCP19200001

51968BHOOK, TRANSPORT, REAR LH

main51968-52030iNCP19200001

9011906403

main90119-06403

9011908610

main90119-08610

9011912339

main90119-12339

9011914092

main90119-14092

9015950346

main90159-50346

9017905060

main90179-05060

9017906171

main90179-06171

9162661030

main91626-61030

14 parts on this diagram · 1 diagram in section
