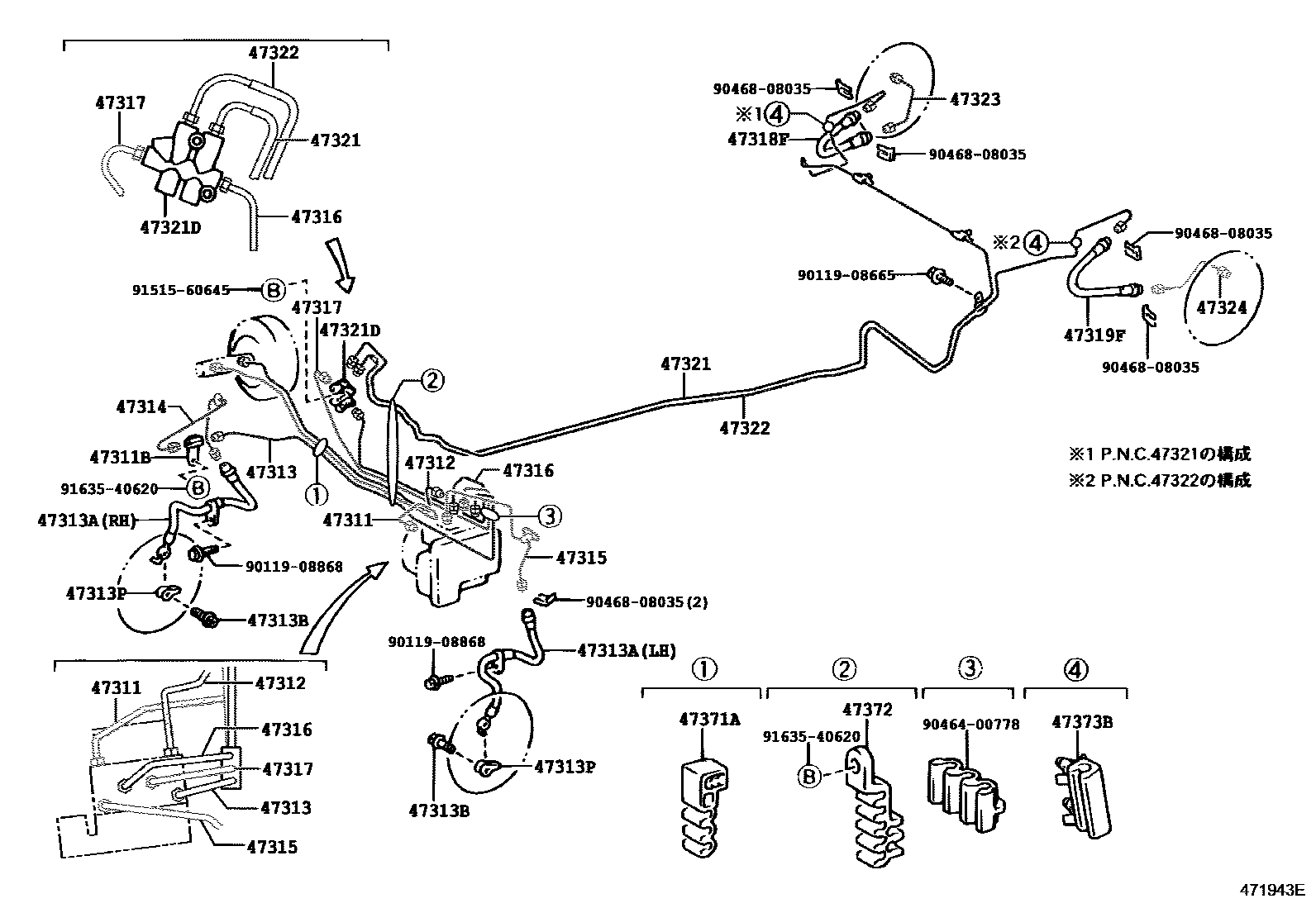

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-52100iNCP19200001

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10169iNCP19200001

47312TUBE, FRONT BRAKE, NO.2

main47312-52100iNCP19200001

47313TUBE, FRONT BRAKE, NO.3

main47313-52011iNCP19200001

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C31iNCP19200001

main90947-02C32iNCP19200001

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCP19200001

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCP19200001

47314TUBE, FRONT BRAKE, NO.4

main47314-52011iNCP19200001

47315TUBE, FRONT BRAKE, NO.5

main47315-52011iNCP19200001

47316TUBE, FRONT BRAKE, NO.6

main47316-52011iNCP19200001

47317TUBE, FRONT BRAKE, NO.7

main47317-52011iNCP19200001

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C30iNCP19200001

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C30iNCP19200001

47321TUBE, REAR BRAKE, NO.1

main47321-52011iNCP19200001-200010

main47321-52012iNCP19200010-200112

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iNCP19200001

47322TUBE, REAR BRAKE, NO.2

main47322-52011iNCP19200001-200010

main47322-52012iNCP19200010-200112

47323TUBE, REAR BRAKE, NO.3

main47323-52011iNCP19200001-200010

main47323-52012iNCP19200010

47324TUBE, REAR BRAKE, NO.4

main47324-52011iNCP19200001-200010

main47324-52012iNCP19200010

47371ACLAMP, BRAKE TUBE, NO.1

main47371-52010iNCP19200001

47372CLAMP, BRAKE TUBE, NO.2

main47372-52010iNCP19200001

47373BCLAMP, BRAKE TUBE, NO.3

main47371-52030×2iNCP19200001-200010

9011908665

main90119-08665

9011908868

main90119-08868

9046400778

main90464-00778

9046808035

main90468-08035

9151560645

main91515-60645

9163540620

main91635-40620

27 parts on this diagram · 3 diagrams in section
