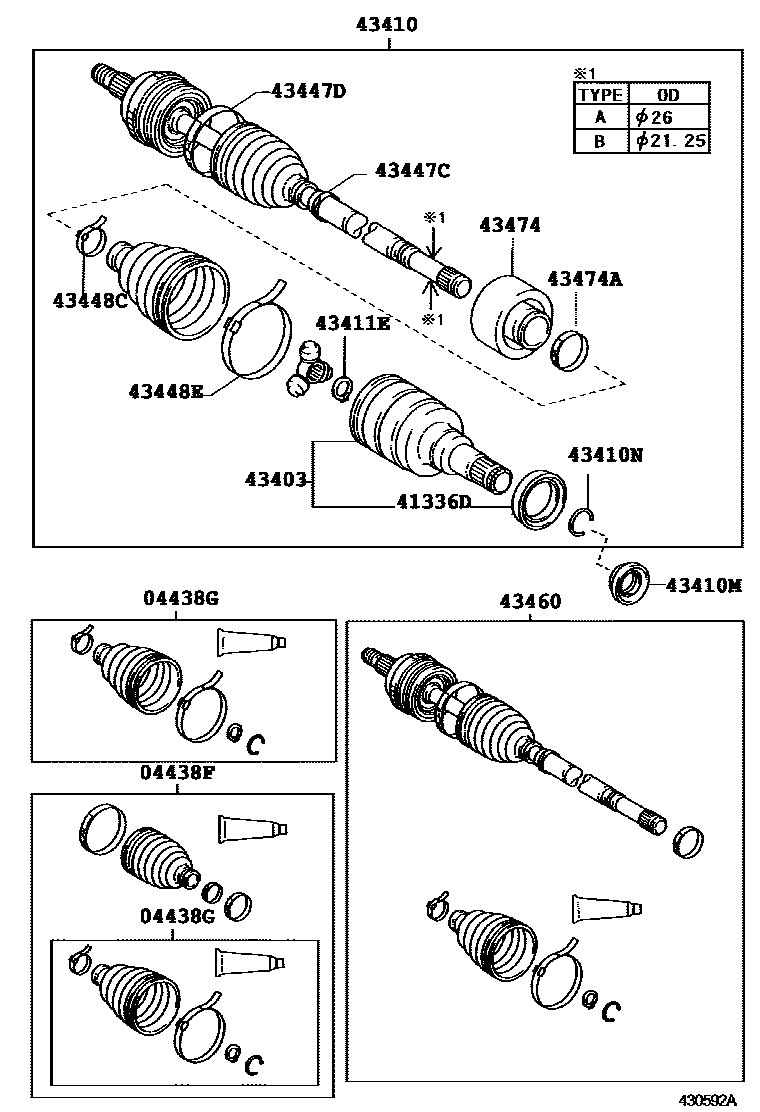

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-52040iNCP19200001

sub04438-52041

main04438-52071iNCP19200001

sub04427-52240

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-16101iNCP19200001

sub04437-52160

main04438-52030iNCP19200001

sub04437-52190

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP19200001

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10011iNCP19200001

sub43403-0W031

main43403-16020iNCP19200001

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52020iNCP19200001

sub43410-52130

main43410-52070iNCP19200001

sub43410-52071

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCP19200001

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP19200001

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-16020iNCP19200001

main90520-22001iNCP19200001

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16170iNCP19200001

sub42345-52240

main42345-52110iNCP19200001

sub42345-52260

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16180iNCP19200001

main42345-52100iNCP19200001

sub42345-52250

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16140iNCP19200001

main90949-01078iNCP19200001

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16150iNCP19200001

main90949-01146iNCP19200001

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59045iNCP19200001

sub43460-59365

main43460-59065iNCP19200001-200112

sub43460-59066

43474DAMPER, DRIVE SHAFT

main43474-52010iNCP19200001

sub43474-52040

main43474-52030iNCP19200001

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNCP19200001

15 parts on this diagram · 2 diagrams in section
