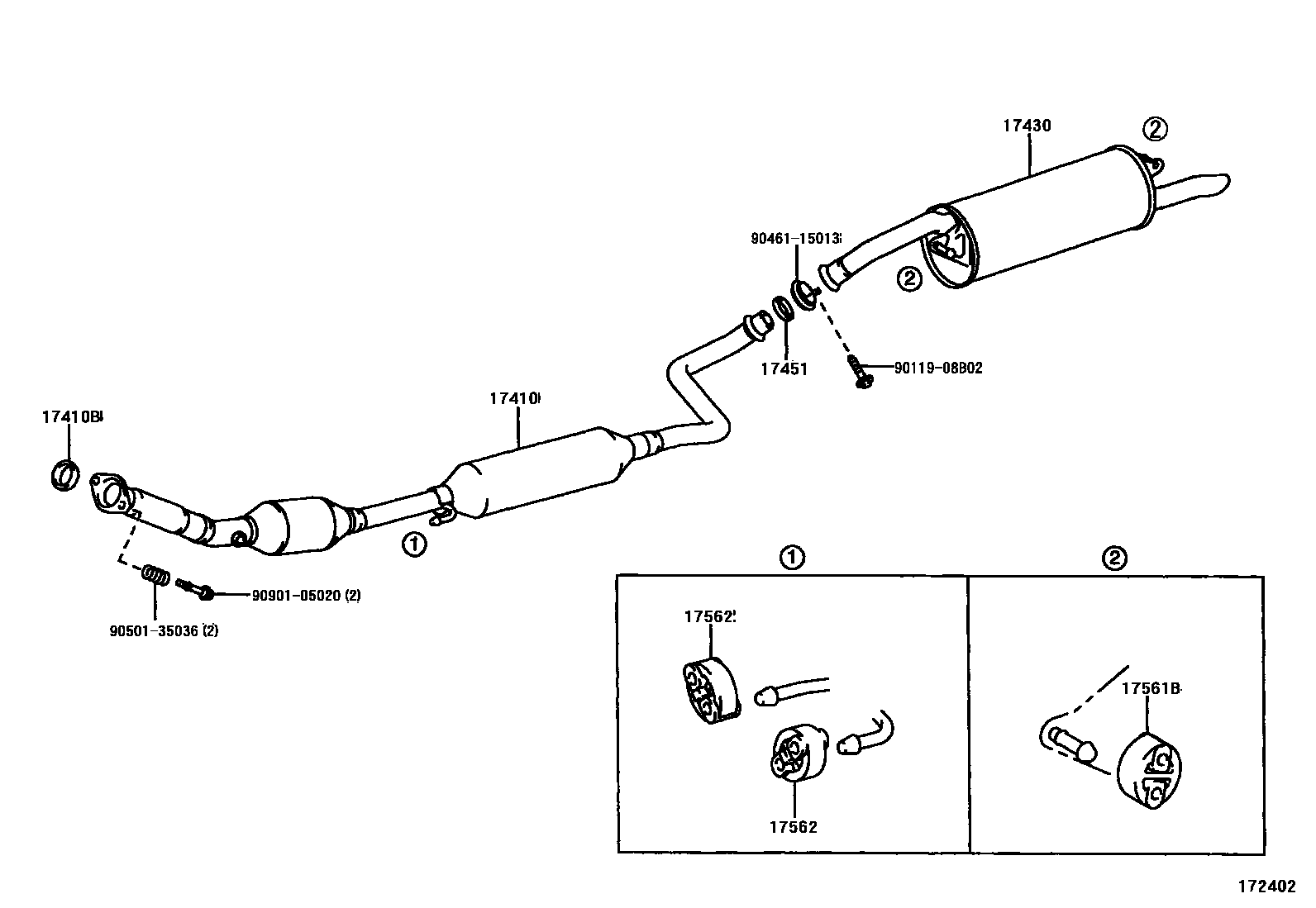

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21050i2NZFE..NCP19200001-200008

main17410-21320i2NZFE..NCP19200008

17410BGASKET, EXHAUST PIPE

main17451-21030i2NZFE..NCP19200001

17430PIPE ASSY, EXHAUST, TAIL

main17430-21070i2NZFE..NCP19200001

17451GASKET, EXHAUST PIPE

main90917-06082i2NZFE..NCP19200001

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-74280×2i2NZFE..NCP19200001

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040×2i2NZFE..NCP19200001

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

10 parts on this diagram · 1 diagram in section
