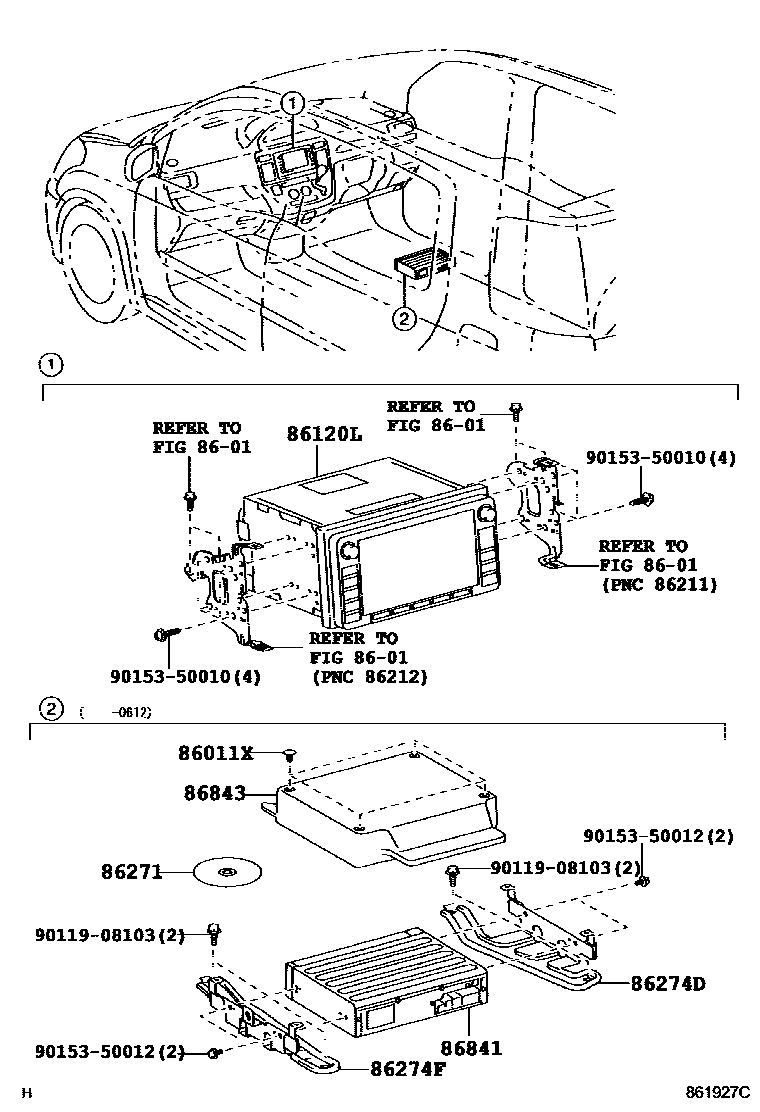

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86011XCLIP, NAVIGATION

main90467-05112-C0×4iNCZ2#200304-200612

main90467-05112-E0×4iNCZ2#200304-200612

86120LRECEIVER ASSY, NAVIGATION

main86100-46010iNCZ2#200612-200703

main86100-46011iNCZ2#200704-200708

main86100-46012iNCZ2#200709-200801

main86100-46013iNCZ2#200802-200808

main86100-46014iNCZ2#200809-200903

main86100-46015iNCZ2#200904-200908

main86100-46016iNCZ2#200909-201008

main86120-46030iNCZ2#200304-200308

main86120-46031iNCZ2#200308-200612

86271DISC, DISC PLAYER

main86271-13060iNCZ2#200304-200308

main86271-13061iNCZ2#200308-200404

main86271-13062iNCZ2#200404-200409

main86271-13063iNCZ2#200409-200509

main86271-13064iNCZ2#200509-200604

main86271-13065iNCZ2#200604-200609

main86271-13066iNCZ2#200609-200612

86274DBRACKET, DISC PLAYER

main86274-46010iNCZ2#200304-200612

86274FBRACKET, DISC PLAYER, NO.2

main86274-46020iNCZ2#200304-200612

86841COMPUTER, NAVIGATION

main86841-13030iNCZ2#200304-200308

main86841-13031iNCZ2#200308-200612

86843COVER, NAVIGATION COMPUTER

main86804-46010iNCZ2#200304-200612

9011908103

main90119-08103

9015350010

main90153-50010

9015350012

main90153-50012

11 parts on this diagram · 1 diagram in section
