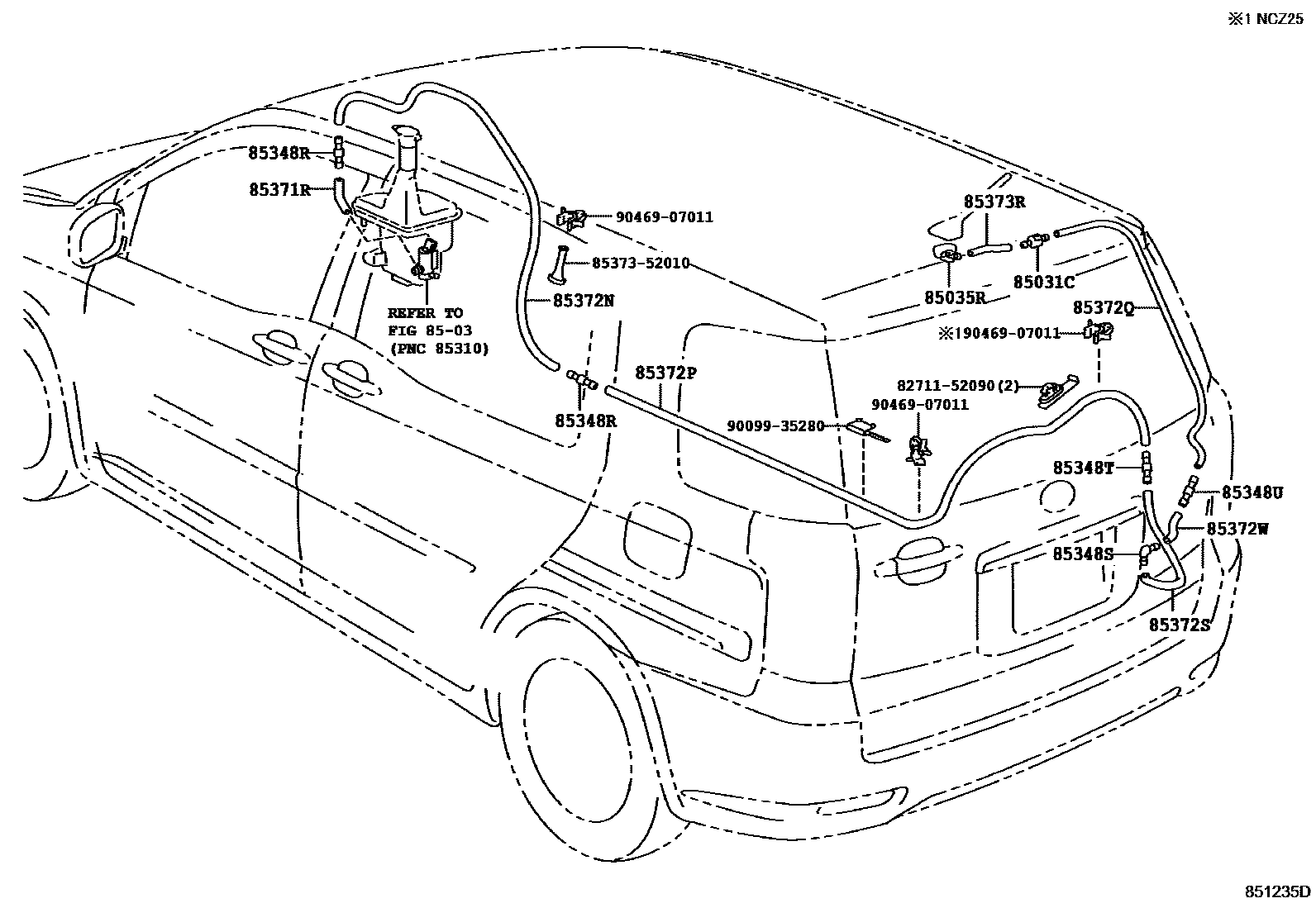

REAR WASHER
8503WINDSHIELD WASHER
85031CVALVE SUB-ASSY, WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-52010
9009935280
main90099-35280
9046907011
main90469-07011
18 parts on this diagram · 2 diagrams in section
