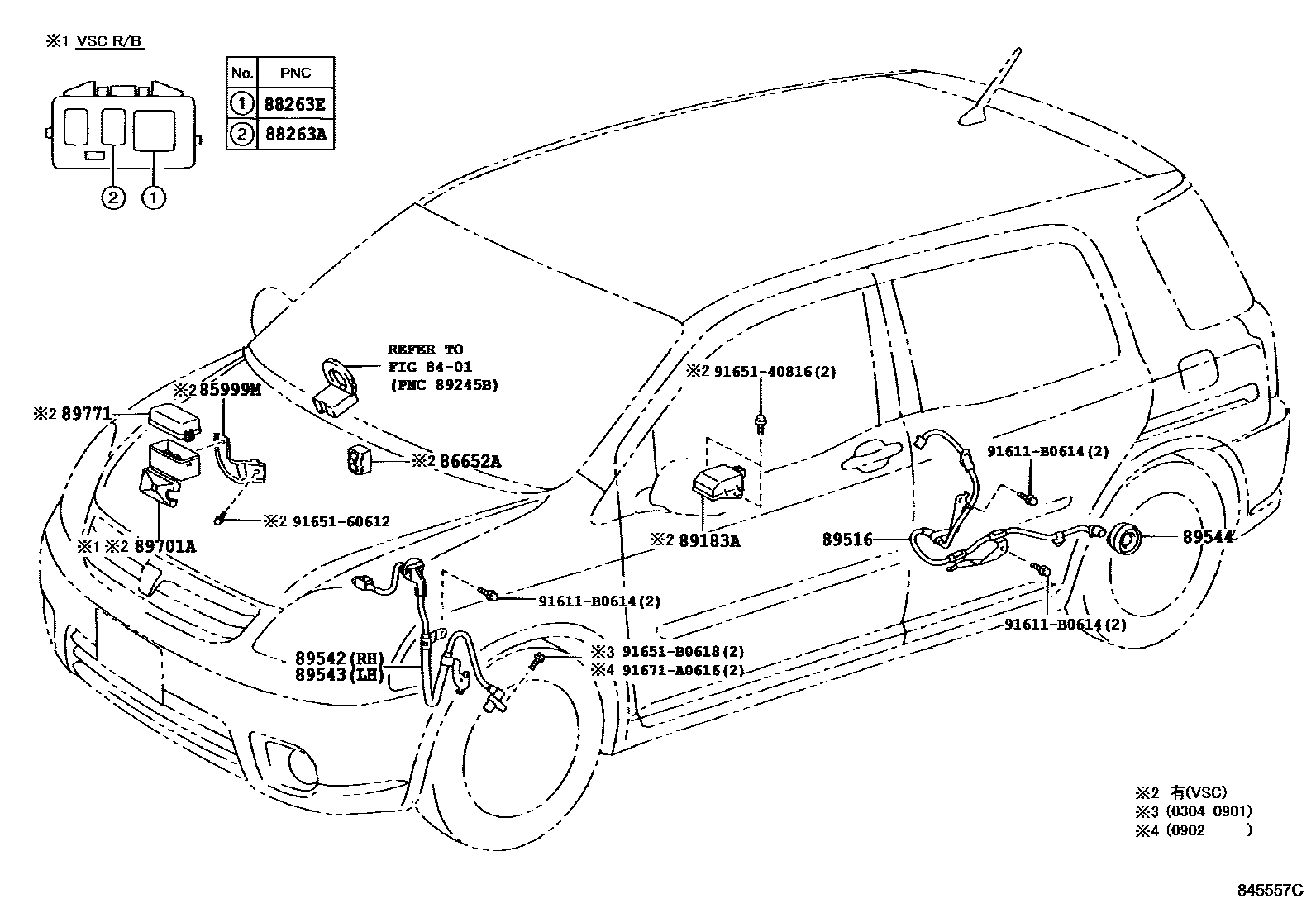

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85999MBRACKET, RELAY

main85999-52020iNCZ20200304

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iNCZ20200304

88263ARELAY, SKID CONTROL

main88263-32070iNCZ20200304-201104

88263ERELAY, SKID CONTROL NO.2

main88263-21010iNCZ20200304-201104

89183ASENSOR, YAWRATE

main89183-48010iNCZ20200304

89516WIRE, SKID CONTROL SENSOR

main89516-52010iNCZ20200304

main89516-52020iNCZ20200304

89542SENSOR, SPEED, FRONT RH

main89542-52010iNCZ2#200304-201104

89543SENSOR, SPEED, FRONT LH

main89543-52010iNCZ2#200304-201104

89544SENSOR, SKID CONTROL

main89544-12010×2iNCZ20200304-201104

main89544-52030×2iNCZ20200304-201104

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-21020iNCZ20200304-201104

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020iNCZ20200304-201104

91611B0614

main91611-B0614

9165140816

main91651-40816

9165160612

main91651-60612

91651B0618

main91651-B0618

91671A0616

main91671-A0616

17 parts on this diagram · 2 diagrams in section
