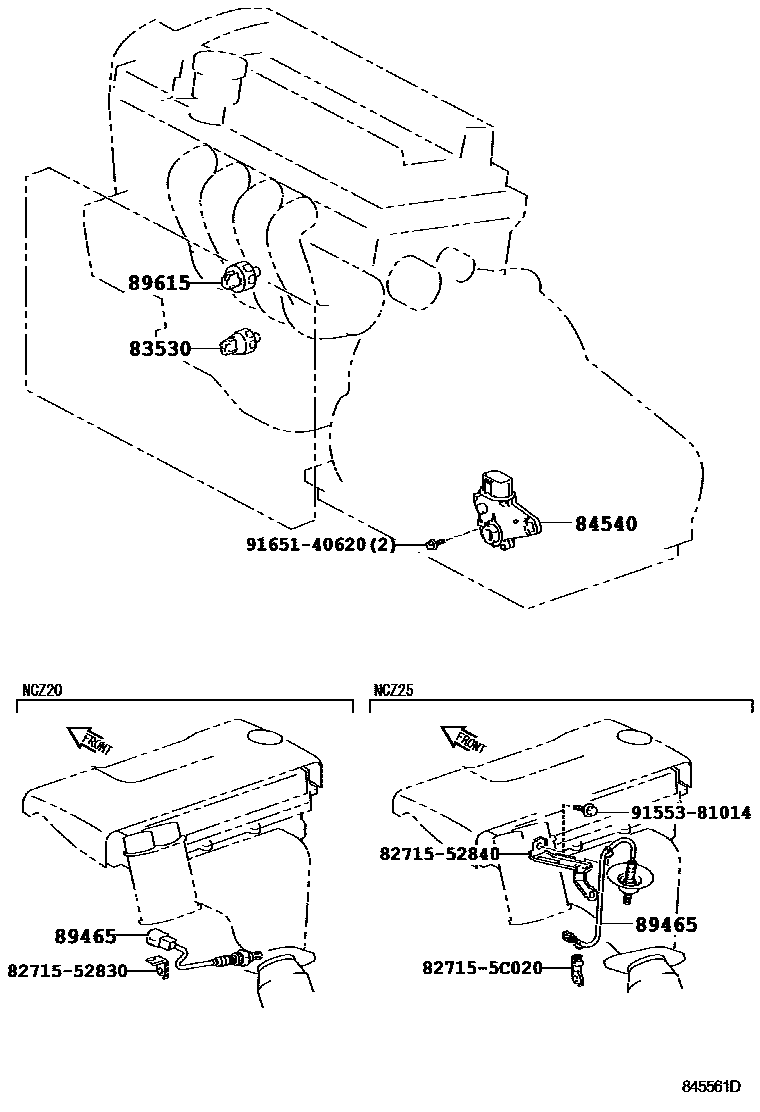

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1�������� �������� 0005 1��� 0006 1������������ 0007 1�������� & �����-��� ���� 0008 1���,�-�,��� & ����-��

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCZ2#200304

main83530-60020iNCZ2#200304

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCZ2#200304-201104

89465SENSOR, OXYGEN

main89465-20810iNCZ20200304-201008

main89465-46020iNCZ20201008

main89465-52210iNCZ25200304-201008

main89465-52620iNCZ25201008

89615SENSOR, KNOCK CONTROL

main89615-20090iNCZ2#201008

main89615-52030iNCZ2#200309-201008

main89615-52040iNCZ2#200304-200309

8271552830BRACKET,WIRING HARNESS CLAMP

main82715-52830

8271552840BRACKET,WIRING HARNESS CLAMP

main82715-52840

827155C020BRACKET,WIRING HARNESS CLAMP

main82715-5C020

9155381014

main91553-81014

9165140620

main91651-40620

9 parts on this diagram · 8 diagrams in section
