FOG LAMP

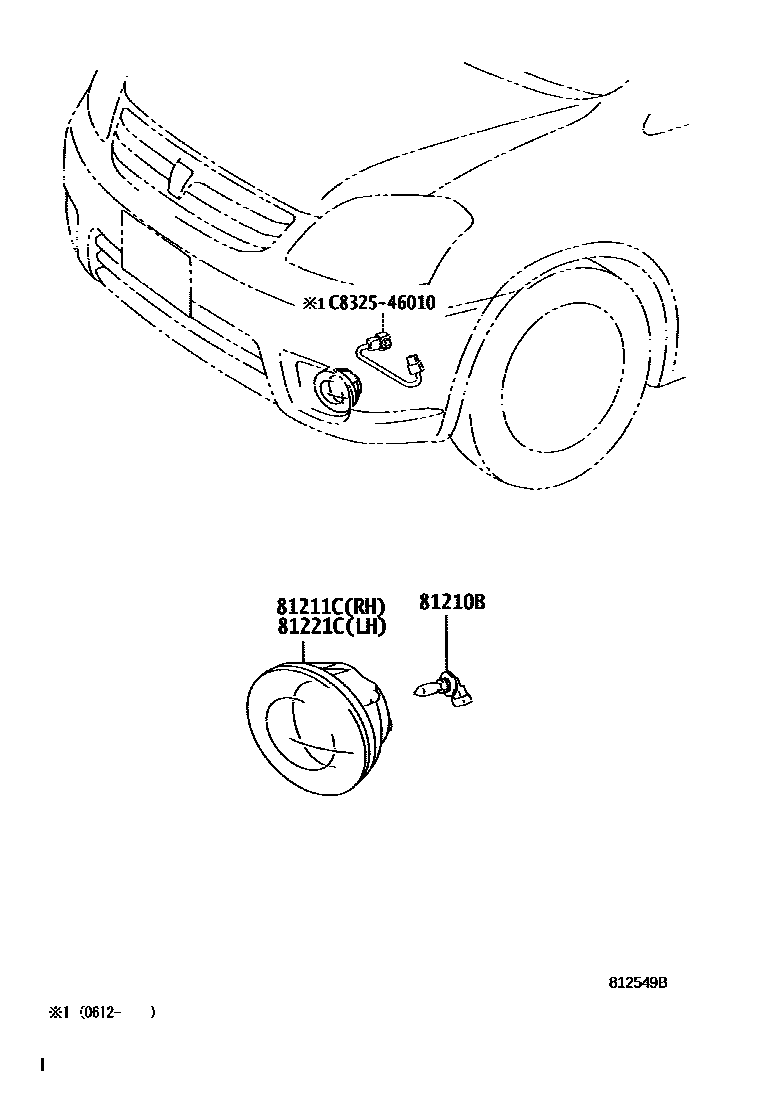

Parts diagram

81210BBULB, FOG LAMP

main90981-13047×2i200612

81211CLAMP UNIT, FOG LAMP, RH

main81211-52051i200612-200705

main81211-52050supersedes 81211-52053i200304-200505

81221CLAMP UNIT, FOG LAMP, LH

main81221-52051i200612-200705

main81221-52050supersedes 81221-52053i200304-200505

C832546010

mainC8325-46010

4 parts on this diagram · 1 diagram in section
