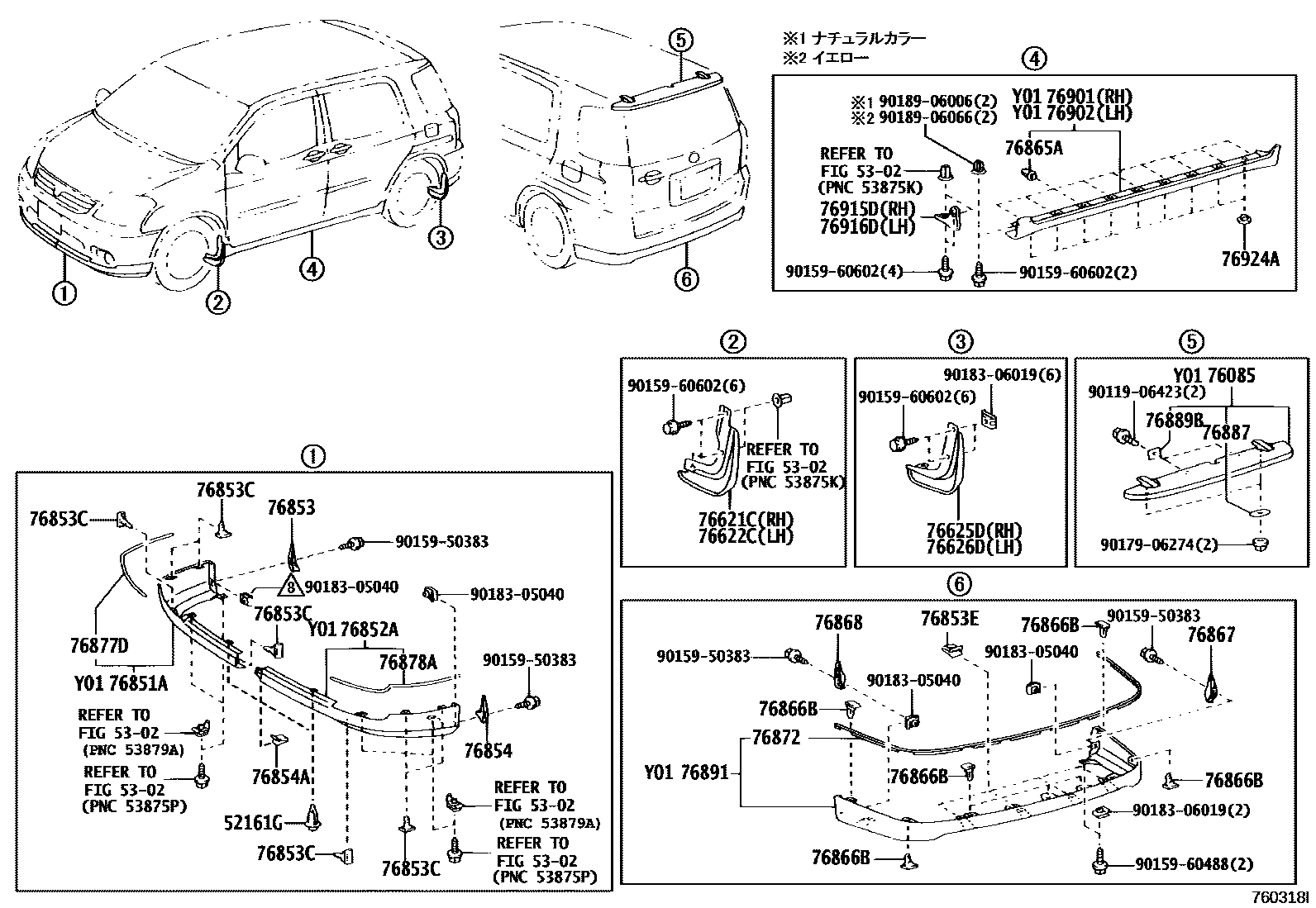

MUDGUARD & SPOILER

52161GPIECE, REAR BUMPER

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76085SPOILER SUB-ASSY, REAR

main76085-46030

76621CMUDGUAD, FRONT FENDER, RH

76622CMUDGUARD, FRONT FENDER, LH

76625DMUDGUARD, QUARTER PANEL, REAR RH

76626DMUDGUARD, QUARTER PANEL, REAR LH

76851ACOVER, FRONT SPOILER, RH

76852ACOVER, FRONT SPOILER, LH

76853RETAINER, FRONT SPOILER, UPPER RH

main76857-46010

main76854-44010

main76853-10010

main75392-35200

76853CRETAINER, FRONT SPOILER, NO.1

76853ERETAINER, REAR SPOILER, NO.1

76854RETAINER, FRONT SPOILER, UPPER LH

main76858-46010

main76854-44010

76854ARETAINER, FRONT SPOILER, NO.2

76865ARETAINER, SIDE MUDGUARD

76866BRETAINER, REAR SPOILER, NO.2

76867RETAINER, REAR SPOILER SIDE, RH

main76867-46010

76868RETAINER, REAR SPOILER SIDE, LH

main76868-46010

76872PROTECTOR, REAR SPOILER, NO.1

main76872-46010

76877DPROTECTOR, FRONT SPOILER SIDE, RH

76878APROTECTOR, FRONT SPOILER SIDE, LH

76887SEAL, REAR SPOILER

main76887-46010

76889BSEAL, REAR SPOILER, NO.1

76891SPOILER, REAR NO.1

main76891-46060

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-46020

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-46020

76915DMUDGUARD, SIDE, FRONT RH

76916DMUDGUARD, SIDE, FRONT LH

76924ARETAINER, SIDE MUDGUARD, NO.2

9011906423

main90119-06423

9015950383

main90159-50383

9015960488

main90159-60488

9015960602

main90159-60602

9017906274

main90179-06274

9018305040

main90183-05040

9018306019

main90183-06019

9018906006

main90189-06006

9018906066

main90189-06066

38 parts on this diagram · 1 diagram in section
