FRONT SEAT & SEAT TRACK

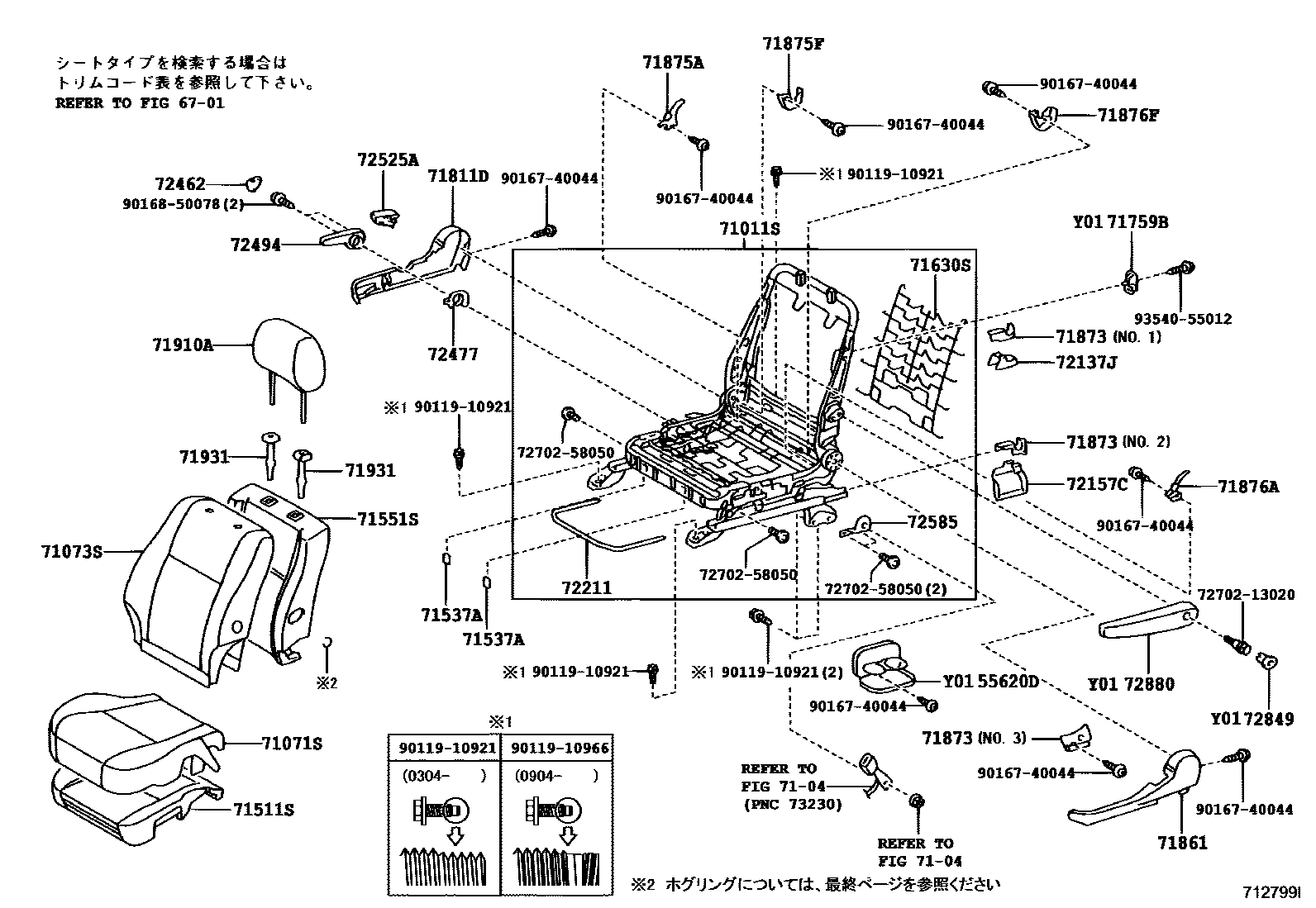

Parts diagram
55620DHOLDER ASSY, FRONT SEAT CUP
main55620-13020-B1i200304-201104
MD.GRAY,TRIM1#
main55620-13020-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
6701FRONT DOOR PANEL & GLASS
→ Go to FIG 67-01
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71110-46020supersedes 71110-46010i200304-200612
main71110-46040supersedes 71110-46030i200304-200612
main71110-46060supersedes 71110-46050i200612
main71110-46080i200812-201101
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-46140-B0i200304-200612
MEDIUM GRAY,TRIM1#
main71071-46140-E0i200304-200612
IVORY,TRIM4#
main71071-46180-E0i200612-201008
IVORY,TRIM4#
main71071-46181-E0i201008-201104
IVORY,TRIM4#
main71071-46150-B0i200304-200612
main71071-46160-E0i200304-200612
main71071-46170-B0i200404-200508
main71071-46190-B0i200612-201008
main71071-46191-B0i201008-201104
main71071-46200-E0i200612-201008
main71071-46201-E0i201008-201104
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-46180-B0i200304-200612
MEDIUM GRAY,TRIM1#
main71073-46180-E0i200304-200612
IVORY,TRIM4#
main71073-46280-E0i200612-201008
IVORY,TRIM4#
main71073-46190-B0i200304-200612
main71073-46200-E0i200304-200612
main71073-46210-E0i200304-200612
main71073-46220-B0i200304-200612
main71073-46220-E0i200304-200612
main71073-46230-B0i200304-200612
main71073-46240-E0i200304-200612
main71073-46250-B0i200304-200612
main71073-46250-E0i200304-200612
main71073-46260-B0i200404-200508
main71073-46290-E0i200612-201008
main71073-46291-E0i201008-201104
main71073-46310-B0i200612-201008
main71073-46311-B0i201008-201104
main71073-46330-E0i200612-201008
main71073-46331-E0i201008-201104
main71073-46340-E0i200612-201008
main71073-46341-E0i201008-201104
main71073-46360-E0i200812-201008
main71073-46361-E0i201101-201104
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-46030i200304-201104
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010×2i200304-200612
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-46040i200304-200612
main71551-46060i200612
main71551-46050i200304-200612
main71551-46070i200612
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71053-58010i200304-200612
71759BHOOK, FRONT SEATBACK
main71759-13020-E0i200304-200611
MD.NEUTRAL BONE,TRIM4#
main71759-28050-E2i200612-201104
MD.NEUTRAL BONE,TRIM4#
main71759-13020-B4i200611-200612
main71759-28050-B2i200612-201104
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-21030-B0i200304-201104
MD.GRAY,TRIM1#
main71811-21030-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-46030-B0i200304-201104
MD.GRAY,TRIM1#
main71861-46030-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-46020-B0supersedes 71874-46040-B0i200304-200311
main71873-46020-E0i200612-201104
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-52030-B2i200304-201104
MD.GRAY,TRIM1#
main71875-52030-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-58060-B2i200308
MD.GRAY,TRIM1#
main71875-58060i201101
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-52030-B2i200304-201104
MD.GRAY,TRIM1#
main71876-52030-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71876-58060-B2i200308
MD.GRAY,TRIM1#
main71876-58060i201101
71910AHEADREST ASSY, FRONT SEAT
main71910-46060-B1i200304-200309
main71910-46060-E1i200304-200612
main71910-46110-B0i200304-200309
main71910-46120-E0i200304-200612
main71910-46130-B0i200404-200508
main71910-46140-E0i200612-201008
main71910-46141-E0i201008-201104
main71910-46150-B0×2i200612-201104
main71910-46160-E0×2i200612-201104
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B1×2i200710-201104
main71930-44020-E1i200710-201104
main71930-47010-B8i200304-200309
main71930-47010-E1i200304-200612
main71931-47010-B8i200304-200612
main71931-47010-E1i200304-200612
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-46020-B0i200304-201104
main72137-46020-E0i200304-201104
72157CCOVER, SEAT TRACK BRACKET, INNER RH
main72157-46010-B0i200304-201104
MD.GRAY,TRIM1#
main72157-46010-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
main72157-46020-B0i200304-201104
main72157-46020-E0i200304-201104
72211HANDLE, SEAT TRACK ADJUSTING
main72212-46010i200304-200309
72462COVER, VERTICAL ADJUSTER RH
main72462-52010-E1i200304-200312
MD.NEUTRAL BONE,TRIM4#
main72462-60010-B0i200312-201104
MD.GRAY,TRIM1#
main72462-60010-E1i200312-201104
MD.NEUTRAL BONE,TRIM4#
72477SPACER, VERTICAL ADJUSTER
main72477-52010-B1i200304
MD.GRAY,TRIM1#
main72477-52010-E0i200304
MD.NEUTRAL BONE,TRIM4#
main72477-52010i200612
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-52010-B2i200304-200312
MD.GRAY,TRIM1#
main72494-52010-E1i200304-200312
MD.NEUTRAL BONE,TRIM4#
main72494-60020-B0i200312-201104
MD.GRAY,TRIM1#
main72494-60020-E1i200312-201104
MD.NEUTRAL BONE,TRIM4#
72525SCREW, FRONT SEATBACK HINGE
main72575-46020i200304-201103
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-58030-B2i200304-201104
MD.GRAY,TRIM1#
main72525-58030-E0i200304-201104
MD.NEUTRAL BONE,TRIM4#
72585BRACKET, SEAT BELT HANGER, RH
main72585-46010i200304
72849CAP, SEAT ARMREST, NO.2
main72849-13010-B1i200304-200612
main72849-13010-E0i200304-200612
main72849-46010-B0i200304-201104
main72849-46010-E0i200612-201104
72880ARMREST ASSY, SEAT, C RH
main72880-46030-B0i200304-200612
main72880-46040-E0i200304-200612
main72880-46060-B0i200612-201104
main72880-46070-E0i200612-201104
main72880-46100-E0i200812-201008
main72880-46101-E0i201008-201101
7270213020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-13020
7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-58050
9011910921
main90119-10921
9011910966
main90119-10966
9016740044
main90167-40044
9016850078
main90168-50078
9354055012
main93540-55012

38 parts on this diagram · 5 diagrams in section
