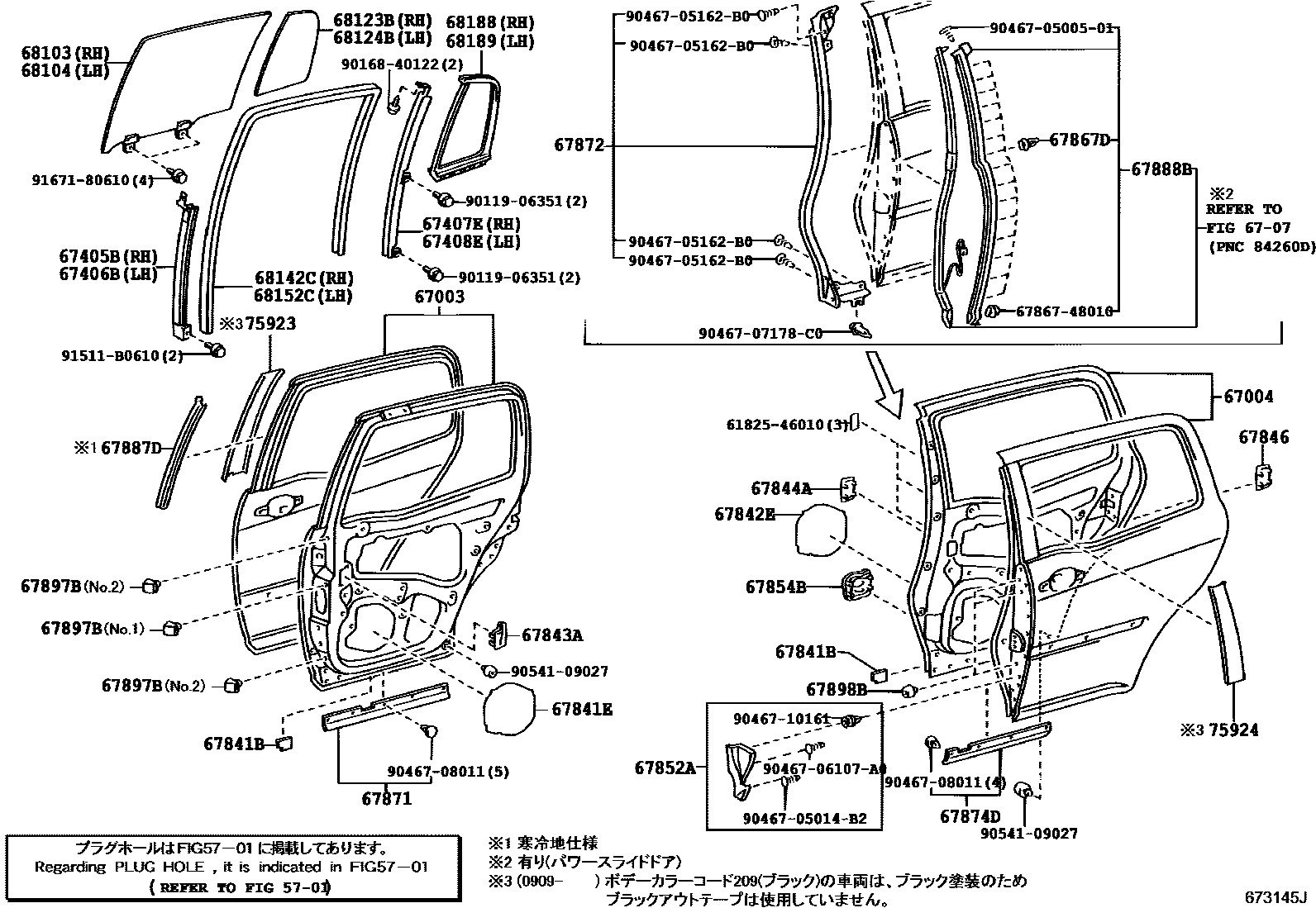

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

5701HOLE PLUG

→ Go to FIG 57-01

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-46020iNCZ2#200304-201104

main67003-46030iNCZ2#200304-200612

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-46030iNCZ2#200304-201104

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-46020iNCZ2#200304

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-46020iNCZ2#200304

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-46020iNCZ2#200304

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-46020iNCZ2#200304

67841BCOVER, REAR DOOR SERVICE HOLE

main67842-46030×2iNCZ2#200304

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-46020iNCZ2#200309

main67841-46030supersedes 67841-46020iNCZ2#200304

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-46020iNCZ2#200304-200612

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-46010iNCZ2#200309

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-46010iNCZ2#200309

67846SEAL, REAR DOOR SERVICE HOLE

main67846-46010iNCZ2#200304

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-46010iNCZ2#200304

67854BCOVER, SLIDE DOOR SERVICE HOLE, NO.3

main67854-46010iNCZ2#200309

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×15iNCZ2#200304-201104

67871WEATHERSTRIP, REAR DOOR, RH

main67871-46020iNCZ2#200304

67872WEATHERSTRIP, REAR DOOR, LH

main67872-46020iNCZ2#200304

67874DWEATHERSTRIP, ACCESS PANEL, REAR LH

main67874-46010iNCZ2#200304

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-46020iNCZ2#200304

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-46020iNCZ2#200304-201104

67897BCUSHION, REAR DOOR, RH

main67897-46010×2supersedes 67897-46030iNCZ2#200309-200409

main67897-46020supersedes 67897-46030iNCZ2#200309

67898BCUSHION, REAR DOOR, LH

main67898-46010×3iNCZ2#200309

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-46050supersedes 68103-46040iNCZ2#200304-201104

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-46050supersedes 68104-46040iNCZ2#200304-201104

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-46050supersedes 68123-46040iNCZ2#200304

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-46050supersedes 68124-46040iNCZ2#200304

68142CRUN, REAR DOOR GLASS, RH

main68142-46020iNCZ2#200304

68152CRUN, REAR DOOR GLASS, LH

main68152-46020iNCZ2#200304

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-46020iNCZ2#200304

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-46020iNCZ2#200304

75923TAPE, BLACK OUT, NO.2 RH

main75923-46010iNCZ2#200304-200909

75924TAPE, BLACK OUT, NO.2 LH

main75924-46010iNCZ2#200304-200909

6182546010PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-46010

6786748010CLIP, DOOR WEATHERSTRIP

main67867-48010

9011906351

main90119-06351

9016840122

main90168-40122

904670500501

main90467-0500501

9046705014B2

main90467-05014B2

9046705162B0

main90467-05162B0

9046706107A0

main90467-06107A0

9046707178C0

main90467-07178C0

9046708011

main90467-08011

9046710161

main90467-10161

9054109027

main90541-09027

91511B0610

main91511-B0610

9167180610

main91671-80610

48 parts on this diagram · 2 diagrams in section
