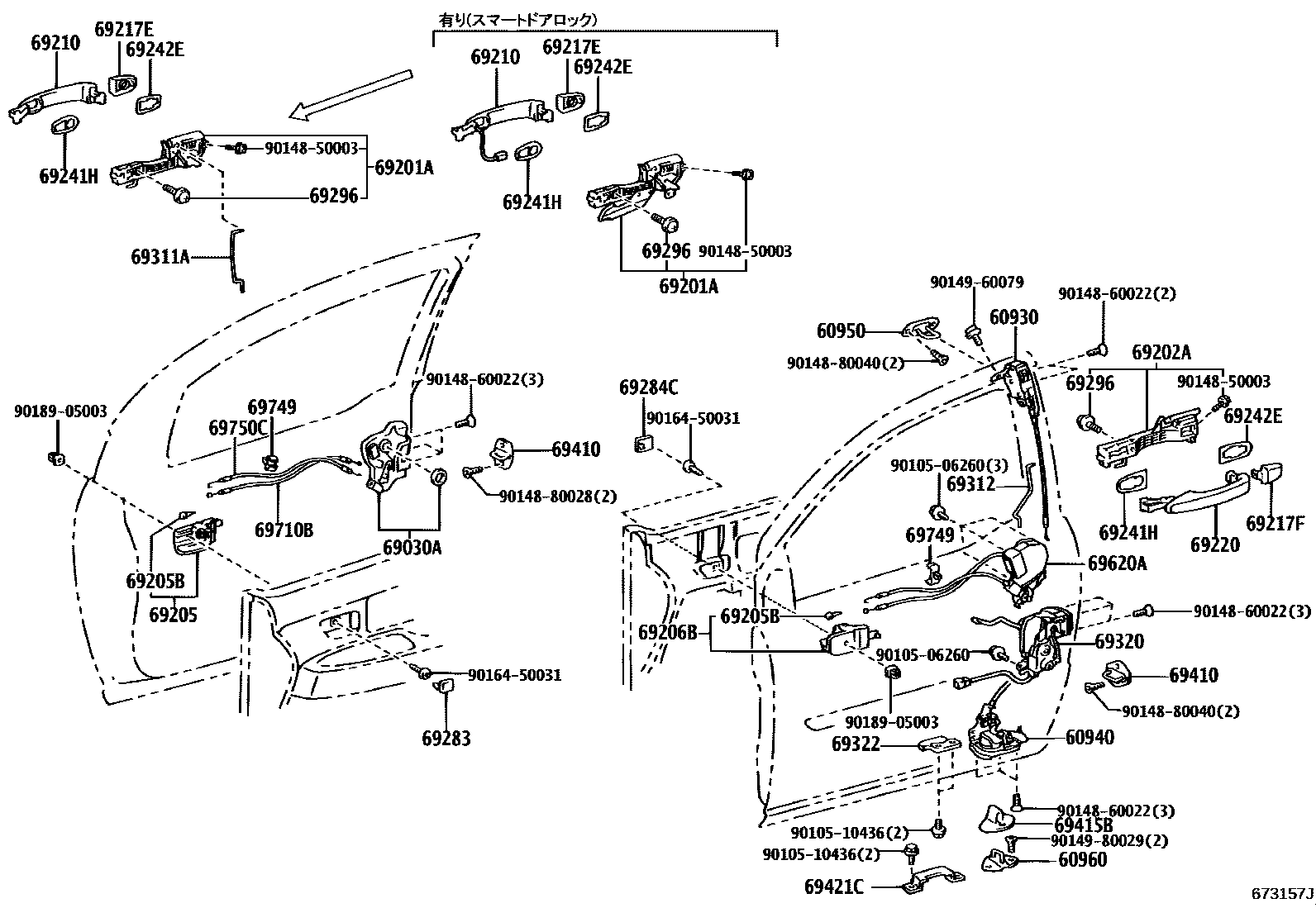

FRONT DOOR LOCK & HANDLE
60930LOCK ASSY, FRONT DOOR, UPPER LH
60940LOCK ASSY, FRONT DOOR, LOWER LH
60950STRIKER ASSY, FRONT DOOR UPPER LOCK
sub60950-46011
sub60950-46012
sub60950-46021
sub60950-46022
sub60950-46031
sub60950-46032
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69322STOP, FRONT DOOR LOWER LOCK
69415BCOVER, DOOR LOCK STRIKER, FRONT
69421CCATCH, DOOR LOCK STRIKER PLATE
69620ACONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
9010506260
main90105-06260
9010510436
main90105-10436
9014850003
main90148-50003
9014860022
main90148-60022
9014880028
main90148-80028
9014880040
main90148-80040
9014960079
main90149-60079
9014980029
main90149-80029
9016450031
main90164-50031
9018905003
main90189-05003
40 parts on this diagram · 1 diagram in section
