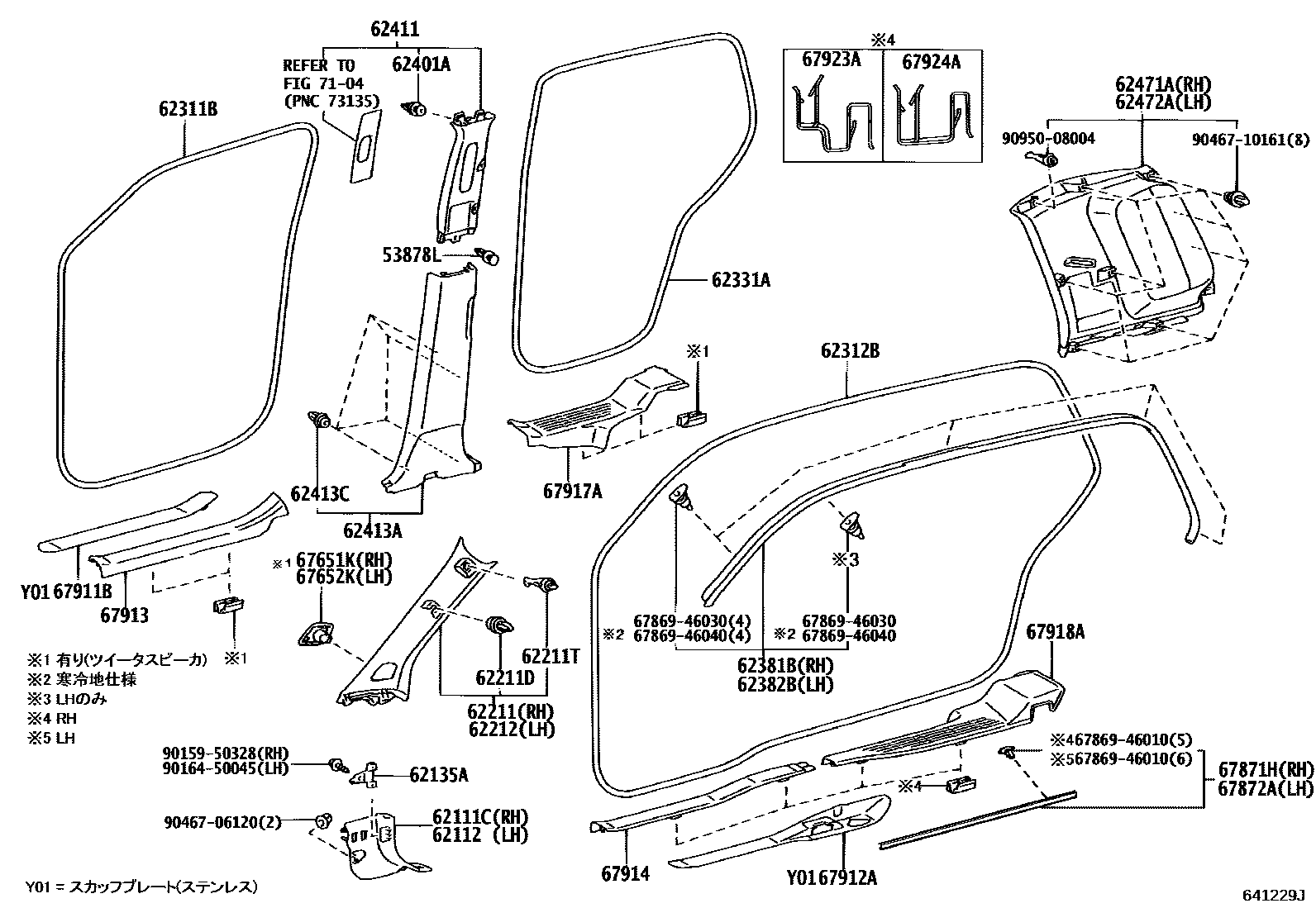

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

53878LSPACER, FRONT FENDER

main53878-52010iNCZ2#; NCZ20200304

62111CBOARD, COWL SIDE TRIM, RH

main62111-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main62111-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main62112-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

62135ARETAINER, COWL SIDE COVER

main62135-34040×2iNCZ2#200304

62211GARNISH, FRONT PILLAR, RH

main62211-46010-A0iNCZ2#200304-201104

IVORY,TRIM4#

main62211-46010-B0iNCZ2#200304-201104

LT.GRAY,TRIM1#

main62211-46020-A0iNCZ2#200304-200612

main62211-46020-B0iNCZ2#200304-200612

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10148×2iNCZ2#200304

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08004iNCZ2#200304

main90950-08005iNCZ2#200304

62212GARNISH, FRONT PILLAR, LH

main62212-46010-A0iNCZ2#200304-201104

IVORY,TRIM4#

main62212-46010-B0iNCZ2#200304-201104

LT.GRAY,TRIM1#

main62212-46020-A0iNCZ2#200304-200612

main62212-46020-B0iNCZ2#200304-200612

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main62311-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main62312-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main62331-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-46030supersedes 62381-46021iNCZ2#200304-200510

main62381-46031supersedes 62381-46021iNCZ2#200510

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-46030supersedes 62382-46021iNCZ2#200304-200510

main62382-46031supersedes 62382-46021iNCZ2#200510

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10148iNCZ2#; NCZ20200304

62411GARNISH, CENTER PILLAR, RH

main62411-46020-A0iNCZ2#; NCZ20200304-201104

main62411-46020-B0iNCZ2#; NCZ20200304-201104

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-46020-B0iNCZ2#; NCZ20200304-201104

main62413-46020-E0iNCZ2#; NCZ20200304-201104

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×4iNCZ2#; NCZ20200304

62471AGARNISH, ROOF SIDE, INNER RH

main62471-46030-A0iNCZ2#200304-201104

IVORY,TRIM4#

main62471-46030-B0iNCZ2#200304-201104

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-46030-A0iNCZ2#200304-201104

IVORY,TRIM4#

main62472-46030-B0iNCZ2#200304-201104

LT.GRAY,TRIM1#

67651KGRILLE, SPEAKER, RH

main67651-46010-A0iNCZ2#200304-200612

main67651-46010-B0iNCZ2#200612-201104

67652KGRILLE, SPEAKER, LH

main67652-46010-A0iNCZ2#200304-200612

main67652-46010-B0iNCZ2#200304-200612

67871HWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main75631-46010iNCZ2#200304-201104

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main75641-46010iNCZ2#200304-201104

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main67911-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main67912-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main67913-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main67914-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main67917-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main67918-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-46020×5iNCZ2#200304-201104

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-46020×3iNCZ2#200304-201104

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6786946010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-46010

6786946030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-46030

6786946040PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-46040

9015950328

main90159-50328

9016450045

main90164-50045

9046706120

main90467-06120

9046710161

main90467-10161

9095008004

main90950-08004

40 parts on this diagram · 1 diagram in section
