QUARTER WINDOW

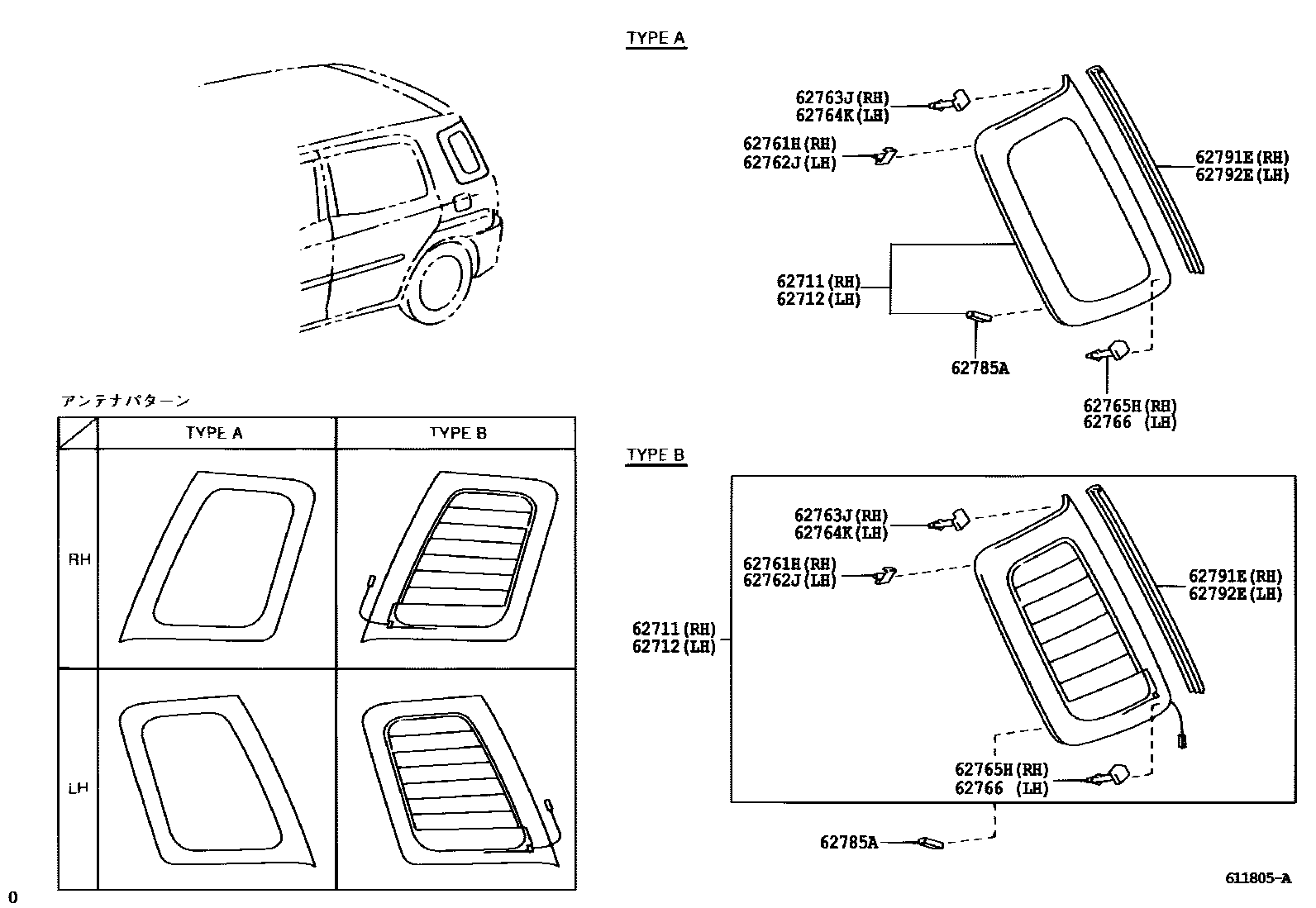

Parts diagram

62711GLASS, QUARTER WINDOW, RH

main62710-46050i200304-200612

main62710-46070i200304-200612

main62711-46080supersedes 62711-46060i200304

62712GLASS, QUARTER WINDOW, LH

main62712-46080supersedes 62712-46060i200304

main62720-46050i200612-201008

main62720-46070i200304-200612

62761HRETAINER, QUARTER WINDOW GLASS, FRONT

main62761-46010i200304

62762JRETAINER, QUARTER WINDOW GLASS, FRONT LH

main62762-46010i200304

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-46010i200304

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-46010i200304

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-46010i200304

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-46010i200304

62785ASPACER, QUARTER WINDOW GLASS

main62785-60030×2i200304

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62791-46010i200304

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62792-46010i200304

11 parts on this diagram · 1 diagram in section
