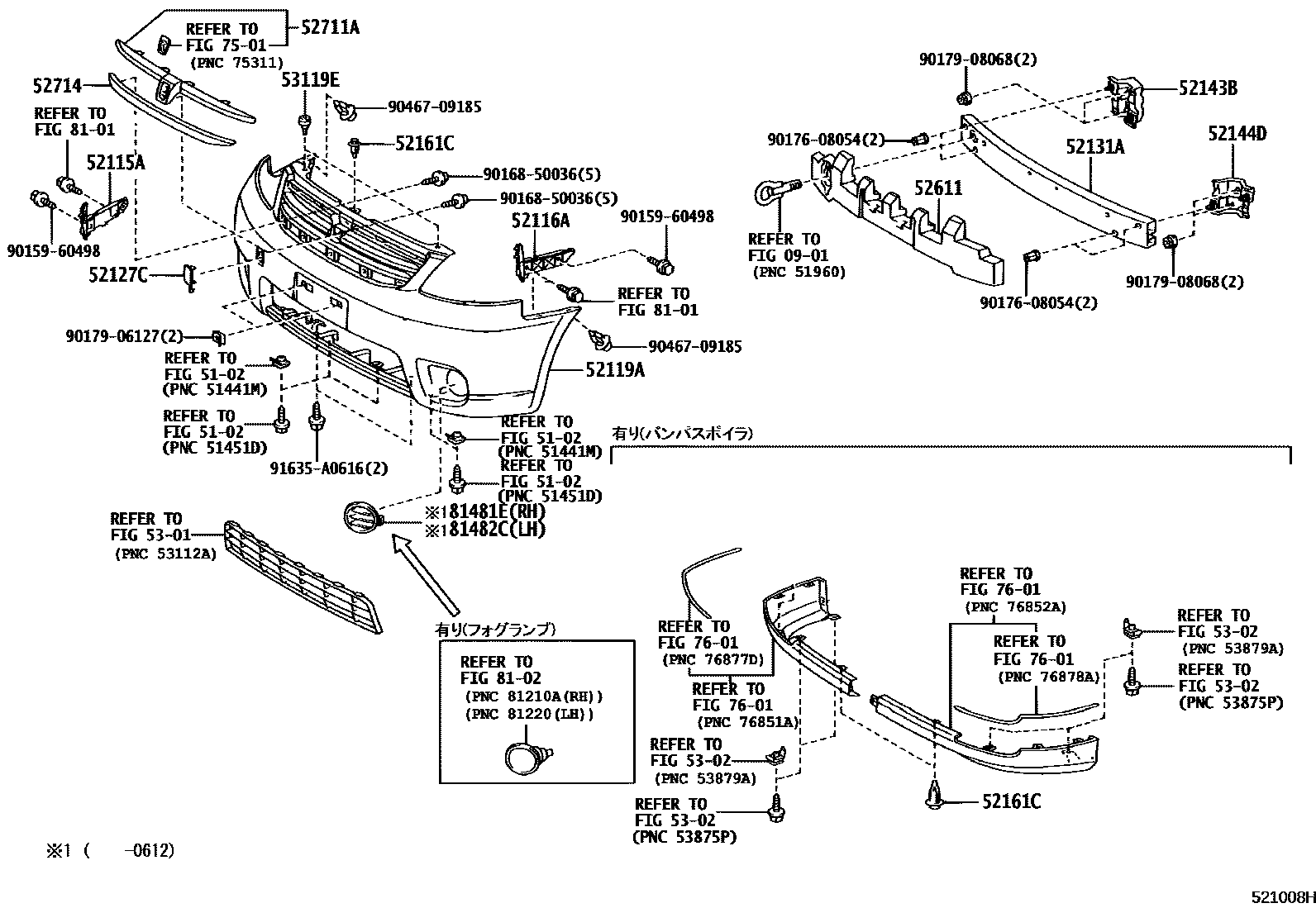

FRONT BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-46030iNCZ2#200304-201104

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-46030iNCZ2#200304

52119ACOVER, FRONT BUMPER

main52119-46090-C0iNCZ2#200812-201104

BLACK MC.,209

main52119-46090-A1iNCZ2#200404-200508

main52119-46110-A0supersedes 52119-46090-A0iNCZ2#200304-201104

main52119-46110-A2supersedes 52119-46090-A2iNCZ2#200612-201104

main52119-46110-B0supersedes 52119-46090-B0iNCZ2#200304-201104

main52119-46110-B1supersedes 52119-46090-B1iNCZ2#200612-201104

main52119-46110-D1supersedes 52119-46090-D1iNCZ2#200304-201104

main52119-46110-E0supersedes 52119-46090-E0iNCZ2#200612-201101

main52119-46110-F0supersedes 52119-46090-F0iNCZ2#200304-201104

main52119-46110-G0supersedes 52119-46090-G0iNCZ2#200304-201104

main52119-46110-J0supersedes 52119-46090-J0iNCZ2#200304-201104

main52119-46110-J1supersedes 52119-46090-J1iNCZ2#200304-201104

52127CCOVER, FRONT BUMPER HOLE

main52127-46010-A0iNCZ2#200304-201104

SUPER WHITE 2,040

main52127-46010-A2iNCZ2#200612-201104

WHITE PEARL CS.,070

main52127-46010-B0iNCZ2#200304-201104

SILVER ME.GR.,1D9

main52127-46010-B1iNCZ2#200612-201104

SILVER ME.,1F7

main52127-46010-C0iNCZ2#200812-201104

BLACK MC.,209

main52127-46010-D1iNCZ2#200304-201104

SUPER RED 5,3P0

main52127-46010-E0iNCZ2#200612-201101

PALE ORANGE MICA METALLIC,4S3

main52127-46010-F0iNCZ2#200304-201104

CREAM PM.,594

main52127-46010-G0iNCZ2#200304-201104

LT.GREEN M.M.,6T4

main52127-46010-J0iNCZ2#200304-201104

DK.BLUE MC.,8N8

main52127-46010-J1iNCZ2#200304-201104

LT.BLUE M.M.,8R2

main52127-46010-A1iNCZ2#200404-200508

52131AREINFORCEMENT, FRONT BUMPER

main52131-46020iNCZ2#200304-201104

52143BBRACKET, FRONT BUMPER SIDE

main52143-46010iNCZ2#200304-201104

52144DBRACKET, FRONT BUMPER SIDE, LH

main52144-46020iNCZ2#200304-201104

52161CPIECE, FRONT BUMPER

main52161-16010iNCZ2#200304

52611ABSORBER, FRONT BUMPER ENERGY

main52611-46010iNCZ2#200304

52711AGARNISH, FRONT BUMPER

main52711-46010iNCZ2#200304-200612

main52711-46020iNCZ2#200612-201104

52714PLUG, FRONT BUMPER MOULDING, LH

main52714-46010iNCZ2#200304-201104

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53119EPROTECTOR, RADIATOR GRILLE

main53119-12150×2iNCZ2#200304

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main81481-52040iNCZ2#200304-200612

81482CCOVER, FOG LAMP, LH

main81482-52020iNCZ2#200304-200612

9015960498

main90159-60498

9016850036

main90168-50036

9017608054

main90176-08054

9017906127

main90179-06127

9017908068

main90179-08068

9046709185

main90467-09185

91635A0616

main91635-A0616

29 parts on this diagram · 1 diagram in section
