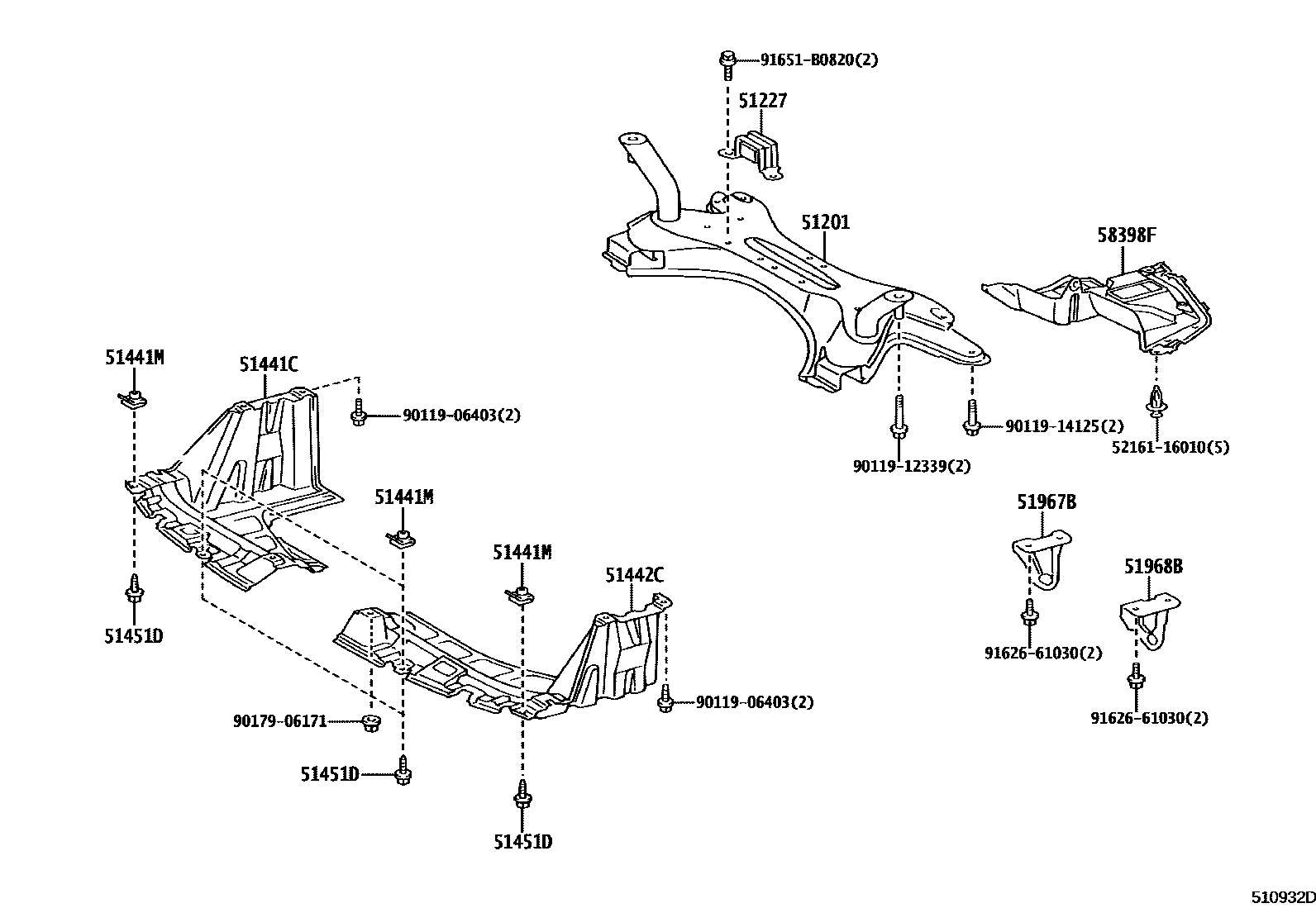

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52011iNCZ20200304-200305

main51201-52014iNCZ20200305

main51201-52021iNCZ25200304-200305

main51201-52023iNCZ25200305

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-46010iNCZ20200304

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNCZ2#200304

51441MNUT

main90179-05060×4iNCZ2#200304-201104

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCZ2#200304

51451DSCREW, NO.1

main90159-50346×4iNCZ2#200304-201104

51967BHOOK, TRANSPORT, REAR RH

main51967-10090iNCZ20200304-201104

main51967-10100iNCZ25200304-201104

51968BHOOK, TRANSPORT, REAR LH

main51967-10100iNCZ25200304-201104

main51967-48010supersedes 51967-10090iNCZ20200304-201104

58398FCOVER, FLOOR UNDER, NO.1

main57629-46010iNCZ20200304

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011906403

main90119-06403

9011912339

main90119-12339

9011914125

main90119-14125

9017906171

main90179-06171

9162661030

main91626-61030

91651B0820

main91651-B0820

16 parts on this diagram · 2 diagrams in section
