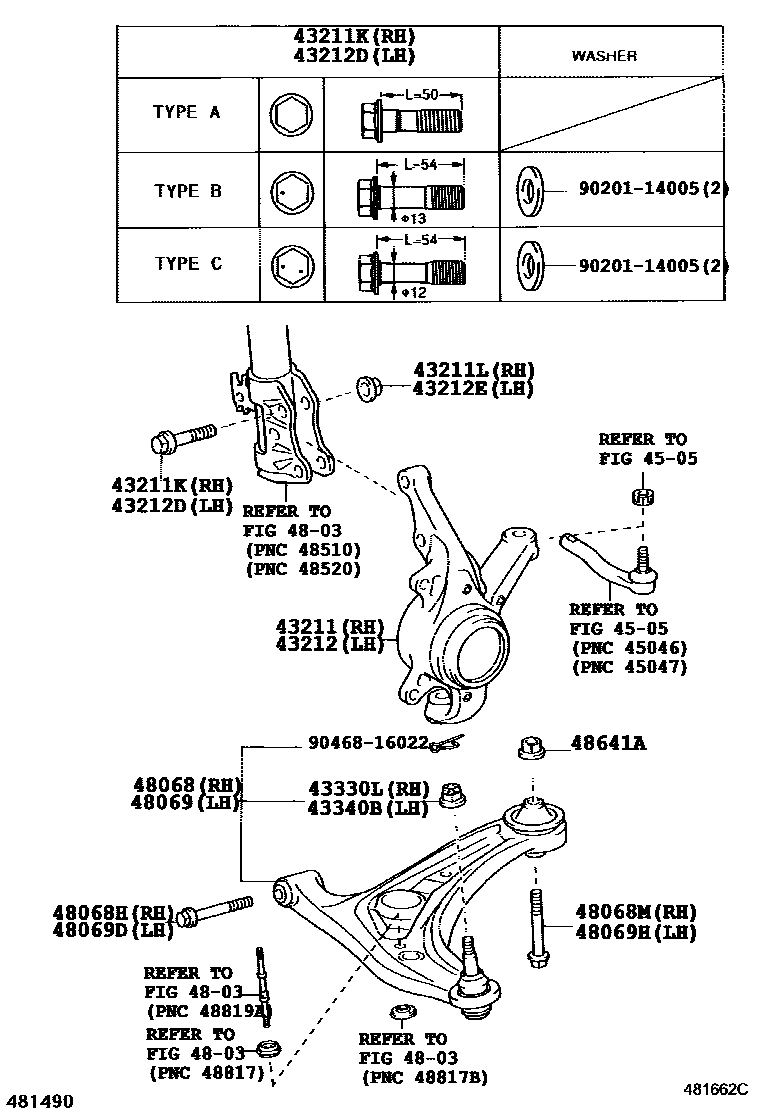

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52020iNCZ20200304-201104

main43211-52030iNCZ25200304-201104

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140×2iNCZ2#200304-201104

main90105-14146iNCZ2#200304-201104

main90105-14147iNCZ2#200304-201104

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062×2iNCZ2#200304-201104

43212KNUCKLE, STEERING, LH

main43212-52020iNCZ20200304

main43212-52030iNCZ25200304

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140×2iNCZ2#200304-201104

main90105-14146iNCZ2#200304-201104

main90105-14147iNCZ2#200304-201104

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062×2iNCZ2#200304-201104

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNCZ2#200304

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNCZ2#200304

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59035iNCZ2#200304-200305

main48068-59055iNCZ2#200305

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-12338iNCZ2#200304-200305

main90119-14086iNCZ2#200305-201104

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-12337iNCZ2#200304

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59035iNCZ2#200304-200305

main48069-59055iNCZ2#200305

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-12338iNCZ2#200304-200305

main90119-14086iNCZ2#200305-201104

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-12337iNCZ2#200304

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-12009×2iNCZ2#200304

9020114005

main90201-14005

9046816022

main90468-16022

19 parts on this diagram · 1 diagram in section
