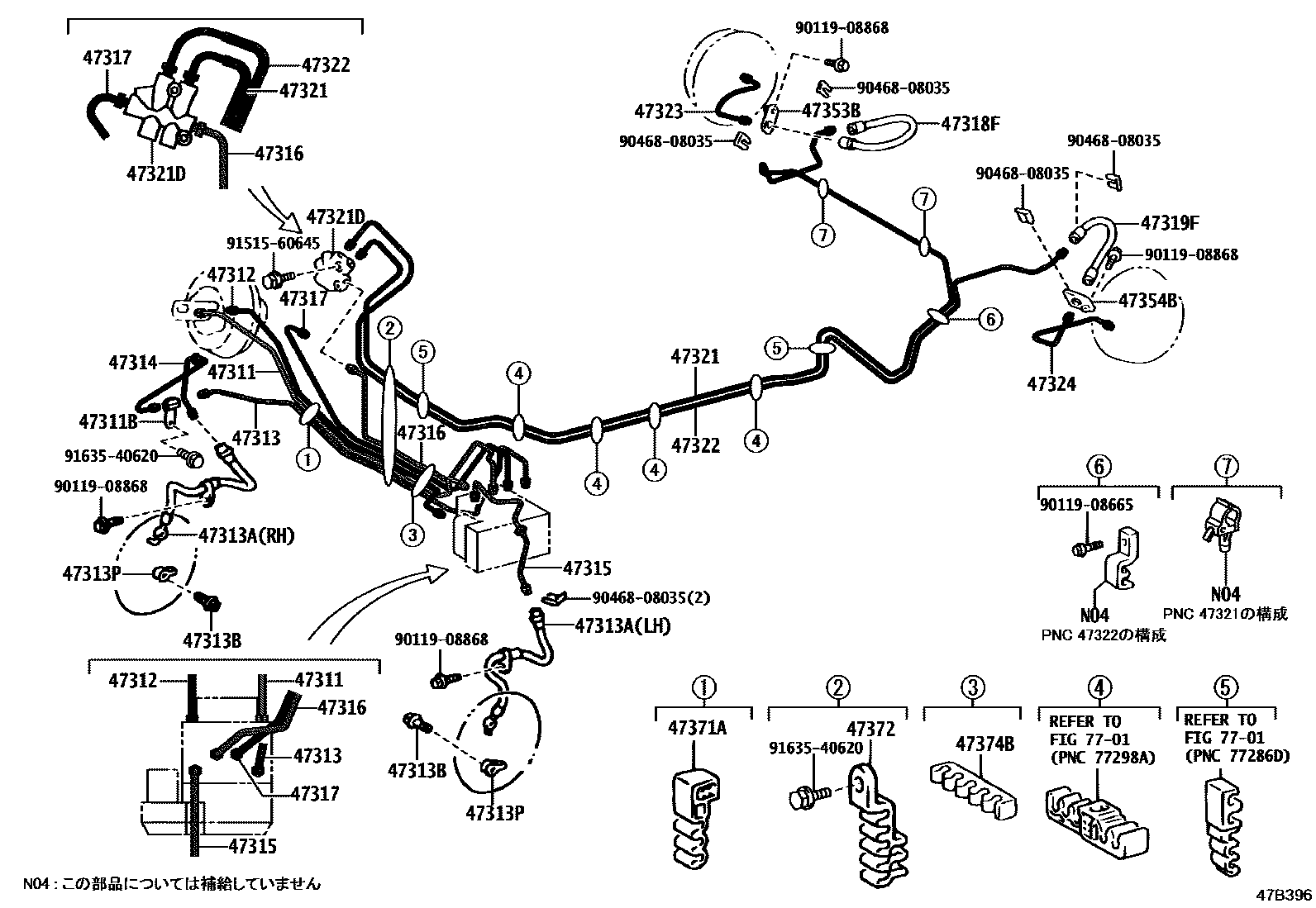

BRAKE TUBE & CLAMP

0001 1 0002 1��(VSC) 0003 1 0004 1 0005 1 0006 1 0008 1��(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-46040iNCZ25200612

main47311-52091iNCZ25200304-200612

main47311-52140supersedes 47311-46040iNCZ20200304

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10235iNCZ2#200304

47312TUBE, FRONT BRAKE, NO.2

main47312-46040iNCZ25200612

main47312-52091iNCZ25200304-200612

main47312-52120supersedes 47312-46040iNCZ20200304

47313TUBE, FRONT BRAKE, NO.3

main47313-52041iNCZ25200304-200612

main47313-52100iNCZ25200612

main47313-52070supersedes 47313-52100iNCZ20200304

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D76iNCZ20200304

main90947-02D77iNCZ20200304

main90947-02D78iNCZ25200304

main90947-02D79iNCZ25200304

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNCZ2#200304

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNCZ2#200304

47314TUBE, FRONT BRAKE, NO.4

main47314-52011iNCZ2#200304

47315TUBE, FRONT BRAKE, NO.5

main47315-52051iNCZ25200304-200612

main47315-52110iNCZ25200612

main47315-52070supersedes 47315-52110iNCZ20200304-200404

main47315-52071supersedes 47315-52110iNCZ20200405

47316TUBE, FRONT BRAKE, NO.6

main47316-52031iNCZ25200304-200612

main47316-52090iNCZ25200612

main47316-52050supersedes 47316-52090iNCZ20200304

47317TUBE, FRONT BRAKE, NO.7

main47317-52031iNCZ25200304-200612

main47317-52090iNCZ25200612

main47317-52050supersedes 47317-52090iNCZ20200304

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C30iNCZ20200304-201104

main90947-02C37iNCZ25201009-201104

main90947-02D74iNCZ25200304-201008

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C30iNCZ20200304-201104

main90947-02C38iNCZ25201009-201104

main90947-02D75iNCZ25200304-201008

47321TUBE, REAR BRAKE, NO.1

main47321-52031iNCZ25200304

main47321-52042iNCZ20200304

main47321-46050iNCZ20200508

main47321-52190iNCZ20200304-200508

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iNCZ2#200304

47322TUBE, REAR BRAKE, NO.2

main47322-52031iNCZ25200304-201104

main47322-52042iNCZ20200304-201104

main47322-46050iNCZ20200508-201104

main47322-52110iNCZ20200304-200508

47323TUBE, REAR BRAKE, NO.3

main47323-52031iNCZ25200304

main47323-52090iNCZ20200304

47324TUBE, REAR BRAKE, NO.4

main47324-52031iNCZ25200304

main47324-52080iNCZ20200304

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-52010iNCZ20200304

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-52010iNCZ20200304

47371ACLAMP, BRAKE TUBE, NO.1

main47371-52010iNCZ2#200304

47372CLAMP, BRAKE TUBE, NO.2

main47372-52010iNCZ2#200304

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01A18iNCZ2#; NCZ20200304
