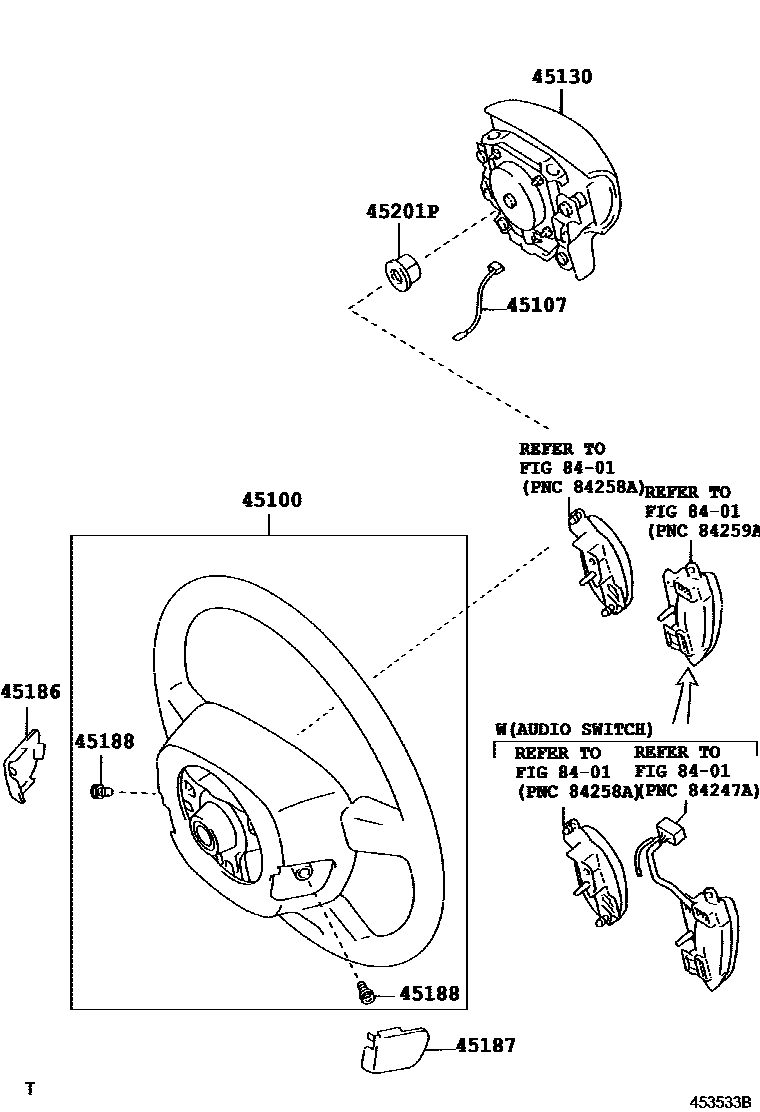

STEERING WHEEL

0001 14-SPOKE 0002 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-46020-B0supersedes 45100-46010-B0iNCZ2#200304-201104

main45100-46020-E0supersedes 45100-46010-E0iNCZ2#200304-201104

45107WIRE SUB-ASSY, HORN BUTTON

main45107-46010iNCZ2#200304

45130BUTTON ASSY, HORN

main45130-46030-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main45130-46030-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-46010-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main45186-46010-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-46010-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main45187-46010-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iNCZ2#200304

45201PNUT, STEERING WHEEL SET

main90179-12071iNCZ2#200304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8 parts on this diagram · 2 diagrams in section
