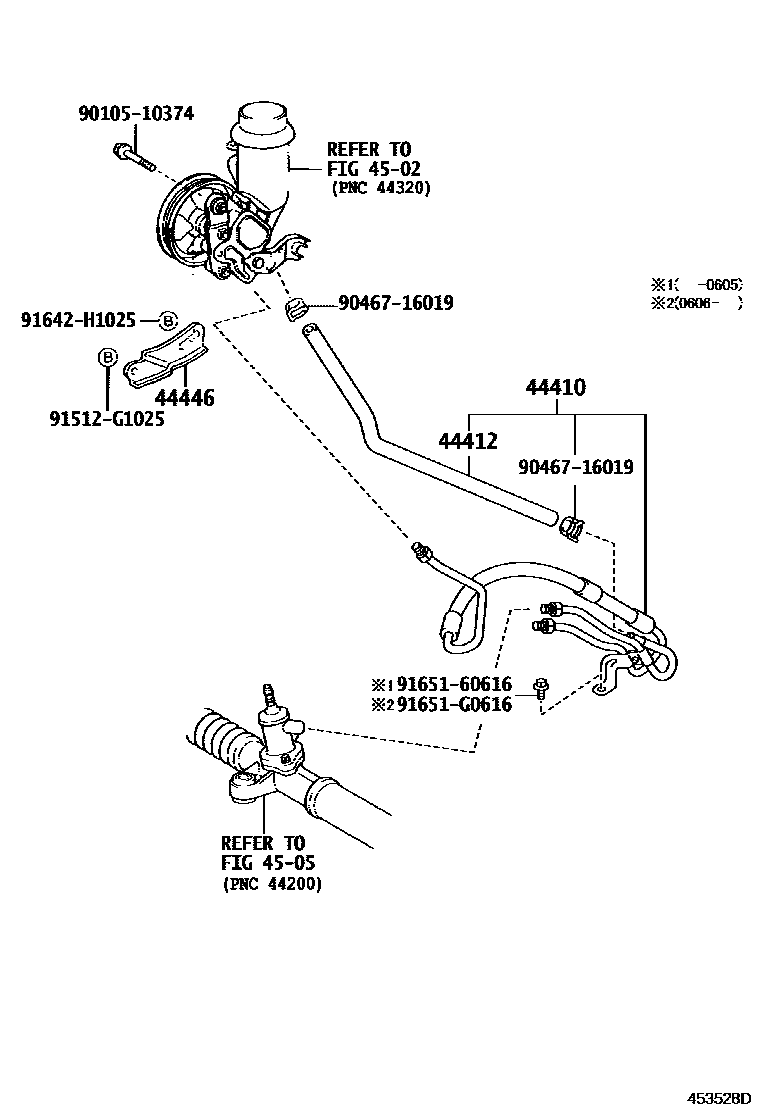

POWER STEERING TUBE

0001 1 0002 1

44410TUBE ASSY, PRESSURE FEED

main44410-52030iNCZ20200304-201104

main44410-52050iNCZ25200304-201104

44412HOSE, RETURN

main44412-52010iNCZ20200304-201104

main44412-52040iNCZ25200304-201104

44446STRUT, ADJUSTING

main44446-52010iNCZ2#200304

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510374

main90105-10374

9046716019

main90467-16019

91512G1025

main91512-G1025

91642H1025

main91642-H1025

9165160616

main91651-60616

91651G0616

main91651-G0616

11 parts on this diagram · 2 diagrams in section
