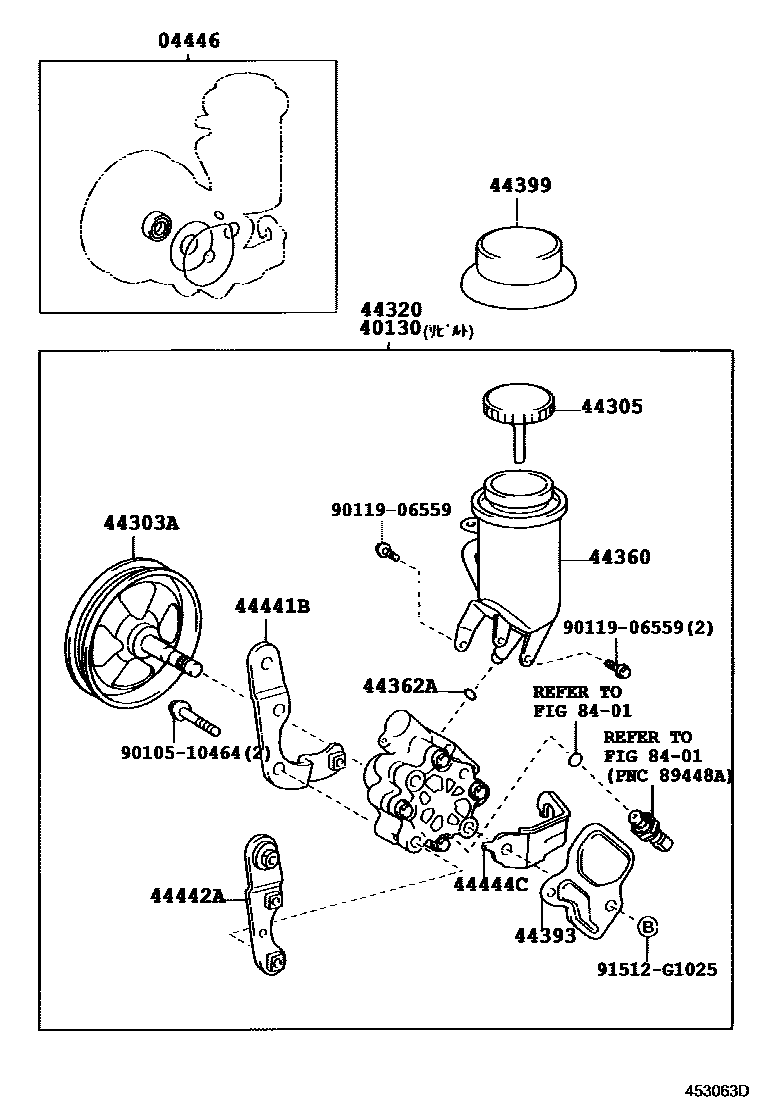

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iNCZ2#200304-201104

40130PUMP ASSY,VANE REBUILT

main40130-52050iNCZ20200304-201104

main40130-52060iNCZ25200304-201104

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-52020iNCZ2#200304

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-50010iNCZ2#200304-200802

main44305-50020iNCZ2#200803

44320PUMP ASSY, VANE

main44310-52050iNCZ20200304-201104

main44310-52060iNCZ25200304-201104

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-52020iNCZ2#200304

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-11020iNCZ2#200304

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-52010iNCZ2#200304-200706

main44393-52040iNCZ2#200707

44399COVER, VANE PUMP OIL RESERVOIR

main44399-52010iNCZ2#200304

44441BBRACKET, PUMP, FRONT

main44441-52010iNCZ2#200304

44442ABRACKET, VANE PUMP, REAR

main44442-52020iNCZ2#200304

44444CSTAY, VANE PUMP, REAR

main44444-52010iNCZ20200304

main44444-52020iNCZ25200304

8401

9010510464

main90105-10464

9011906559

main90119-06559

91512G1025

main91512-G1025

16 parts on this diagram · 1 diagram in section
