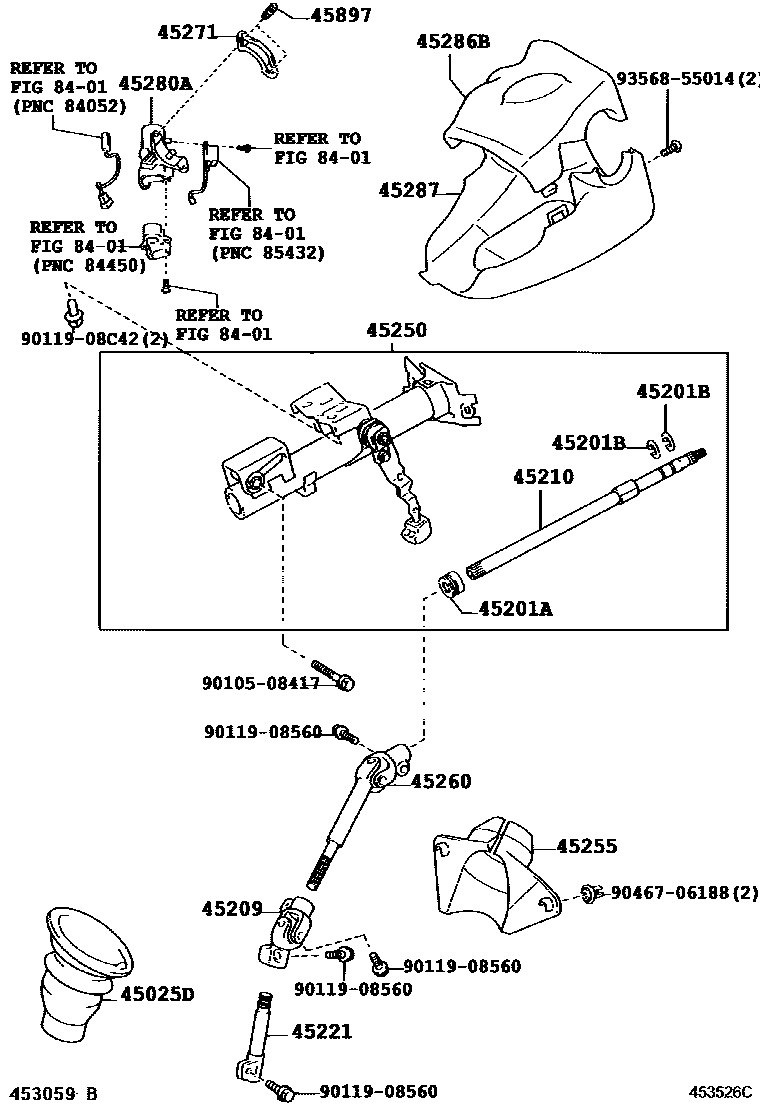

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52011iNCZ20200304

main45025-52050iNCZ25200304

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-28010iNCZ2#200304

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNCZ2#200304

main90520-17269iNCZ2#200304

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52020iNCZ2#200304

45210SHAFT ASSY, STEERING MAIN

main45210-28130iNCZ2#200304

45221SHAFT, STEERING INTERMEDIATE

main45297-52010iNCZ20200304

45250COLUMN ASSY, STEERING

main45250-58010iNCZ2#200304

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52010iNCZ20200304

main45255-52030iNCZ25200304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52010iNCZ20200304

main45260-52020iNCZ25200304

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCZ2#200304

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-58010iNCZ2#200304-201104

45286BCOVER, STEERING COLUMN, UPR

main45286-46020-B0iNCZ2#200304-201104

MD. GRAY,TRIM1#

main45286-46020-E0iNCZ2#200304-201104

MD. NEUTRAL BONE,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-46030-B0iNCZ2#200304-201104

MD. GRAY,TRIM1#

main45287-46030-E0iNCZ2#200304-201104

MD. NEUTRAL BONE,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iNCZ2#200304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508417

main90105-08417

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
