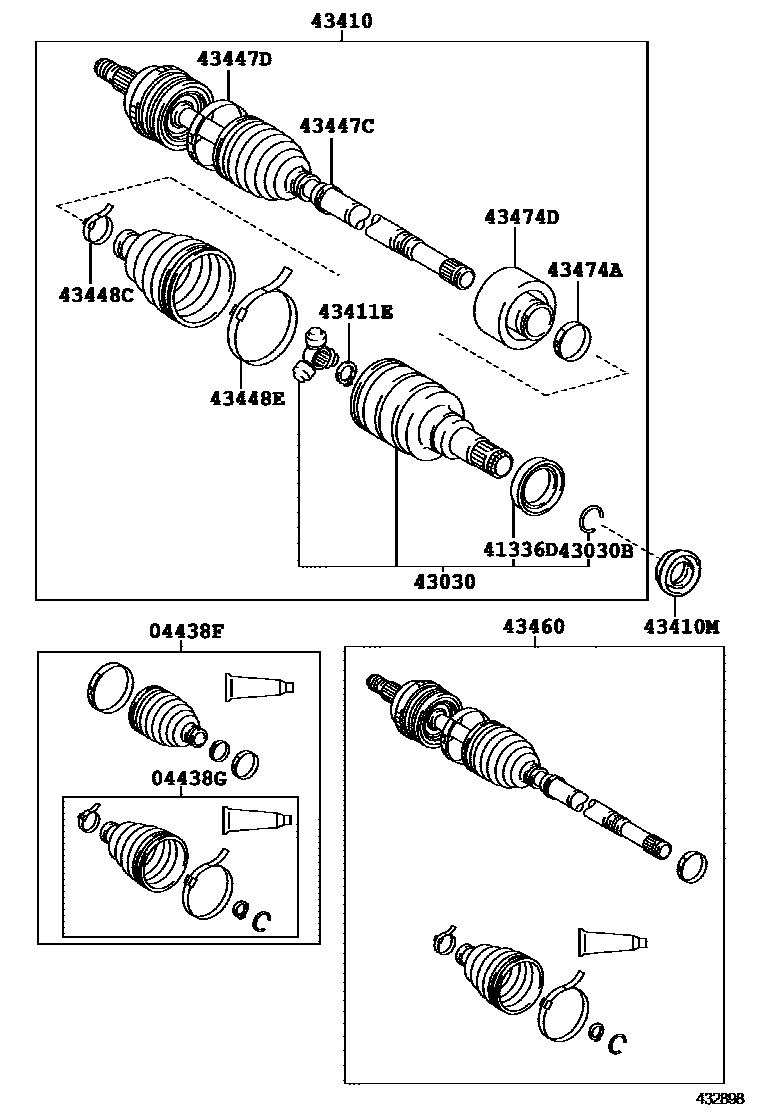

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1��� 0004 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52010iNCZ25200312-200505

sub04427-52310

main04427-52260iNCZ20200505-200603

sub04427-52580

main04427-52310iNCZ25200505-200603

sub04427-52540

main04427-52531iNCZ25200909-200910

sub04427-52870

main04427-52540iNCZ25200604-200909

sub04427-52542

main04427-52580iNCZ20200604-200909

sub04427-52671

main04427-52671iNCZ20200909-200910

sub04427-52890

main04427-52870iNCZ25200911-201003

sub04427-52871

main04427-52871iNCZ25201003

sub04427-52872

main04427-52890iNCZ20200911-201002

sub04427-52891

main04427-52891iNCZ20201003

sub04427-52897

main04438-12502iNCZ20200304-200505

sub04427-52580

main04438-52080iNCZ25200304-200312

sub04427-52540

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52190iNCZ20200304-200909

sub04437-52191

main04437-52191iNCZ20200909

main04437-52441iNCZ25200909

main04438-52230iNCZ25200304-200909

sub04437-12400

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCZ20200304

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-52010iNCZ25200304

main43403-10011iNCZ20200304

sub43403-0W031

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iNCZ20200304

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52030iNCZ25200304-200312

sub43410-52031

main43410-52031iNCZ25200312-201104

main43410-52070iNCZ20200304-201104

sub43410-52071

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCZ20200304-200507

main90311-34031iNCZ20200507-201104

sub90311-34045

main90316-28003iNCZ25200304-201104

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCZ20200304

sub90520-22029

main90520-22005iNCZ25200304

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52110iNCZ2#200304

sub42345-52260

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100iNCZ2#200304

sub42345-52250

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCZ2#200304

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iNCZ25200304

main90949-01146iNCZ20200304

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59045iNCZ20200304-200312

sub43460-59365

main43460-59076iNCZ25200304-200312

sub43460-59485

main43460-59165iNCZ20200312-200505

sub43460-59365

main43460-59185iNCZ25200312-200505

sub43460-59485

main43460-59365iNCZ20200505-200909

sub43460-59366

main43460-59366iNCZ20200909

sub43460-59367

main43460-59397iNCZ25200909

sub43460-59398

main43460-59485iNCZ25200505-200909

sub43460-59397

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNCZ20200304

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCZ20200304

main43474-52050iNCZ25200312

sub43474-52120

15 parts on this diagram · 4 diagrams in section
